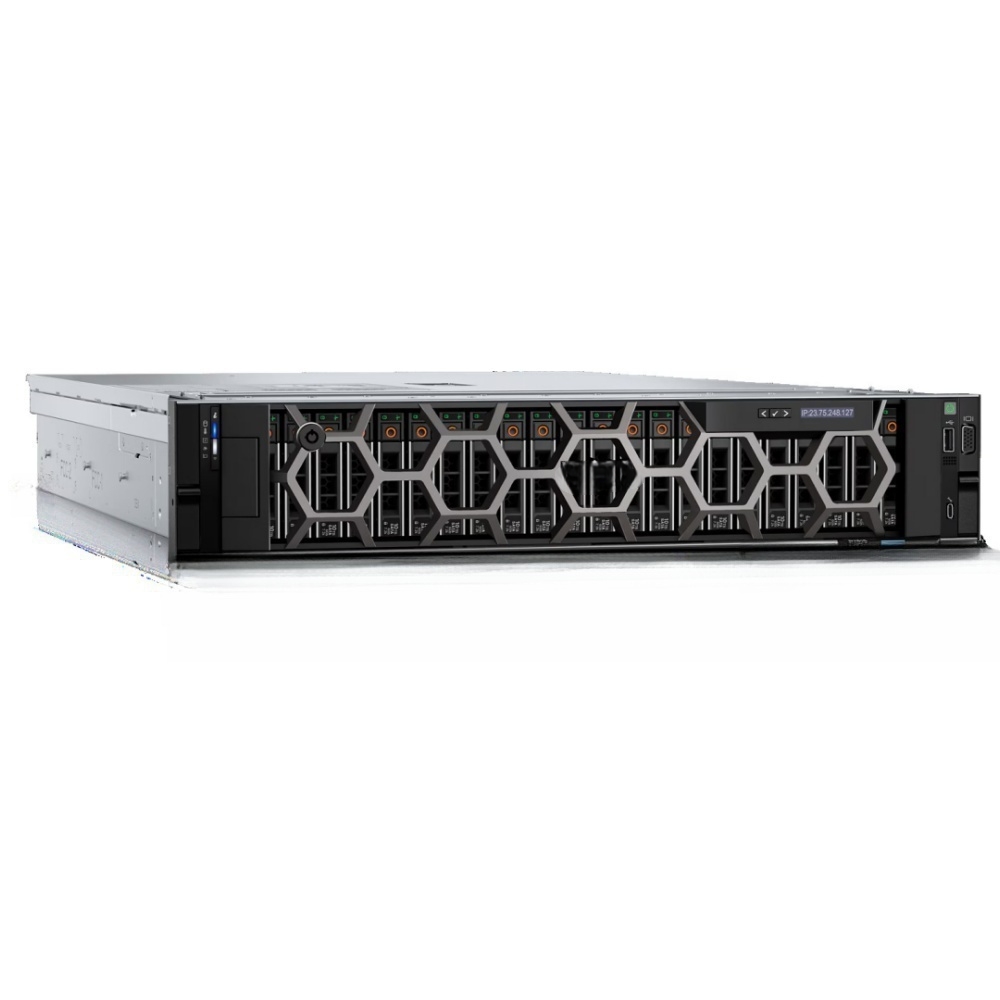

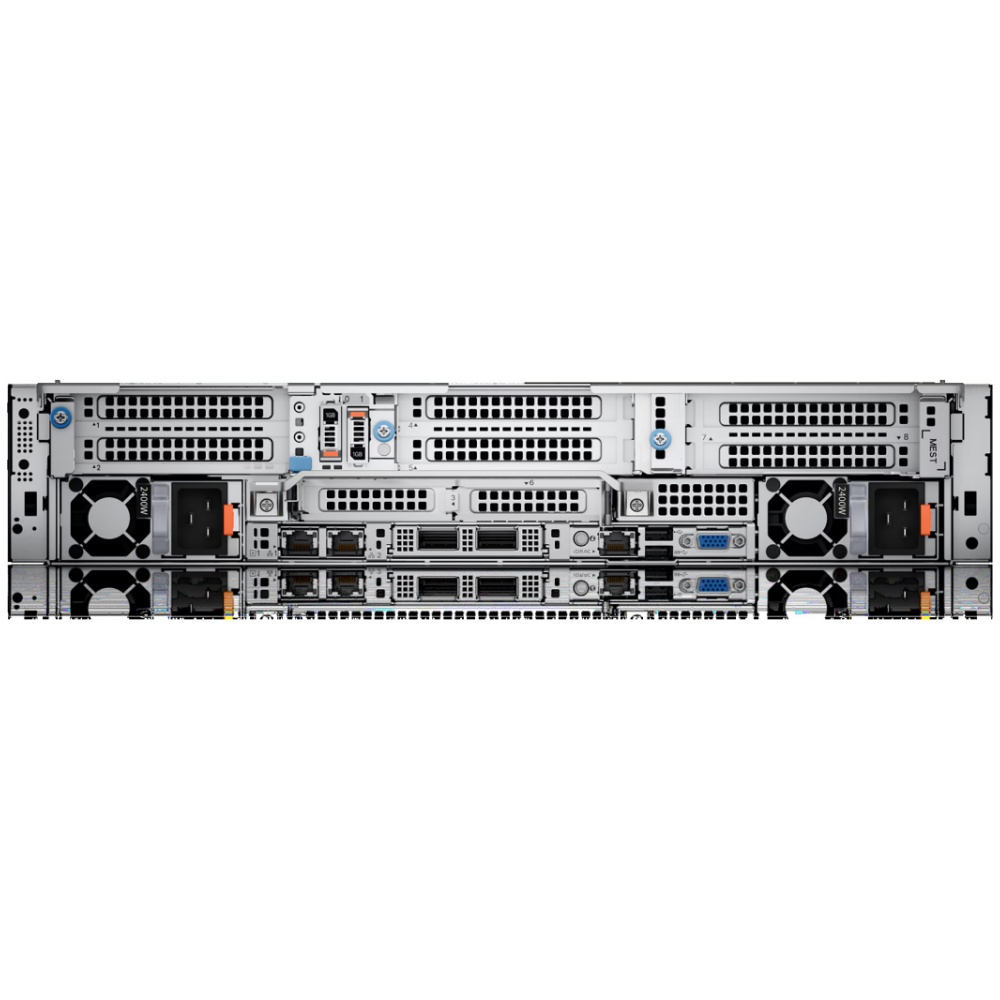

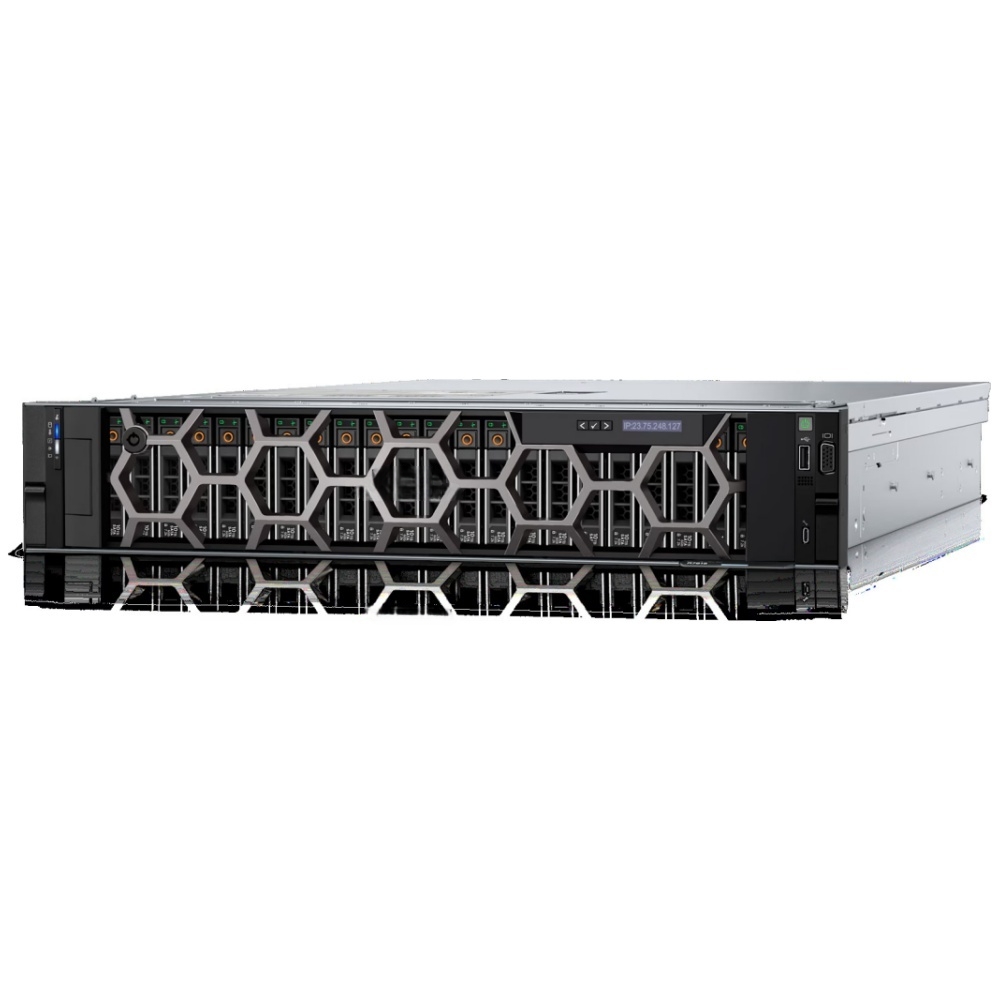

PowerEdge R7615
The new Dell PowerEdge R7615 is a 2U, single-socket rack server. Designed to be the best investment per dollar for
your data center, this server provides performance and flexible, low-latency storage options in an air or Direct Liquid
Cooling (DLC) configuration.
Stay ahead of the curve
Delivering breakthrough innovation for traditional and emerging workloads, including software-defined storage, data
analytics,and virtualization using the latest performance and density with optional acceleration.
Invest wisely in a platform that grows with your business
• Using AMD EPYC 4th generation processor to deliver up to 50% more core count per single socket platform in an
innovative air-cooled chassis.
• Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access
and transport of data optimizing application output.
• Optional DLC is available to more efficiently cool high-performance processors.
Experience more virtual machine density to support the most demanding applications
• Deliver more virtual machines per physical host using increased core count and higher memory footprint than
previous generations.
• Improve responsiveness or reduce app load time for power users with up to 6 x single-wide full-length GPUs or
3 x double-wide full-length GPUs.
Expect increased expandability by storing more data in one server, saving space in your datacenter
• Deliver more memory density with DDR5 (up to 3 TB of RAM) providing greater memory capacity per socket.
• Support lower latency higher performance NVMe SSD in a hardware RAID solution helps maximize compute
performance.
| Feature | Technical Specifications |
| Processor | One 4th Generation AMD EPYC 9004 Series processor |
| Memory | • 12 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Front bays: • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB • Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB • Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB • Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB |
| Power Supply | • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant |
| Demisions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel -758.29 mm (29.85 inches) without bezel |
| From Factor | 2U Rack Server |
| Bezel | Optional LCD bezel or security bezel |
