ThinkSystem DB610S Fibre Channel Switch - 8/16/24-Port Activated 16/32Gbps SAN Storage Network Switch

ThinkSystem DB610S Fibre Channel Switch - 8/16/24-Port Activated 16/32Gbps SAN Storage Network Switch

The Lenovo ThinkSystem DB610S FC SAN Switch provides exceptional price/performance value by

delivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, and

enterprise-class functionality to meet the demands of growing flash-based storage environments

Overview
Related Products

DB610S Switch

Product Feature

The Lenovo ThinkSystem DB610S FC SAN Switch provides exceptional price/performance value bydelivering market-leading 32 Gb Gen 6 Fibre Channel technology and combining flexibility, simplicity, andenterprise-class functionality to meet the demands of growing flash-based storage environments.

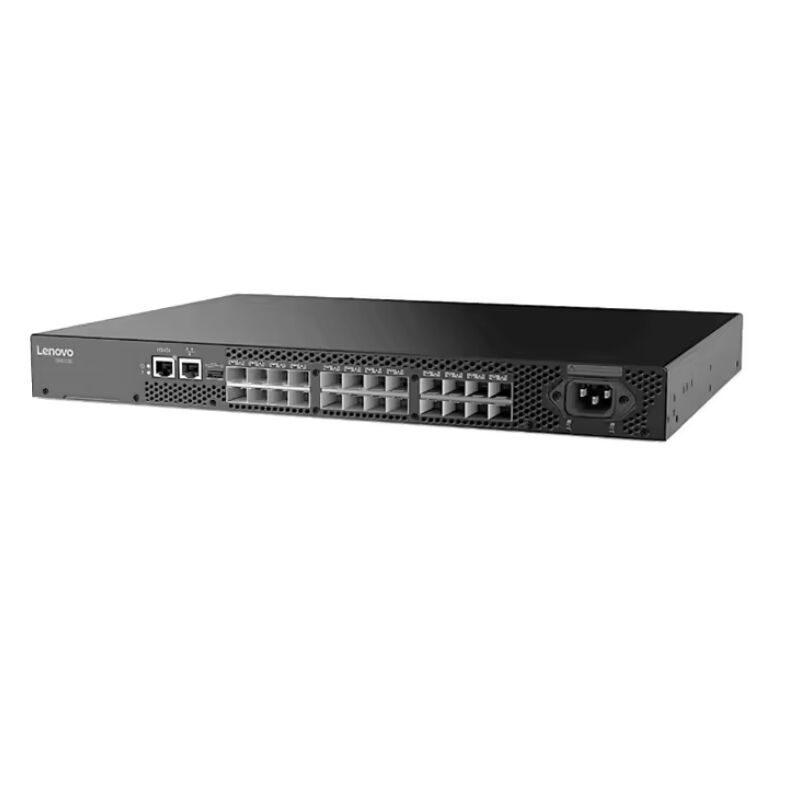

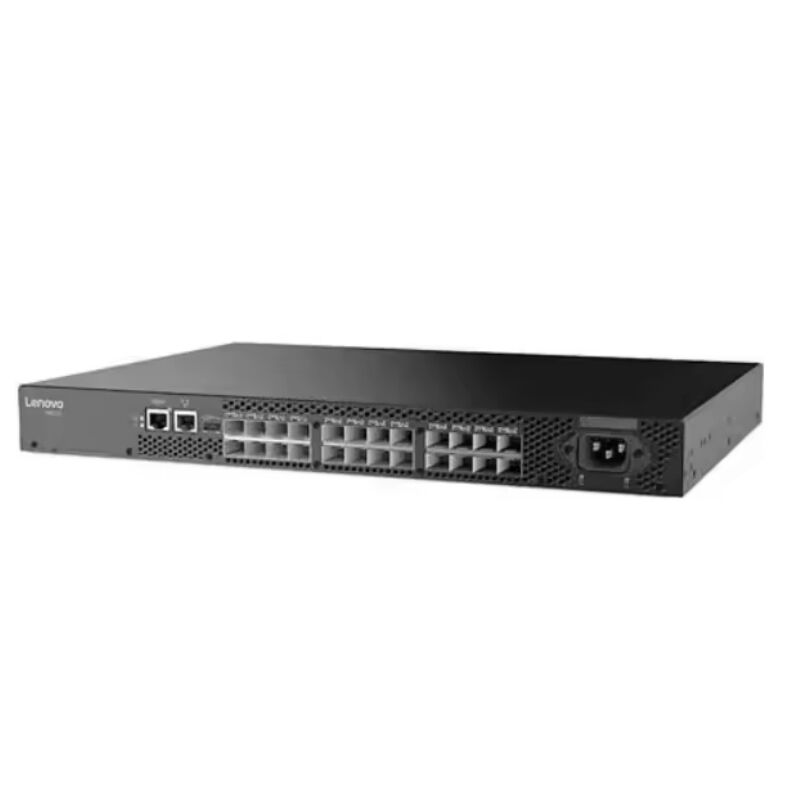

Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S is a compact, 1U rack-mount FC switch that offers low-cost access to industry-leading Storage Area Network (SAN) technologywhile providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.

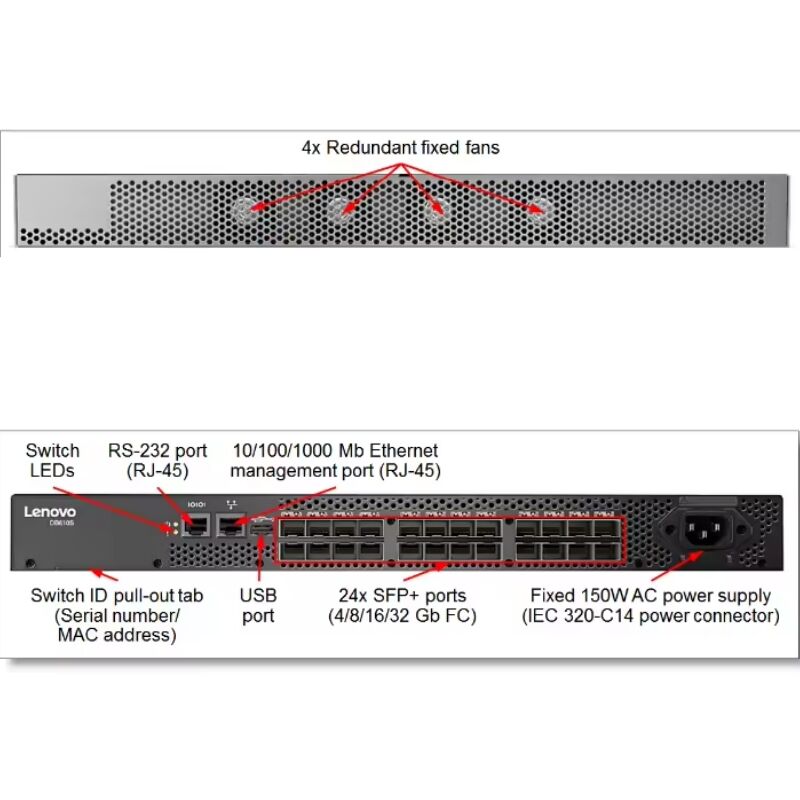

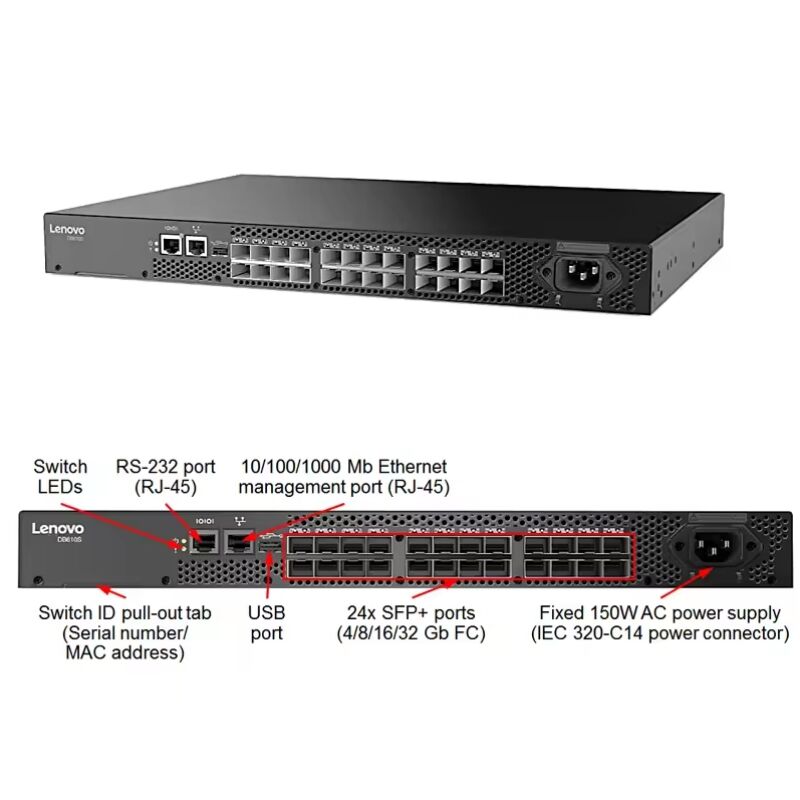

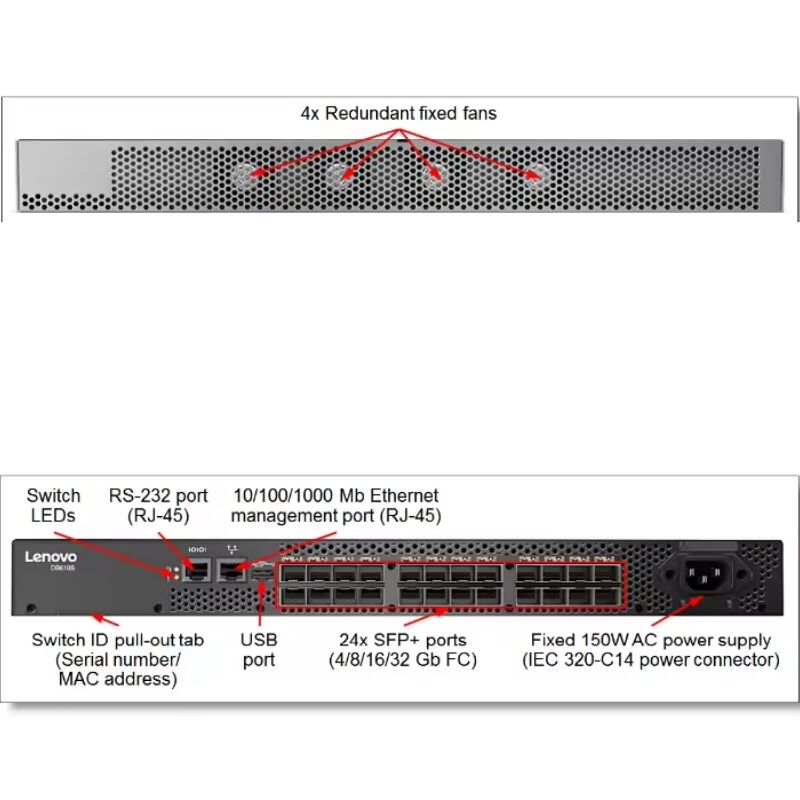

The DB610S FC SAN Switch offers 24x SFP+ ports that support 4/8/16/32 Gbps speeds. The DB610S FC SAN switch provides easy integration into the existing SAN environments while realizing the benefits of Gen 6 Fibre Channel connectivity, and the switch offers a rich set of standard software features with the

options to expand its capabilities as needed.

Specification

Form factor	Standalone or 1U rack mount (Machine Type 6559)
Ports	24XSFP+ports Model HC1: 24 ports activated and 24x 16 Gb FC SWL SFP+ transceivers included. Model HC2: 8 ports activated and 8x 16 Gb FC SWL SFP+ transceivers included. Model HC3: 8 ports activated and no transceivers included.
Media types	32 Gb FC SFP+ transceivers: short wavelength (SWL), long wavelength (LWL). 16 Gb FC SFP+ transceivers: SWL, LWL, extended long wavelength (ELWL).
Port speeds	32 Gb FC SFP+ transceivers: 32/16/8 Gbps auto-sensing. 16 Gb FC SFP+ transceivers: 16/8/4 Gbps auto-sensing.
