Ultra SuperServer SYS-620U-TNR 2U Ultra with 12 NVMe/SAS/SATA bays and 8 PCIe slots
Virtualization, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco
Supermicro Server: Unleash Performance, Empower the Future.High Efficiency, Reliable Computing, Secured & Sustainable, Accelerate Digital Transformation.Innovative Core, Guarding Cloud Computing Power.
- Overview
- Related Products
Virtualization, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco
Supermicro Server: Unleash Performance, Empower the Future.High Efficiency, Reliable Computing, Secured & Sustainable, Accelerate Digital Transformation.Innovative Core, Guarding Cloud Computing Power.
Product parameter
| From Factor | 2U Rackmount |

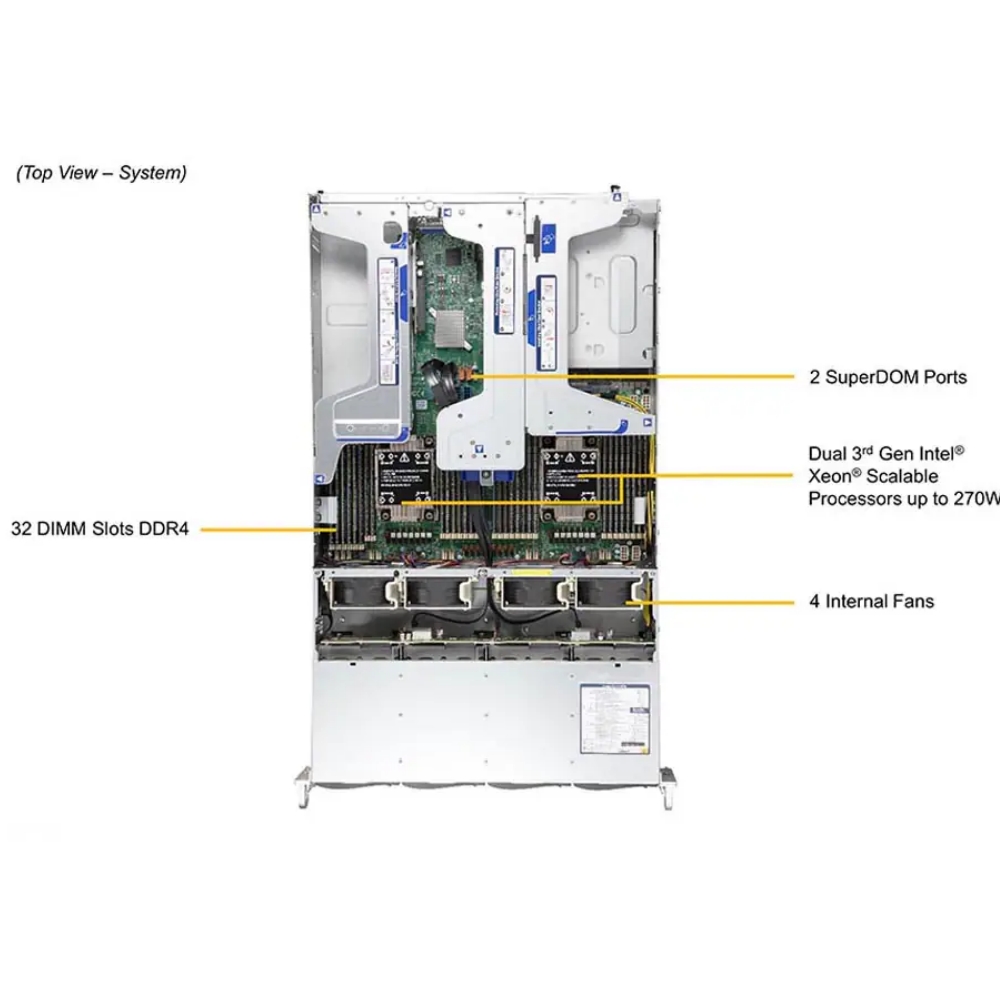

| Processor | Dual Socket；3rd Gen Intel Xeon Scalable processors |
| GPU | Max GPU Count：Up to 4 double-width or 6 single-width GPUs Supported GPU：NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10 |
| Memory | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |

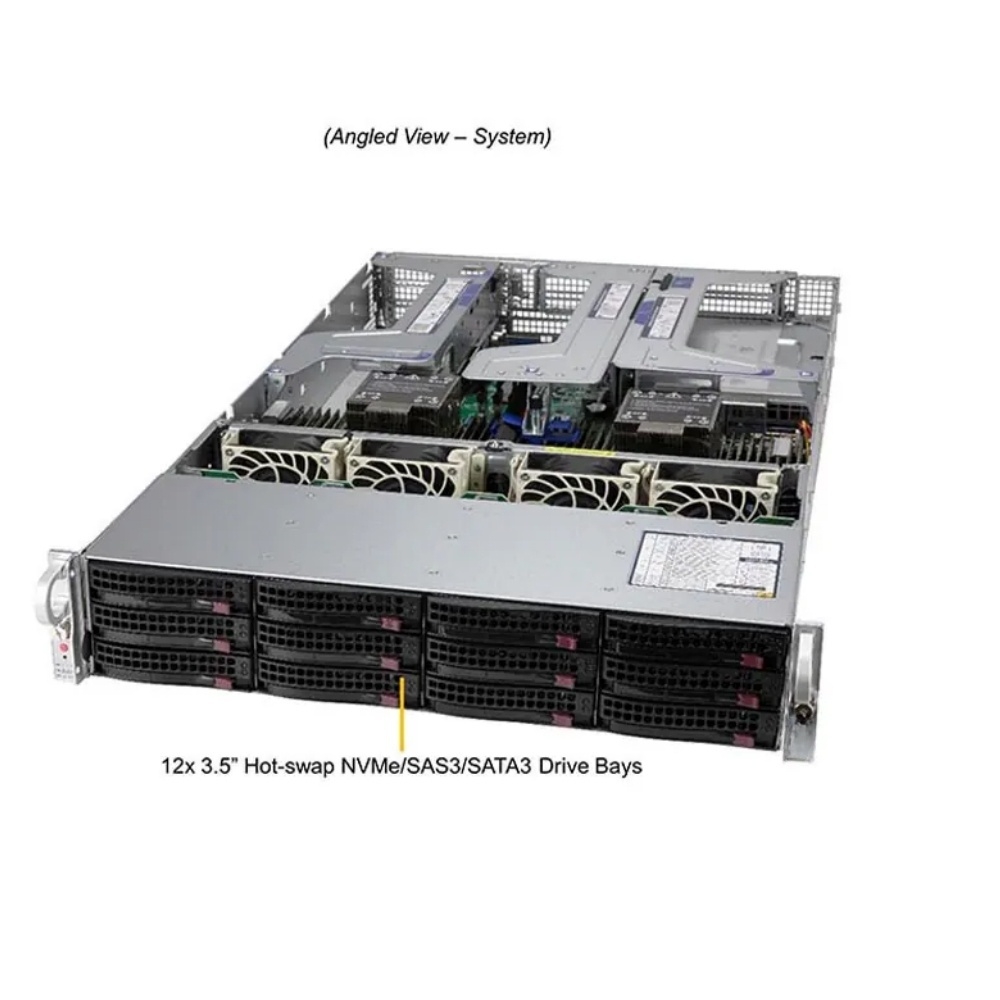

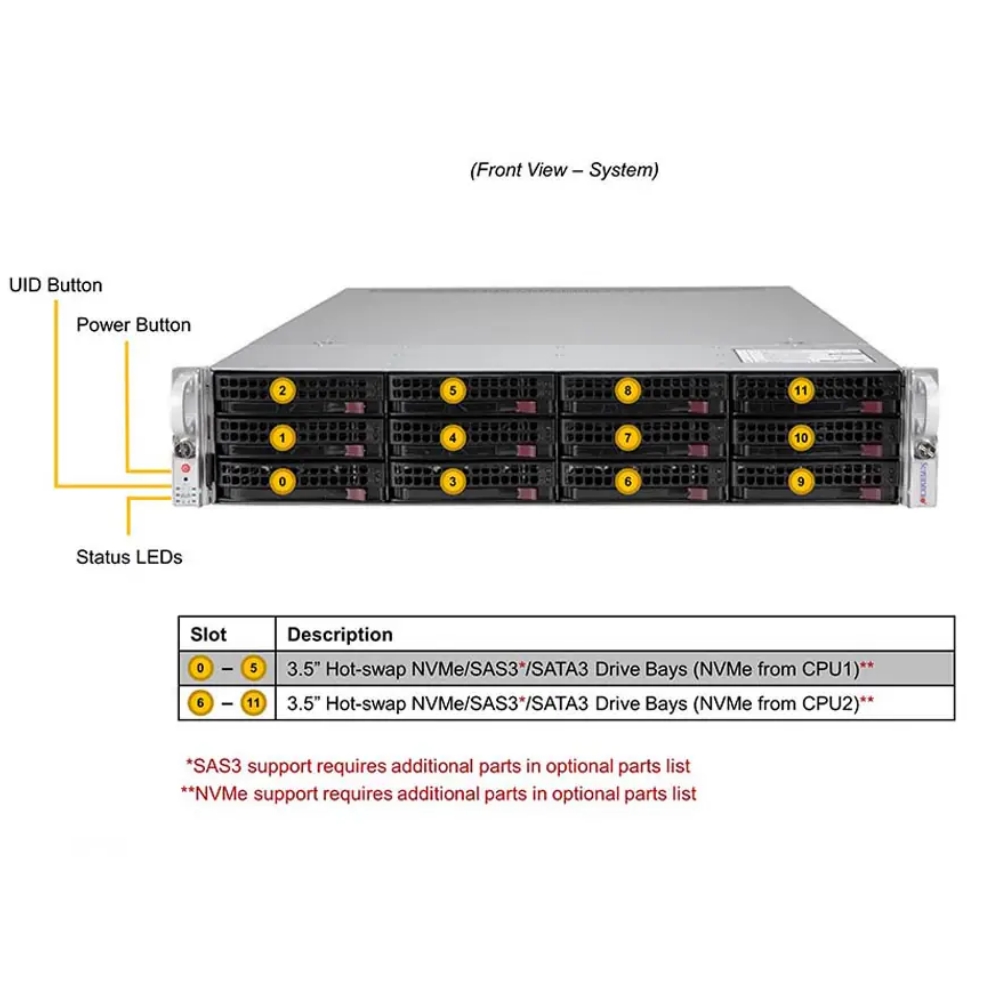

| Drive Bays | Total 12 bays 12 front hot-swap 3.5" NVMe/SAS*/SATA drive bays |

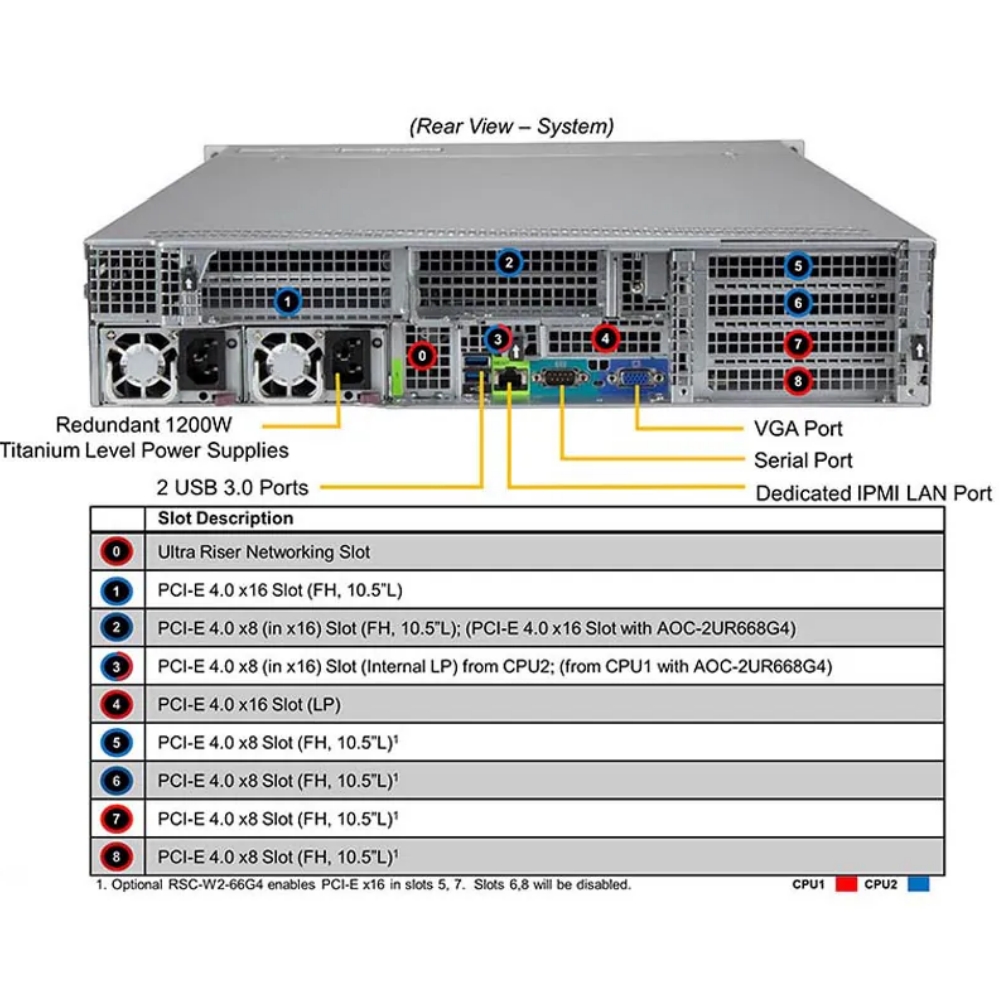

| Expansion Slots | 1 PCIe 4.0 x16 (in x16) FH/10.5"L slot 5 PCIe 4.0 x8 (in x8) FH/10.5"L slots 1 PCIe 4.0 x8 (in x8) LP slot 1 PCIe 4.0 x16 (in x16) LP slot |
| Power Supply | 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply |
| Dimensions and Weight | Height：3.5" (89 mm) Width：17.2" (437 mm) Depth：29.05" (737.9 mm) Package：10.07" (H) x 23.81" (W) x 37.28" (D) Gross Weight: 57.5 lbs (26.2 kg) Net Weight: 35.5 lbs (16.2 kg) |
