EMC Powerdge R630 With Intel Xeon processor And 24 DIMMs of High-performance DDR4 Memory
Deliver peak performance
Build a blazingly fast transactional database with the R630 24 all-flash drive configuration. Combine the density, scalability and performance of 24 x 1.8" SSDs with dual-PERC capability to deliver a superior solution that can boost performance by storing an entire database. When combined with the SanDisk® DAS Cache solution, the R630 can help increase OLTP transactions and concurrent usage for latency-sensitive applications, such as e-commerce or financial trading.
Discover greater versatility
With up to 24 DIMMs of memory, and configured with up to 10 2.5" drives, the R630 can provide a dense, resource-rich midsize virtualization environment to drive business intelligence applications,from customer relationship management (CRM) to enterpriseresource planning (ERP), while it saves on space, energy and capital costs.
You can also increase the speed of data access using up to four NVMe PCIe Express Flash devices with Fluid Cache technology—and share that caching advantage across other networked servers.
- Overview
- Related Products

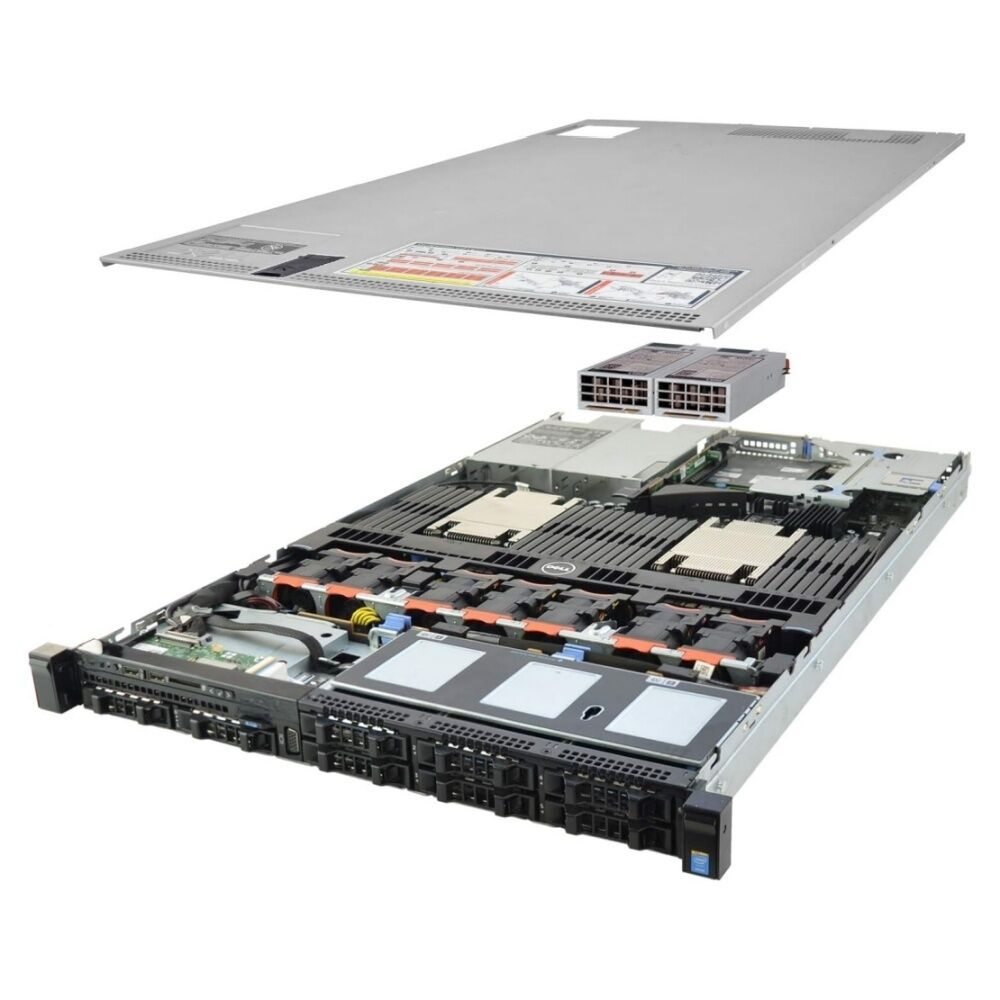

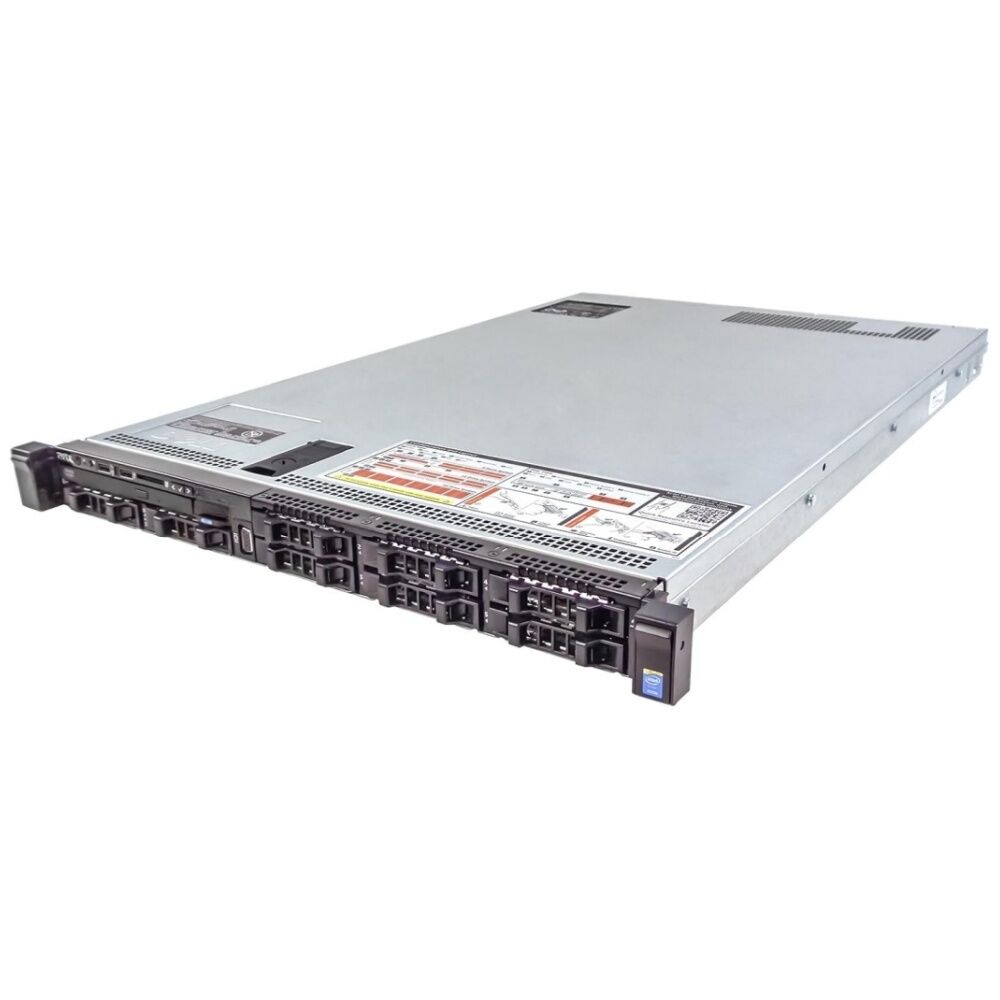

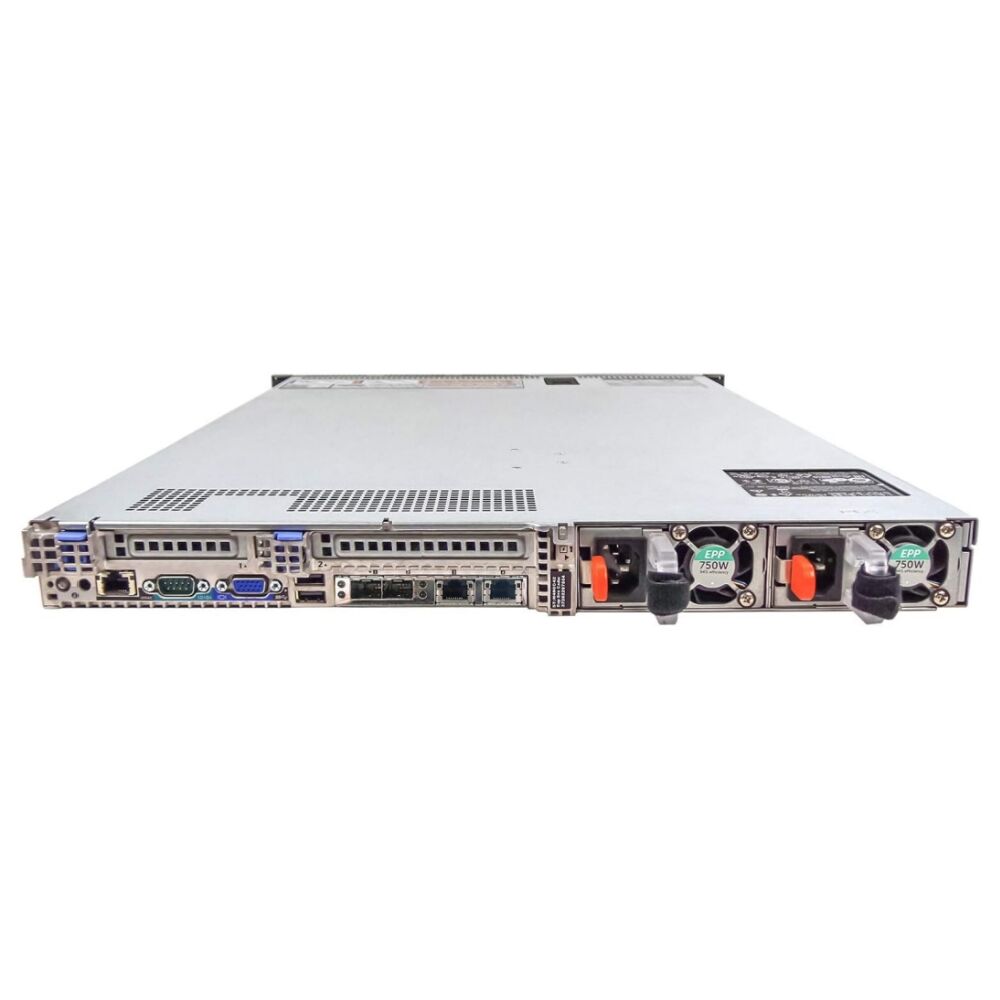

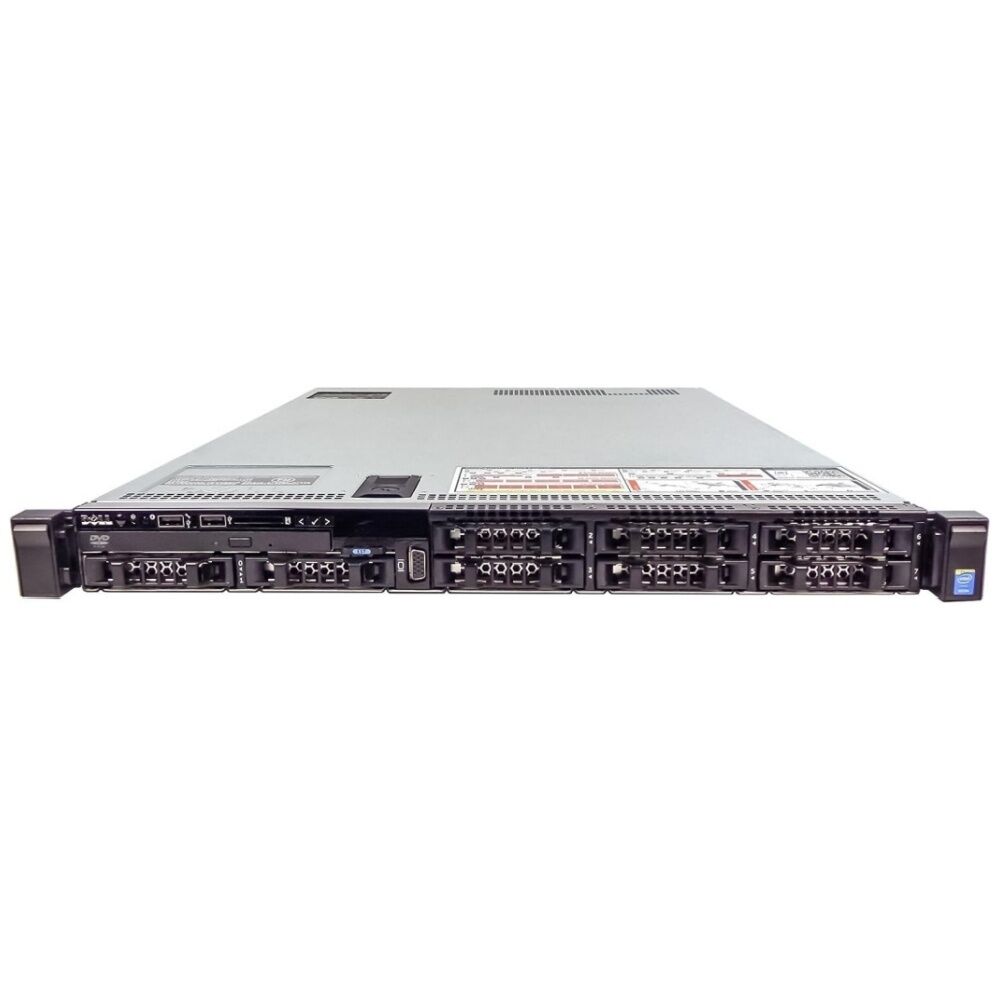

With computing capability previously only seen in 2U servers, the ultra-dense PowerEdge R630 two-socket 1U rack server delivers an impressive solution for virtualization environments, large business applications or transactional databases.
The PowerEdge R630 server is versatile and highly configurable for a variety of solutions, delivering the latest Intel Xeon processor E5-2600 v4 product family, 24 DIMMs of high-performance DDR4 memory and a broad range of local storage options.
Product parameter
| From Factor | 1U rack server |
| Processor | Processor sockets: 2 Intel Xeon processor E5-2600 v4 product family |
| Chipset | Intel C610 series chipset |
| Memory | Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s |
| I/O slots | Up to 3 x PCIe 3.0 slots plus dedicated PERC slot |
| RAID controllers | Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA |
| Drive Bays | Internal hard drive bay and hot-plug backplane: Up to 24 x 1.8" SATA SSD Up to 10 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe Up to 8 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA |
| Power Supply | Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W |
| Dimensions | 24 x 1.8" and 10 x 2.5" drive : 4.28 cm (1.68 in) x 48.23 cm (18.98 in) x 75.51 cm (29.72 in) 8 x 2.5" drive : 4.28 cm (1.68 in) x 48.23 cm (18.98 in) x 70.05 cm (27.57 in) |
