PowerEdge R7525 Rack Server Dual Socket 2U Rack Server Powerful performance and flexibility

The new EMC PowerEdge R7525 Rack Server is a highly adaptable rack server that delivers powerful performance and flexible configurations.

Overview
Related Products

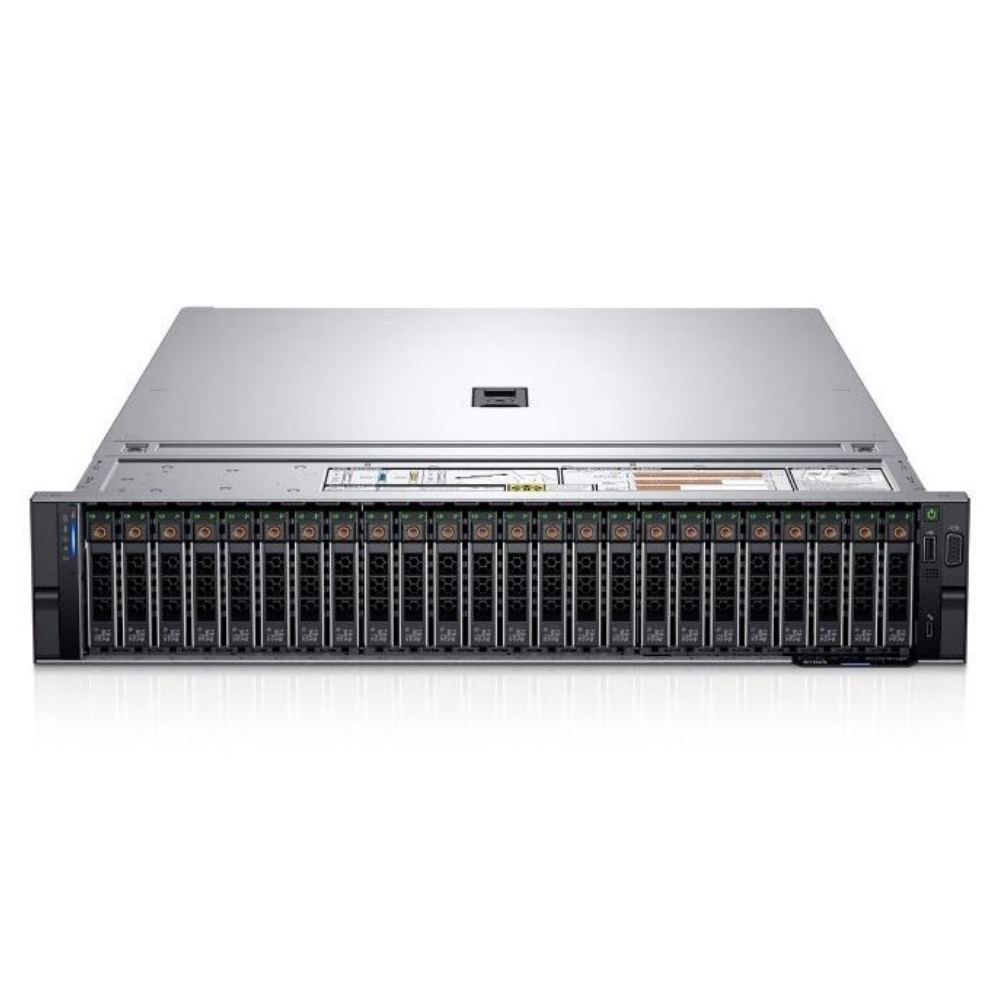

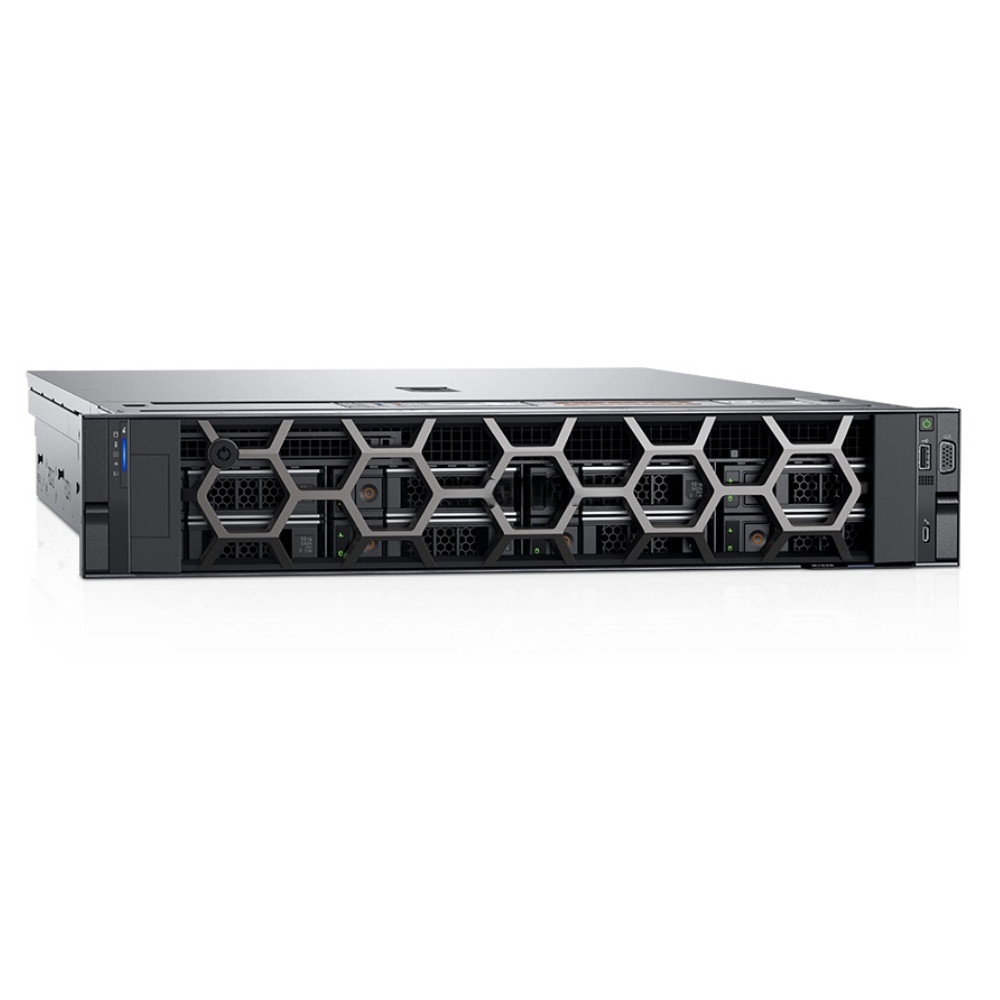

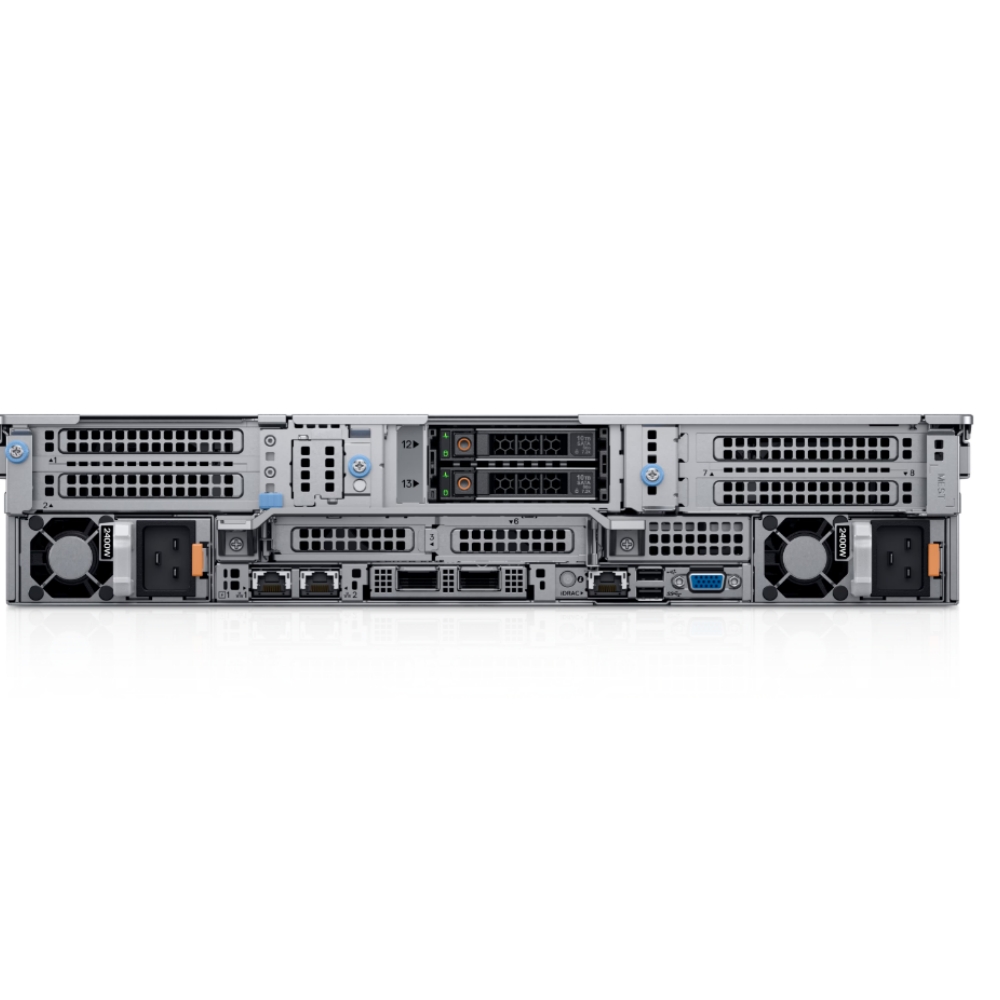

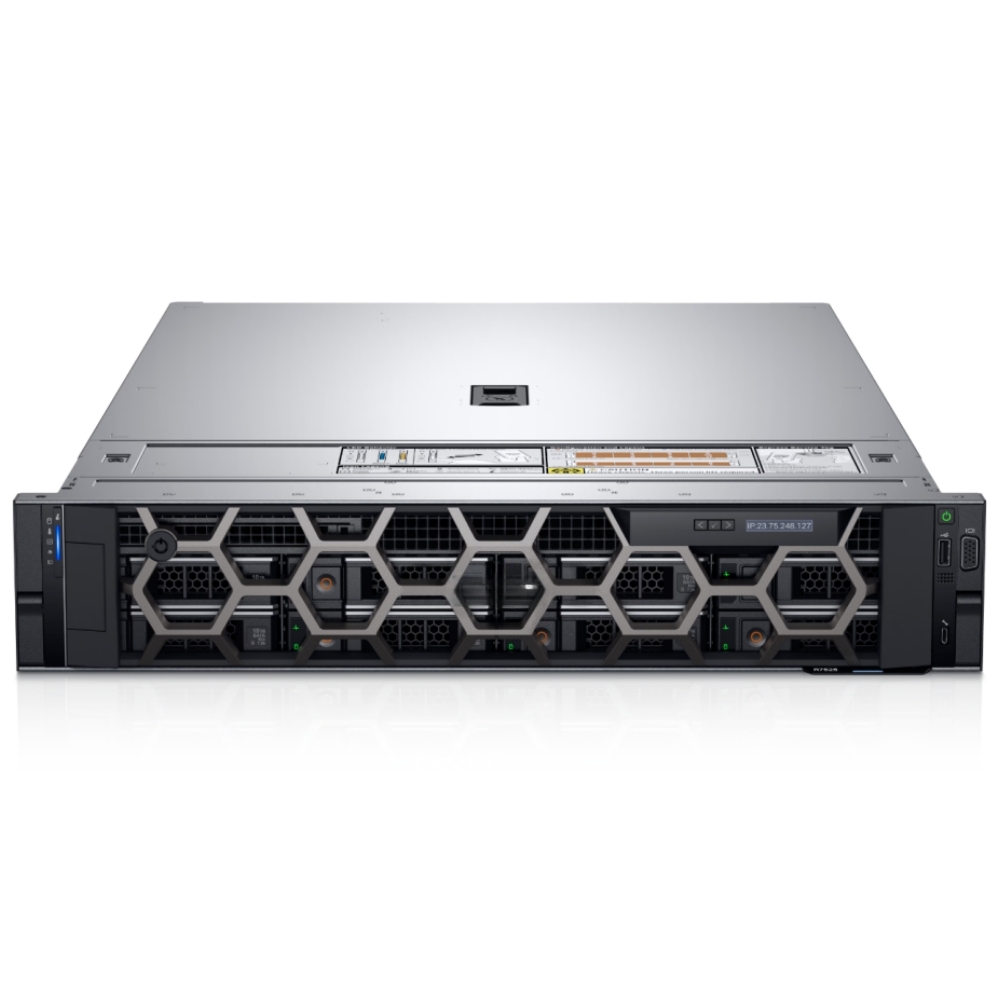

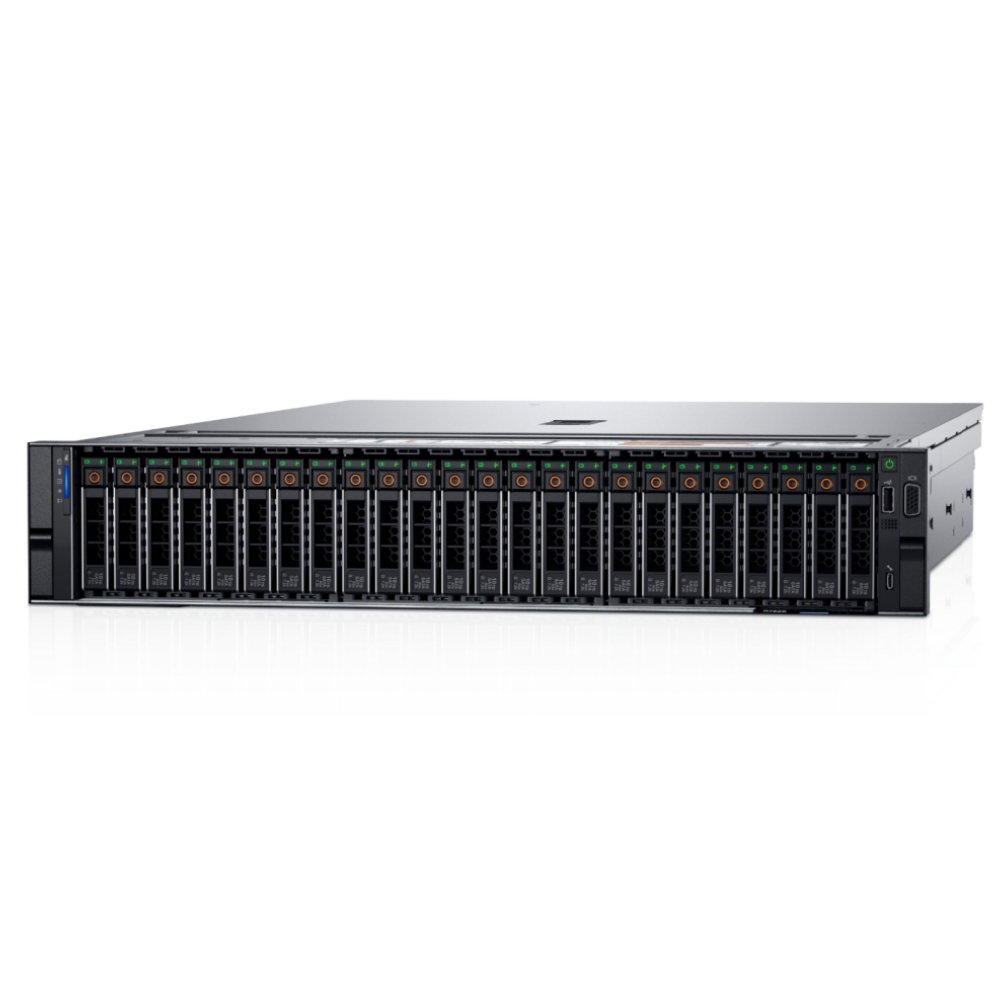

PowerEdge R7525 Rack Server

Deliver breakthrough performance, innovation and density for traditional and emerging workloads

• 100%1 more processing cores and faster data transfer speeds with PCIe Gen 4

• 20%2 more memory performance for scale out environments

• Maximized storage and memory configuration option enables HPC, ML/DL/AI and rendering

• 24 direct connect Gen4 NVMe supports all flash vSAN Ready Node

• Balanced core count and GPU to support for maximum numbers of end users

Increase efficiency and accelerate operations with an automated infrastructure

The Dell EMC OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes

• Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance

• Simplify and centralize one-to-many management with the OpenManage Enterprise console

• Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet

• Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and

SupportAssist.

Features	Technical Specification
Processor	Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor
Memory	DDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S
Storage	Front Bays: Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD) Up to 12 x 3.5” SAS/SATA (HDD) Up to 16 x 2.5” SAS/SATA (SSD/HDD) The 24 x 2.5” SAS/SATA backplane won’t be available until April block Rear Bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD)
Controllers	HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA Chipset SATA/SW RAID(S150): Yes PERC11 – H755, H755N
Power Supply	800W Platinum 1400W Platinum 2400W Platinum
Dimension	Height: 86.8mm (3.42”) Width: 434.0mm (17.09”) Depth: 736.29mm (28.99”) Weight: 36.3KG (80lb)
From Factor	2U Rack Server
