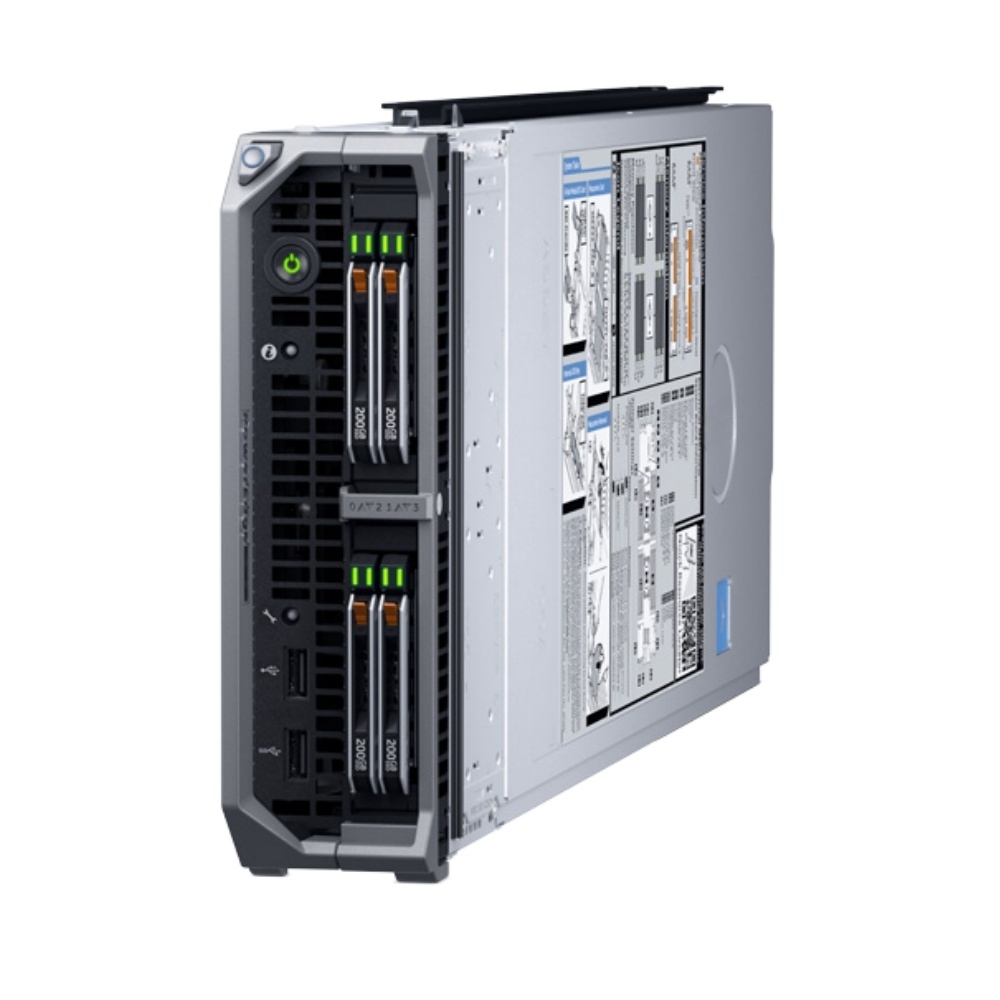

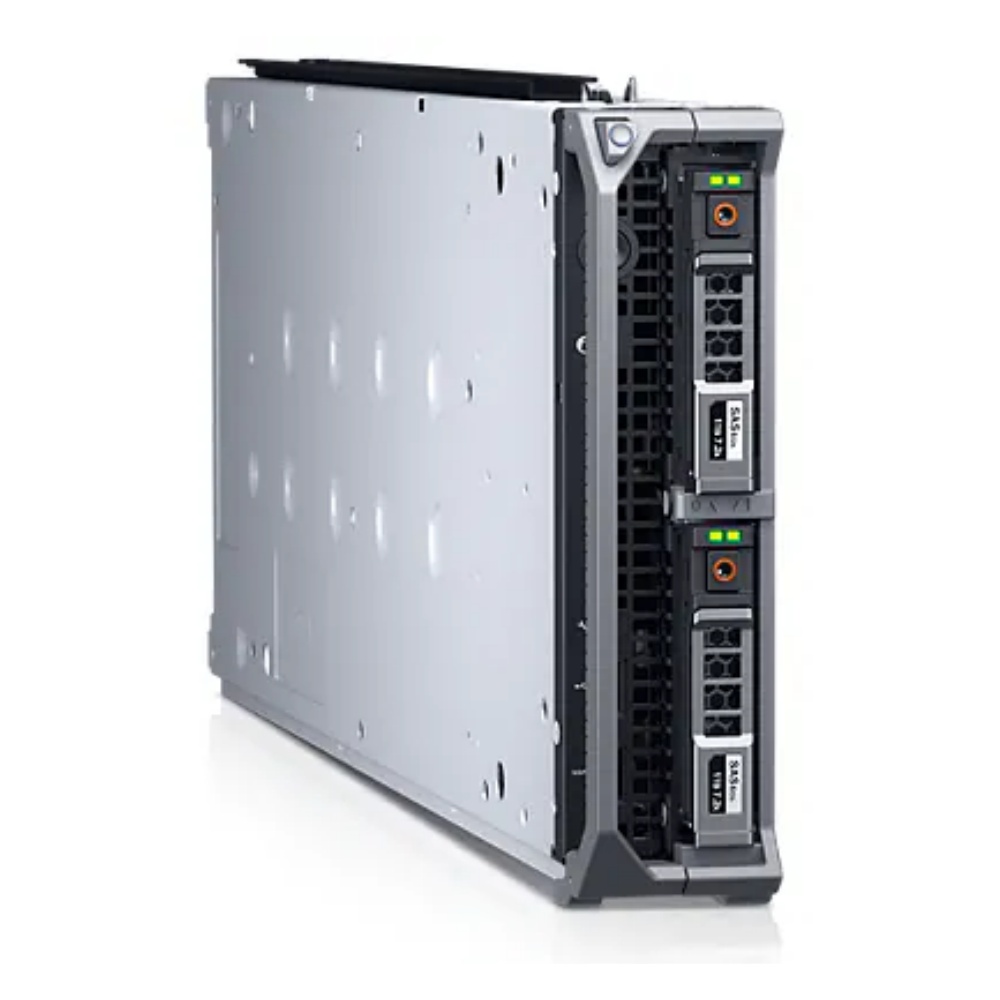

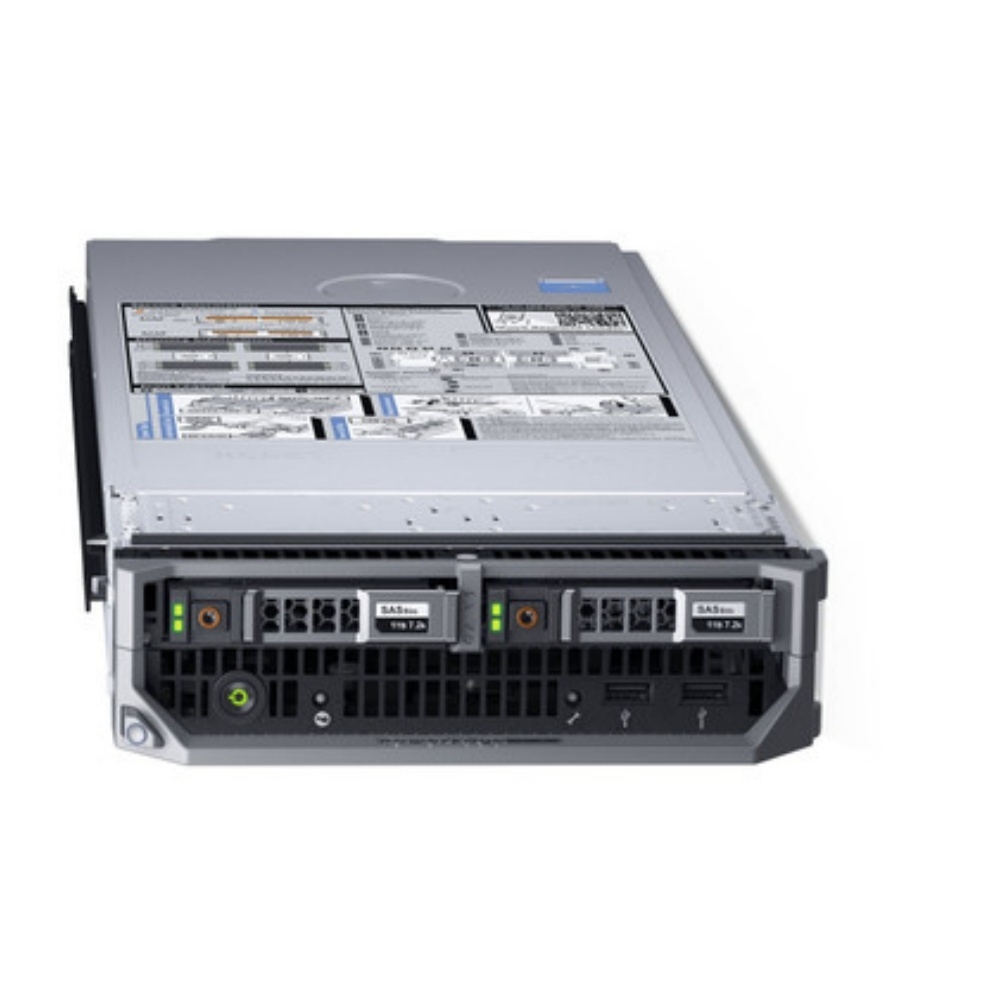

Blade Server Poweredge M630 for Data Center Workloads

An ultra-efficient blade server with up to 44 cores of Intel processing power and 24 DIMMs of DDR4 memory in a dense, easy-to-manage platform ideal for data center workloads.

Overview
Related Products

M630 Description

Easily scale your workload capacity

Deliver the compute power your demanding applications require with the PowerEdge M630 blade server. Designed for use with the PowerEdge M1000e blade enclosure and PowerEdge VRTX converged infrastructure, the M630 offers exceptional scalability in environments ranging from IT as a service (XaaS) providers and private clouds to remote and branch offices.

The Intel® Xeon® processor E5-2600 v4 product family offers the processing cycles and threads to help increase virtualization performance, allowing the M630 to deliver more, larger and higher performing virtual machines with help from more cores and up to 15 percent greater memory bandwidth.

Drive peak performance

Unleash the workload capabilities of your converged infrastructure

with the ample memory capacity of the M630’s 24 DDR4 DIMM slots

and up to four 1.8" SSDs — twice the number of flash drives per

server than previous generations. This extreme memory density and

high-bandwidth memory makes the M630 ideal for workloads like

high-performance computing (HPC).

Feature	Technical specification
Processor	2 x Intel Xeon processor E5-2600 v4 product family
Memory	Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
Drive Bays	PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD 4 x 1.8" SSD. 2 x 2.5" PCIe SSDs
From Factor	Half-height blade with up to 16 nodes in a 10U M1000e chassis; up to four nodes in a VRTX chassis
Chipset	Intel C610 series chipset
Power Supply	Chassis level – PowerEdge M1000e 2700W Platinum and 3000W Titanium PSU options
Dimensions	H: 197.9 mm (7.79 in), W: 50.35 mm (1.98 in), D: 564.9 mm (22.2 in)
