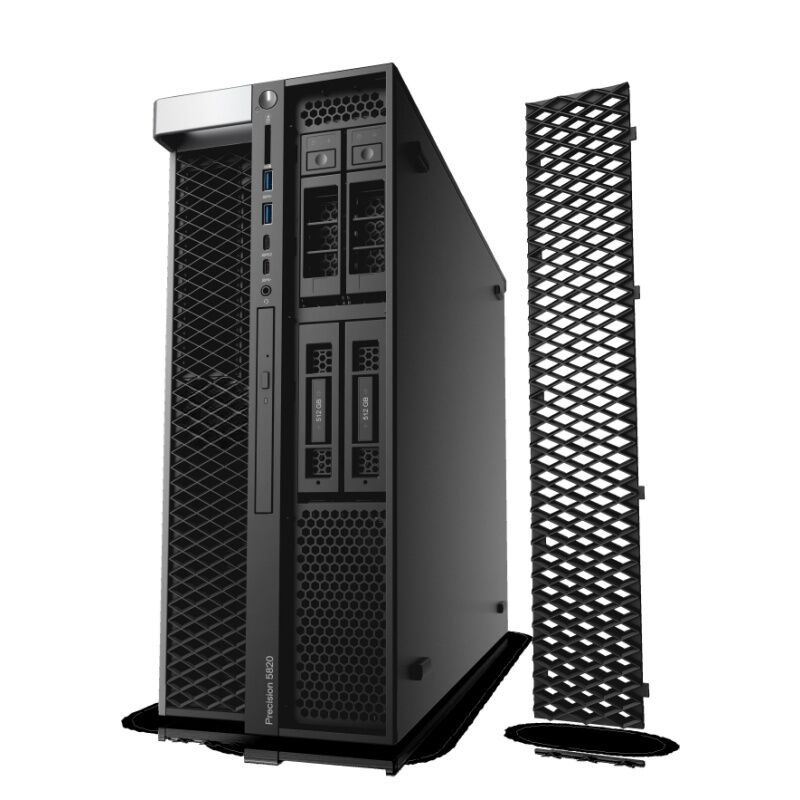

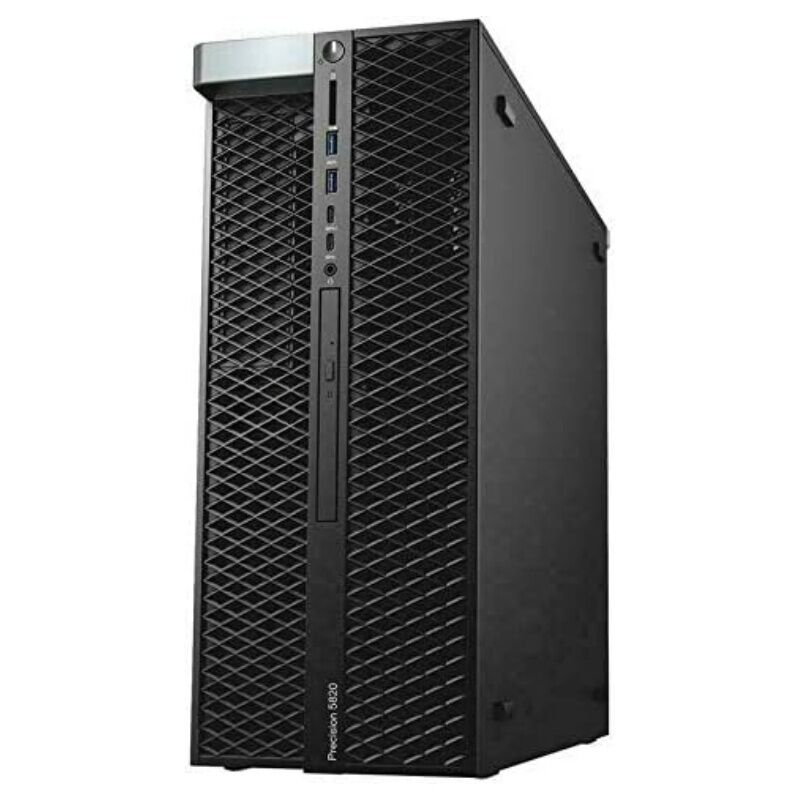

Big Power In an Innovative Compact Design Precision 5820 Tower
The Dell Precision 5820 Tower delivers high performance for your most demanding applications with the latest Intel Xeon and Core X Series processors and up to 512GB of fast 2666MHz memory. In addition, every Dell Precision comes with the exclusive Dell Precision Optimizer, which automatically tunes your workstation
to run some of the most popular (ISV) applications at the fastest speeds possible. DPO Premium is a new AI-based version which optimizes your workstation, based upon how you use it, providing true customization.
- Overview
- Related Products
The Dell Precision 5820 Tower delivers high performance for your most demanding applications with the latest Intel Xeon and Core X Series processors and up to 512GB of fast 2666MHz memory. In addition, every Dell Precision comes with the exclusive Dell Precision Optimizer, which automatically tunes your workstation
to run some of the most popular (ISV) applications at the fastest speeds possible. DPO Premium is a new AI-based version which optimizes your workstation, based upon how you use it, providing true customization.
Product parameter
| Processor | Intel Xeon Processor W-2000 Family and Core X Series CPUs |
| Chipset | Intel C422 (Skylake/Cascade Lake W) Intel X299 (Skylake/Cascade Lake X) |
| Memory | Four channel memory up to 512GB 2666MHz and up to 256GB 2933MHz DDR4 (RDIMM) ECC memory. (Up to 256GB 2666MHz DDR4 (UDIMM) Non-ECC memory) 8 DIMM slots. |
| Graphics | Support for 2 PCI Express x16 Gen 3 graphics card - up to 600W with maximum of up to 2 x 300W double width graphics cards. |
| Storage | M.2 NVMe PCIe SSDs ：Up to 4 x 2TB drives on 1 Dell Precision Ultra-Speed ；Drive Quad x16 card. Front FlexBay M.2/U.2 NVMe PCIe SSDs：Up to 4 x 2TB M.2 drives Intel Optane905P SSDs：Up to 4 x 960GB drives 2.5” SATA SSD: Up to 6 x 1.9TB drives 2.5” SATA 7200 RPM: Up to 6 x 1TB drives 3.5” SATA 7200 RPM Hard Drives : Up to 5 x 12TB Enterprise Drives 2.5” SAS SSD: Up to 6 x 800GB drives 3.5” SAS 7200 RPM 12Gb/s: Up to 5 x 4TB 2.5” SAS 10K RPM 12Gb/s : Up to 6 x 1.8TB 2.5” SAS 15K RPM 12Gb/s: Up to 6 x 600GB M.2 PCIe SED SSD: 512GB and 1TB |

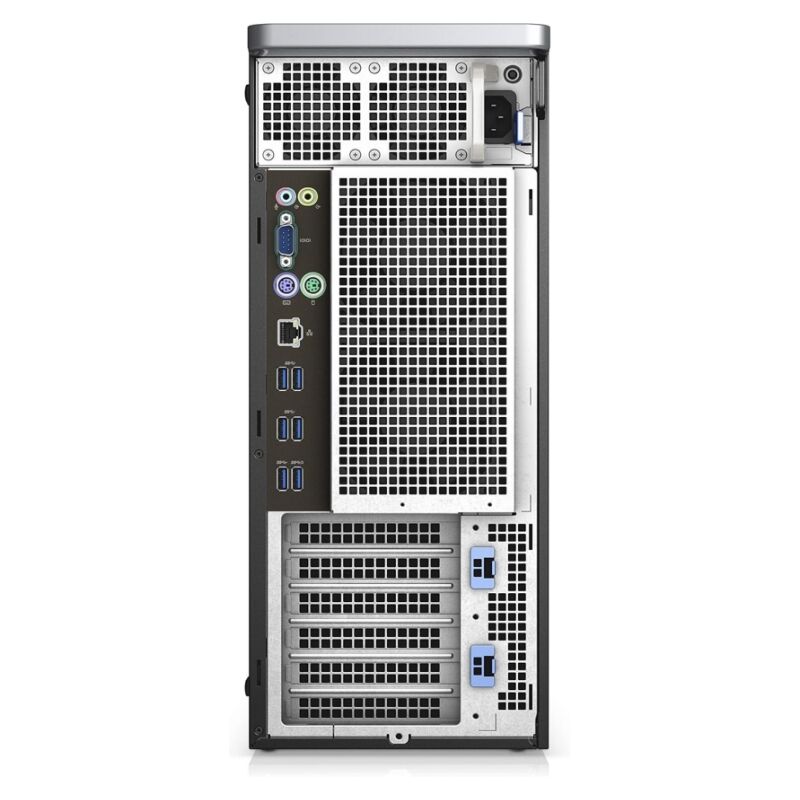

| I/O Ports | Front: 2 – USB 3.1 Gen 1 Type A; 2 – USB 3.1 Gen 1 Type C;1 – Universal Headphone Jack Internal: 1 – USB 2.0 Type A;1 – 2 x 5 USB 2.0 header. (requires 3rd party splitter cable to support 2 x USB 2.0 Type A ports) ;6 – SATA @6Gb/s plus 2 for optical Rear: 6 – USB 3.1 Gen 1 Type A (6th port supports Power Delivery);1 – Serial ;1 – RJ45 Network;2 – PS2;1 – Audio Line out ;1 – Audio Line in/Microphone |
| Power Supply | 425W or 950W |
| Dimensions (H × W × D) | HxWxD: 16.45” (417.9 mm) | Width: 6.95” (176.5 mm) | Depth: 20.4” (518.2 mm) | Weight: 34lb/15.4kg |
