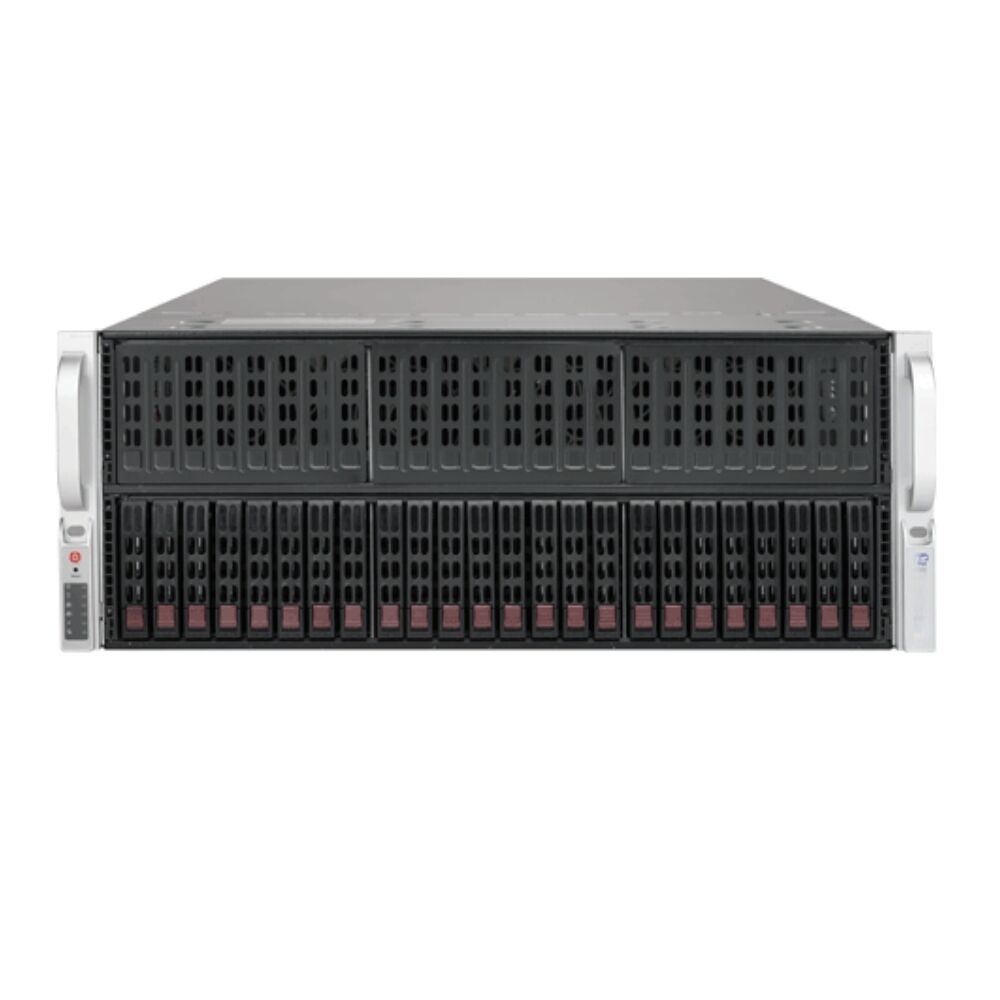

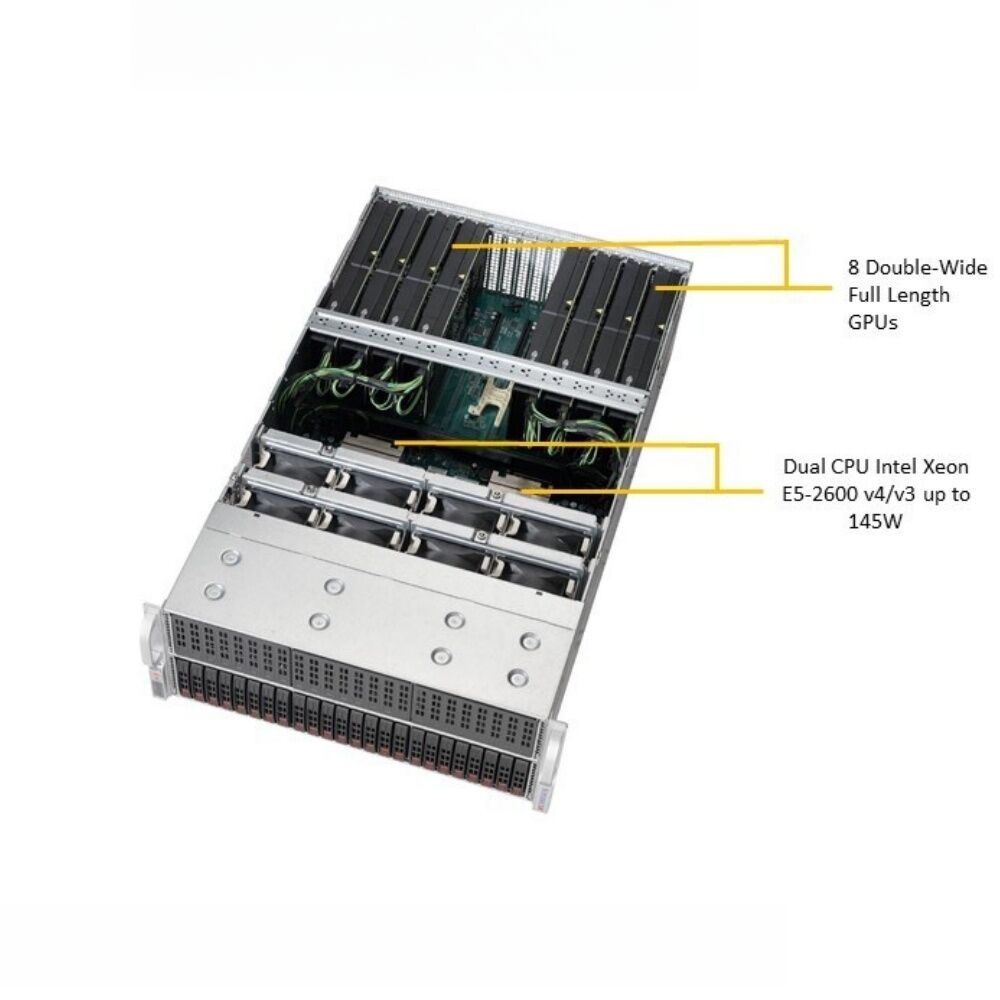

SuperServer 4028GR-TRT
Product Feature

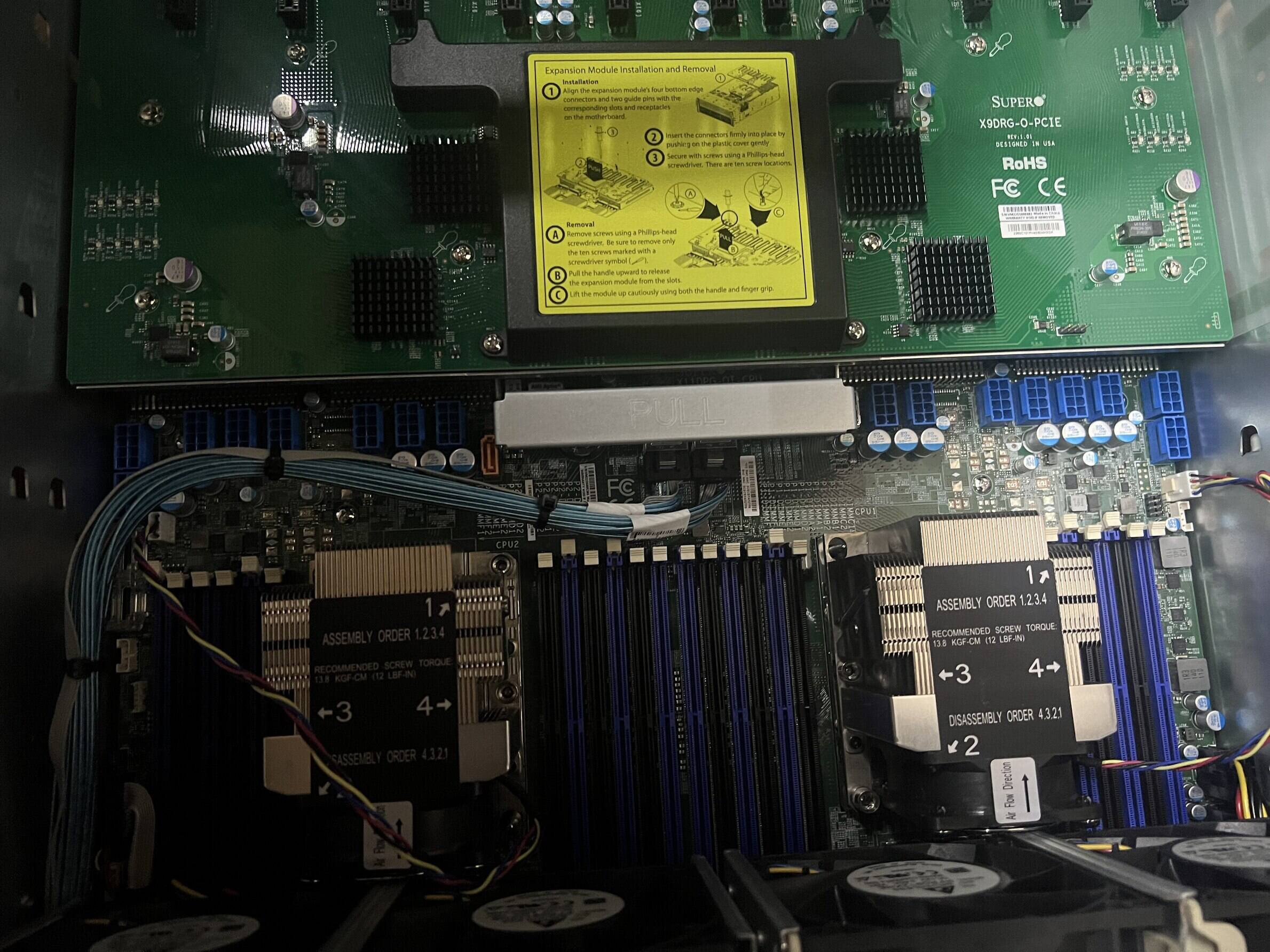

1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 24 DIMM slots

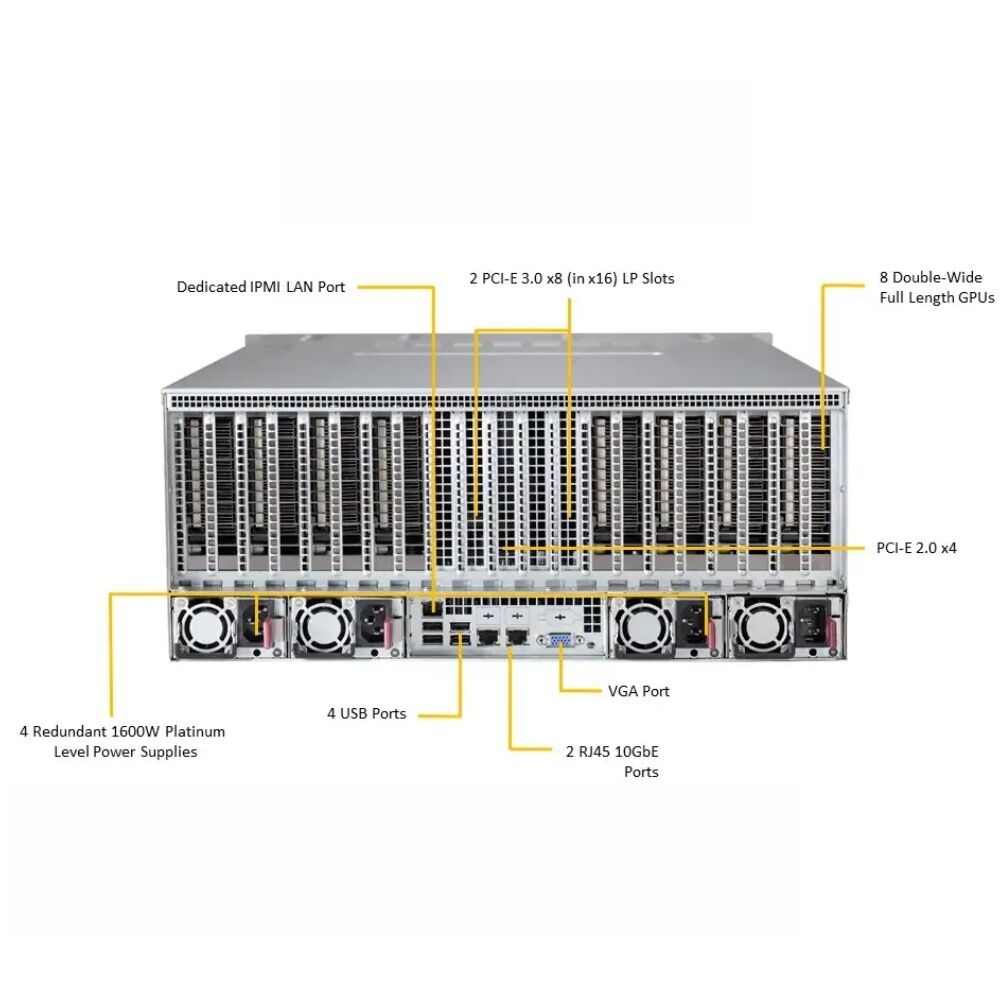

3. Expansion slots:

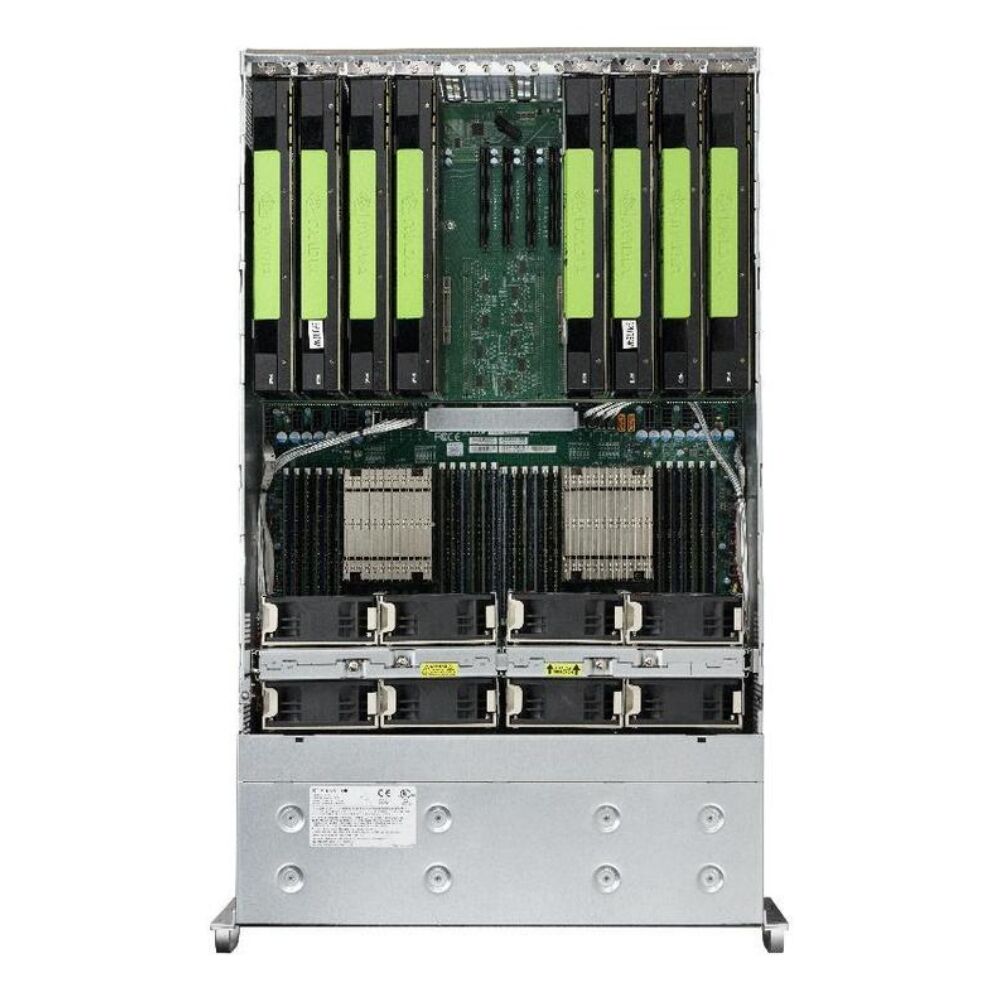

8 PCI-E 3.0 x16 (double-width) slots
2 PCI-E 3.0 x8 (in x16) slots
1 PCI-E 2.0 x4 (in x16) slot
4. Dual 10GBase-T LAN with Intel X540

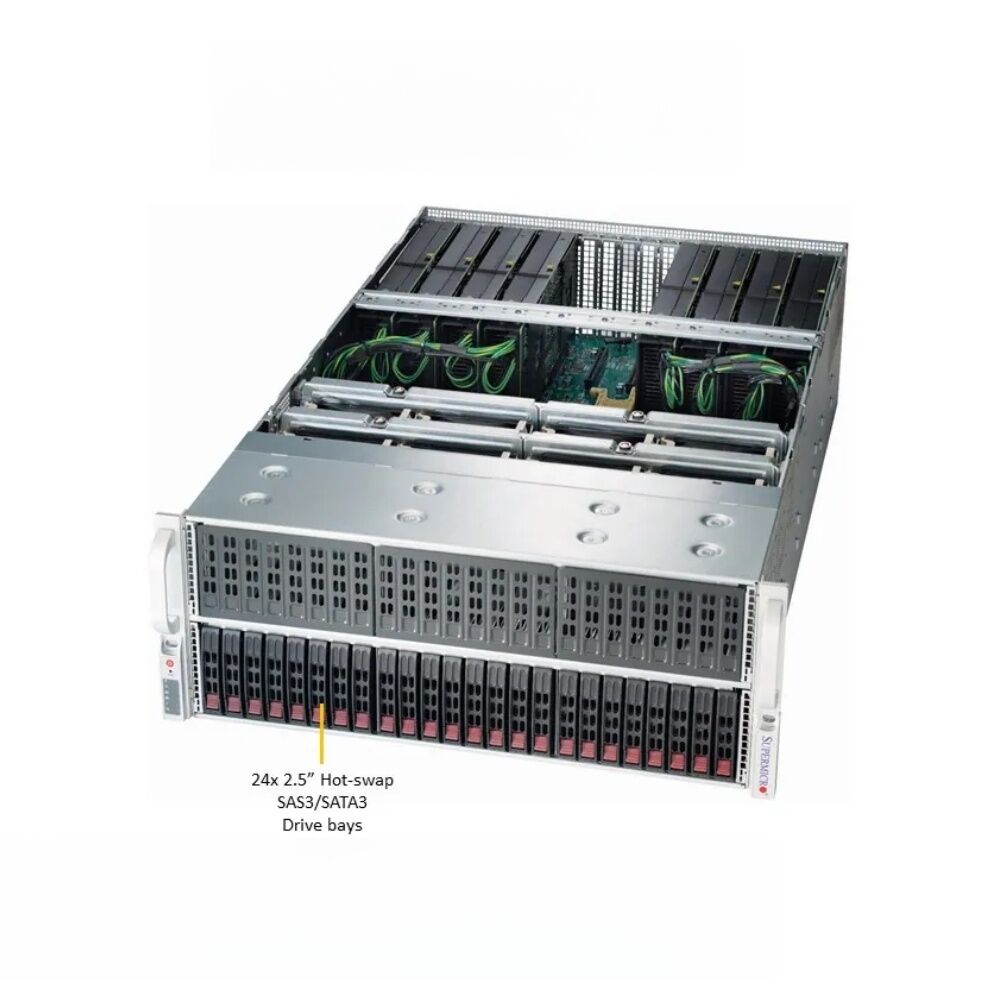

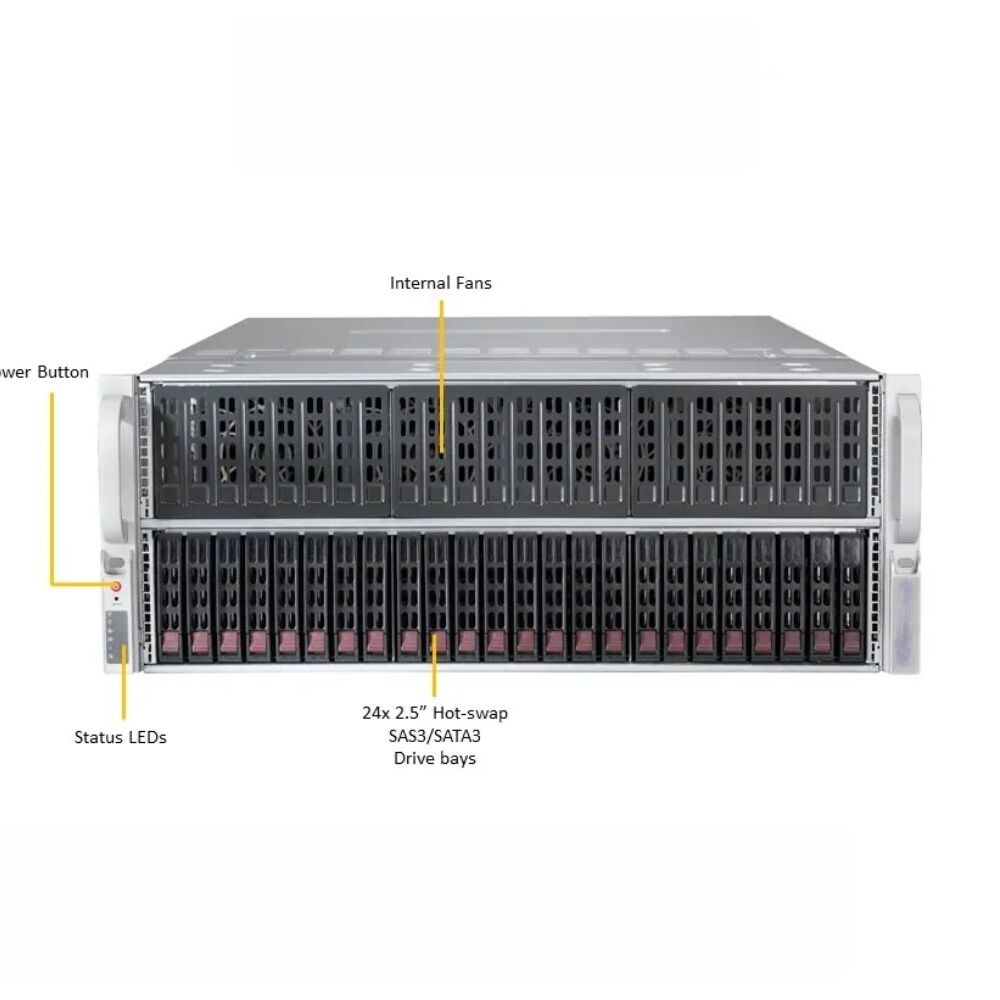

5. 24 Hot-swap 2.5" drive bays
6. 8 Hot-swap 92mm cooling fans
7. 1600W Redundant (2+2) Power Supplies; Platinum Level (94%+)
Specification
| From Factor | 4U |
| CPU |
Intel Xeon processor E5-2600 v4†/ v3 family Dual processor |
| Memory | 24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM |
| Drive Bays | 24 Hot-swap 2.5" hard drive bays |
| Power Supply | 1600W 1U Redundant Power Supplies with PMBus |
Dimensions |
Height：7.0" (178mm) Width：17.2" (437mm) Depth：29" (737mm) |
Contact Us

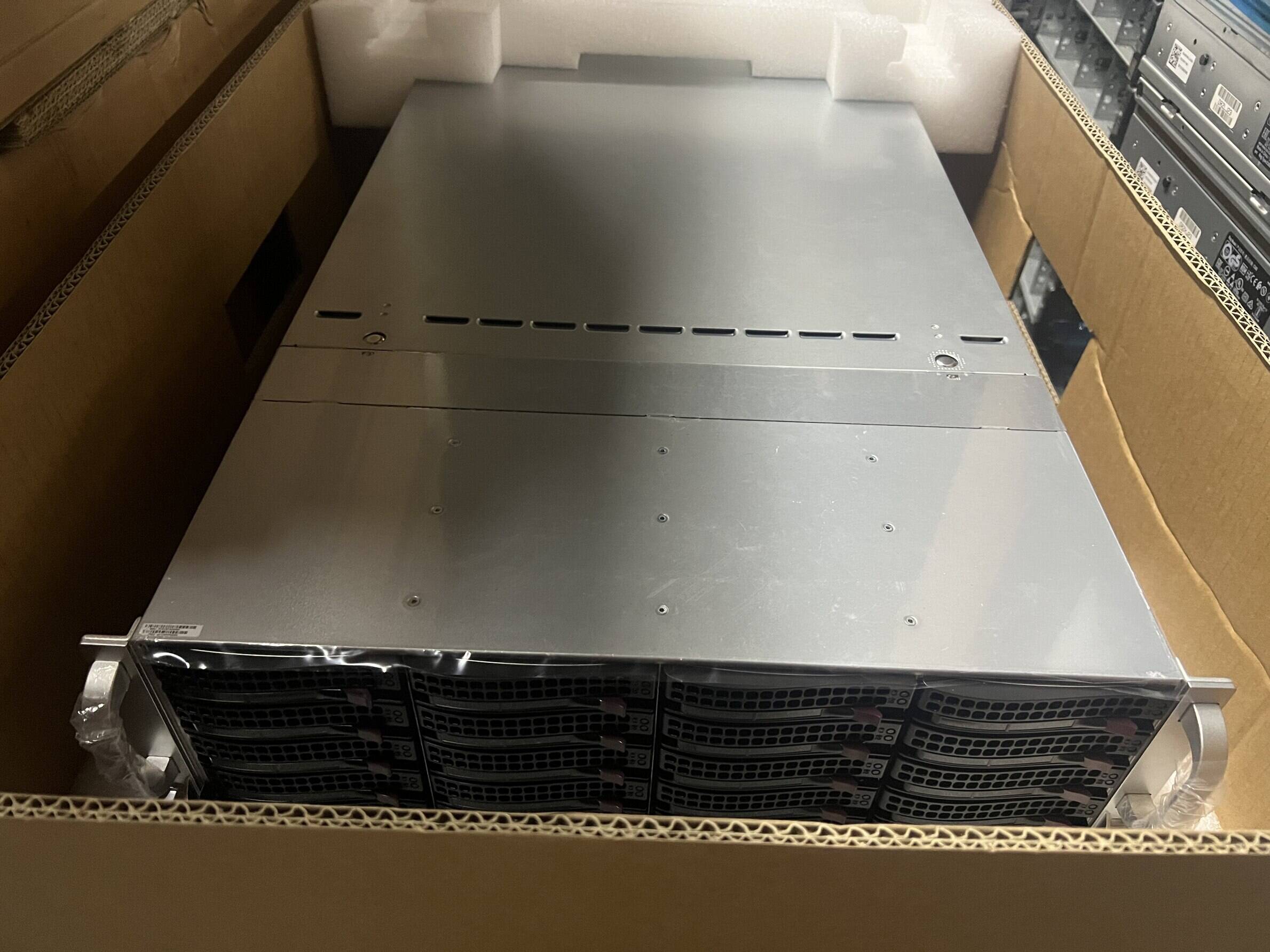

Package
