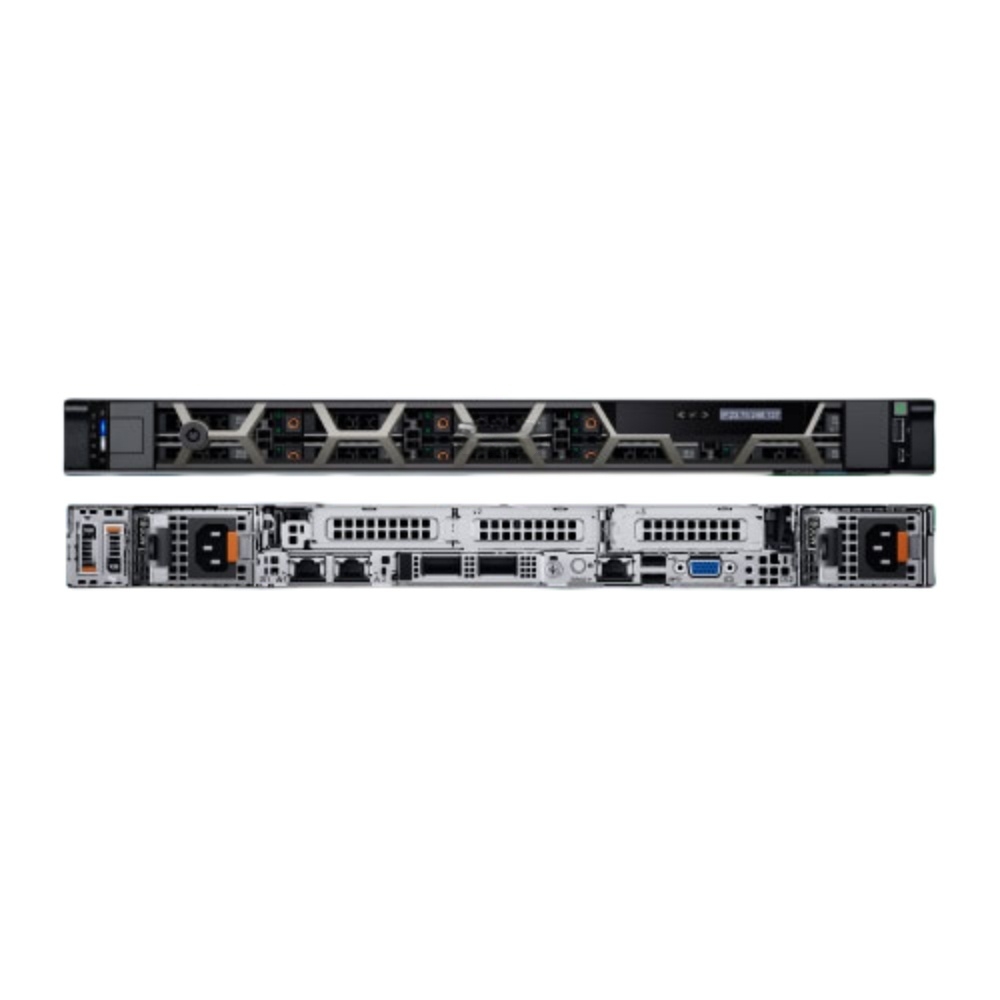

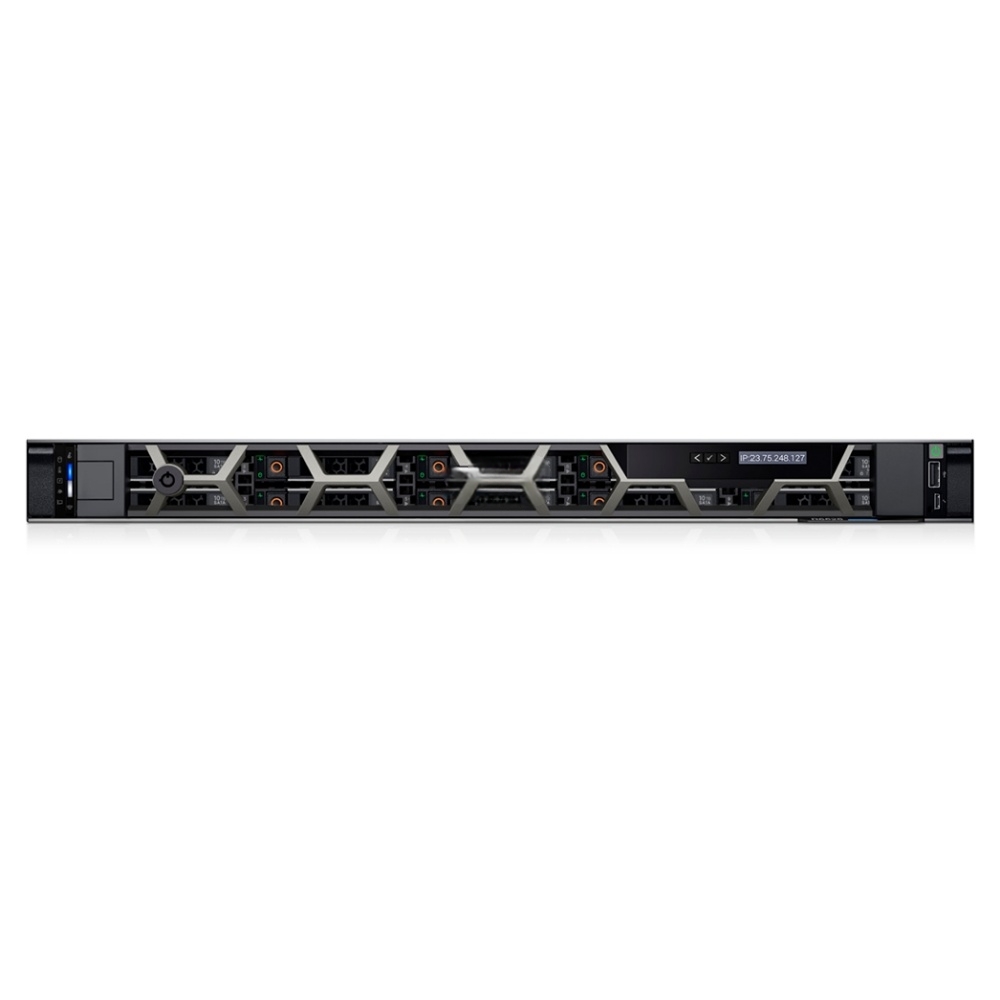

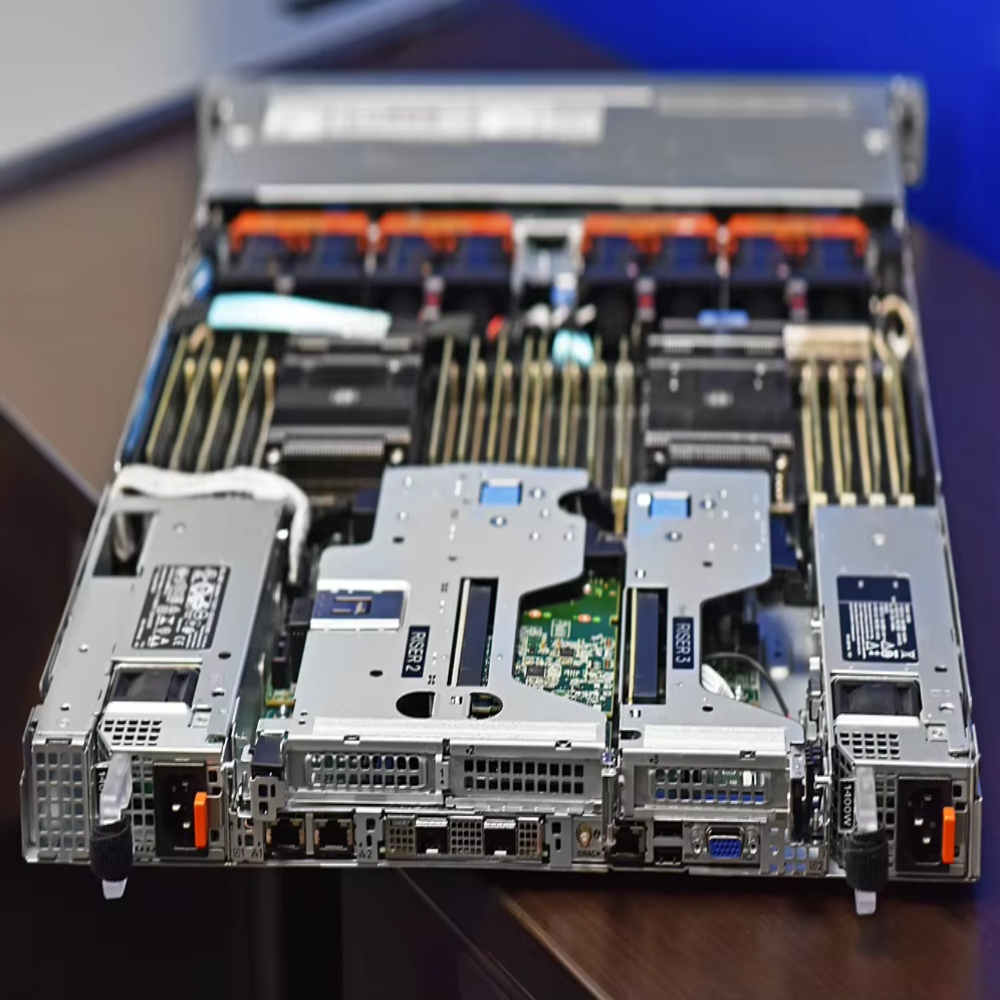

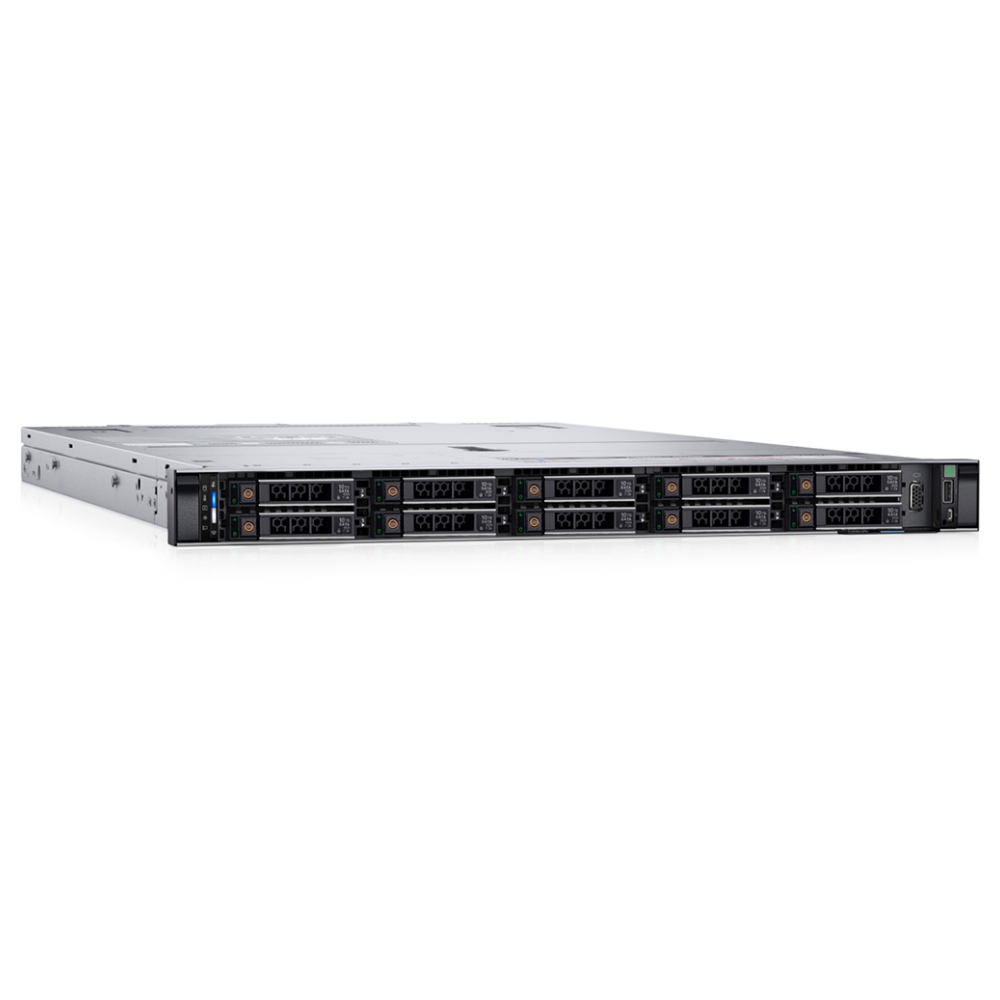

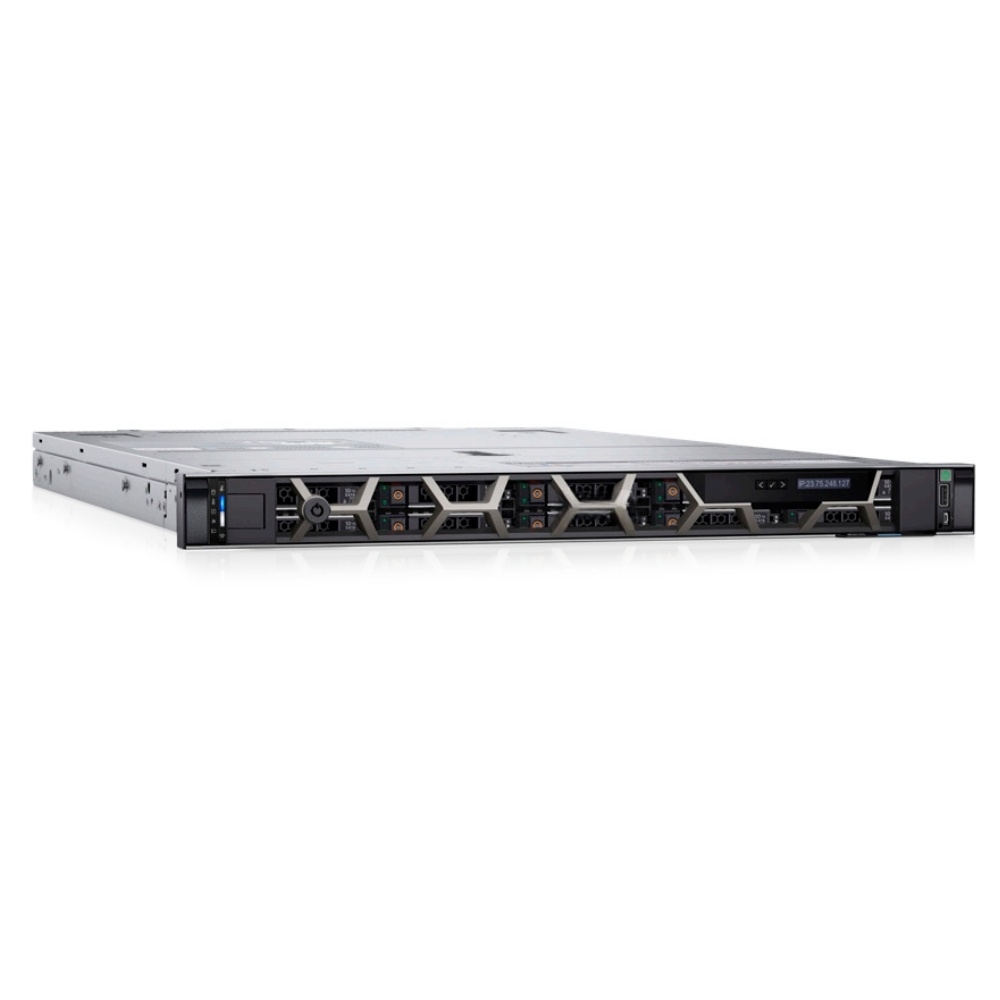

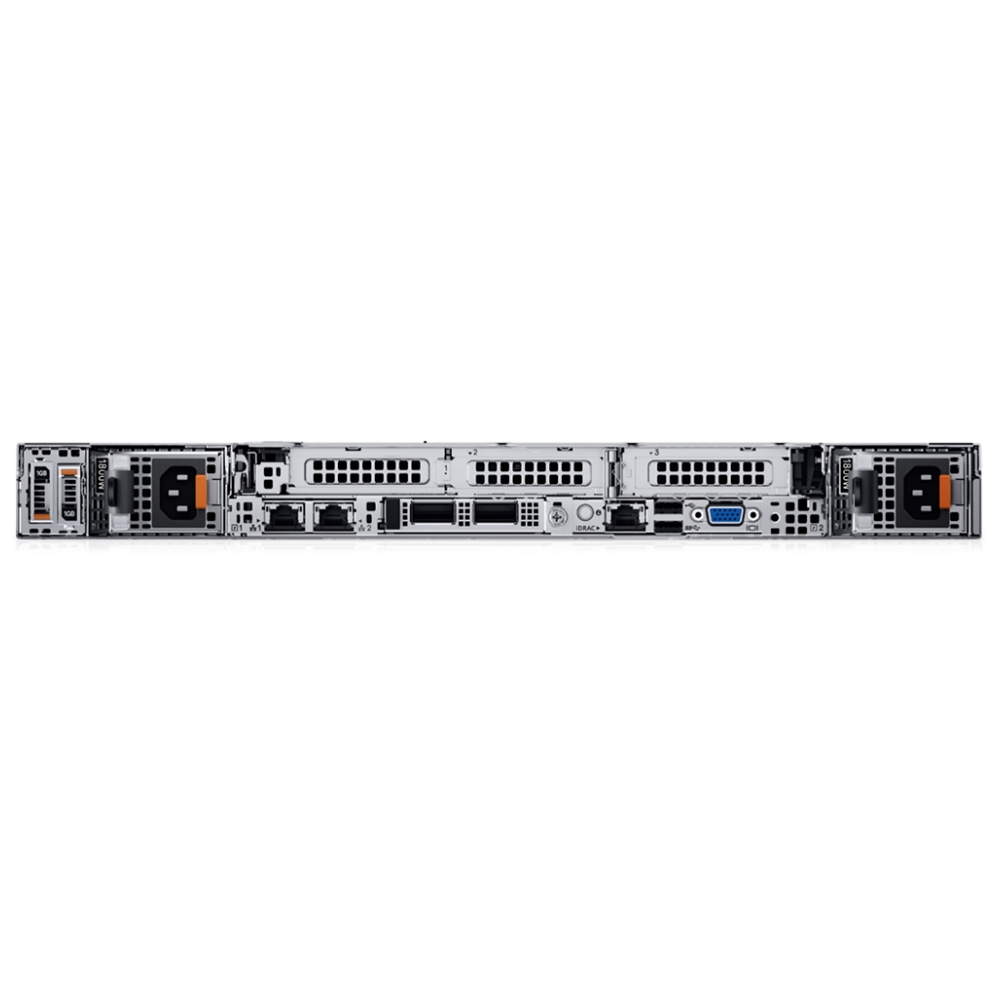

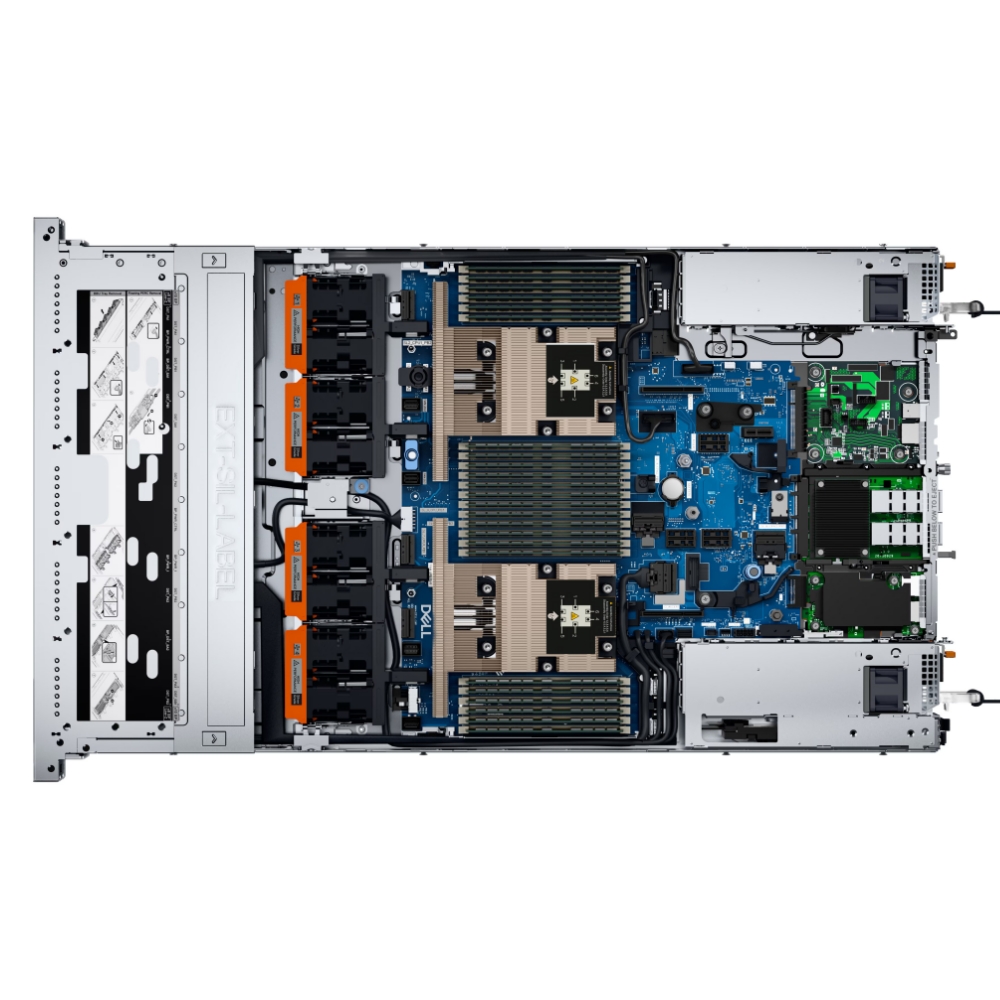

1U Dual-Socket Rack Server PowerEdge R6625 Breakthrough performance Server
The new PowerEdge R6625 is a 1U, dual-socket rack server. Designed to be the backbone of your data center, this powerful server provides ample performance and flexible, low-latency storage options in a dense air or Direct Liquid Cooling (DLC) configuration.
- Overview
- Related Products
R6625 Description
Extreme performance in a platform that grows with your business
• Using AMD EPYC 4th generation processor to deliver up to 50% more core count per single socket platform in aninnovative air or liquid-cooled chassis.
• Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access and transport of data optimizing application output.
• Optional DLC is available to more efficiently cool high-performance processors.
Experience more virtual machine density to support the most demanding applications
• Deliver more virtual machines per physical host using increased core count and higher memory footprint than previous generations.
• Improve responsiveness or reduce app load time for power users with up to 3 x single-wide full-length GPUs.
Expect increased expandability by storing more data in one server, saving space in your datacenter
• Scale your storage using up to 60% more E3.S NVMe drives and reduce your carbon footprint.
• Deliver more memory density with DDR5 (up to 6 TB of RAM) providing greater memory capacity.
• Support lower latency higher performance NVMe SSD in a hardware RAID solution helps maximize compute performance.
Feature | Technical Specifications |
Processor | Up to two AMD EPYC 4th Generation 9004 Series |
Memory | 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 4800 MT/s |
Drive Bays |
Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 10 x 2.5-inchSAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 14 x E3.S NVMe direct drives max 107.52 TB • Up to 16 x E3.S NVMe direct drives max 122.88 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB • Up to 2 x E3.S NVMe direct drives max 15.36.8 TB |
Storage Controllers | Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i |
From Factor | 1U Rack Server |
Power Supply | • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Mixed Mode Platinum 100-240 VAC or 240 HVDC hot swap redundant • 1400 W Mixed Mode Titanium 277 VAC or 336 HVDC hot swap redundant • 1100 W Mixed mode 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC , hot swap redundant |
Dimensions | • Height – 42.8 mm (1.685 inches) • Width – 482.0 mm (18.97 inches) • Depth – 822.89 mm (32.4 inches) with bezel – 809.05 (31.85 inches) without bezel |
