RS720A-E12-RS12 AMD EPYC Dual-processor 2U Rack Server Supports Up To 24 DIMM 8 NVMe 9 PCIe 5.0 Slots

Overview
Related Products

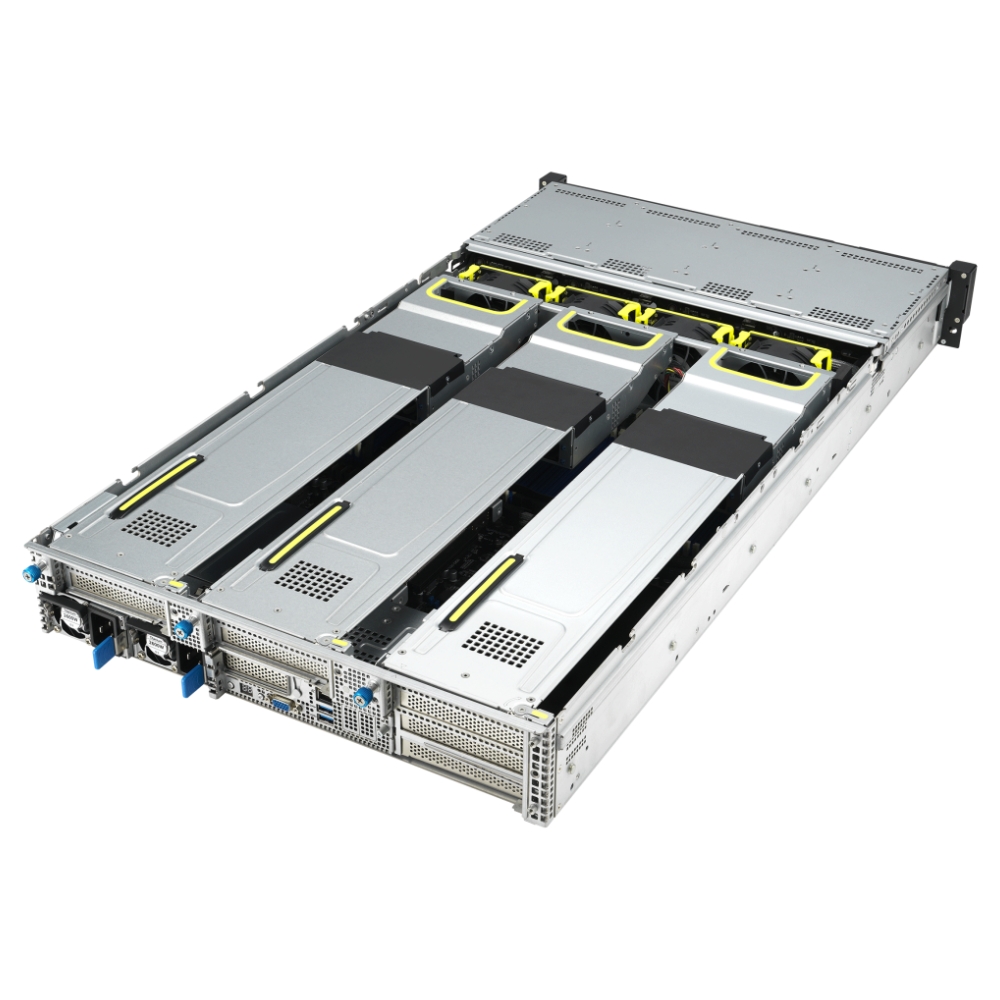

RS720A-E12-RS12 Server

Product Feature

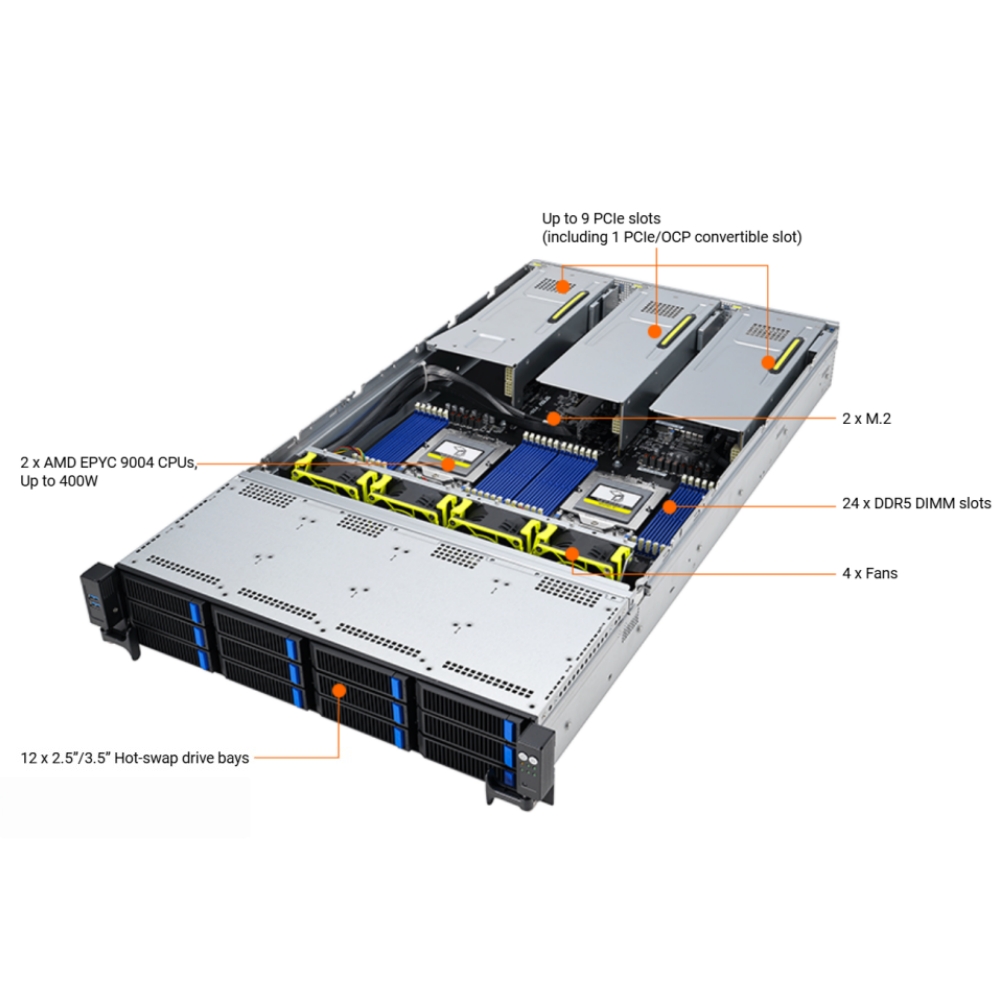

Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
Scale-up storage and expansion design: A total of 12 bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and nine PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
Read for AI and HPC workloads: Up to four dual-slot GPU, including NVIDIA A100*

Tech Specs

Processor	2 x Socket AMD EPYC 9004 Series (up to 400W)
Memory	Total Slots :24 (12-channel per CPU, 1 DIMM per CPU) Capacity :Maximum up to 3072GB per socket Memory Type :DDR5 4800/4400 RDIMM/ 3DS RDIMM Memory Size :128GB, 64GB, 32GB RDIMM 128GB, 64GB, 32GB 3DS RDIMM

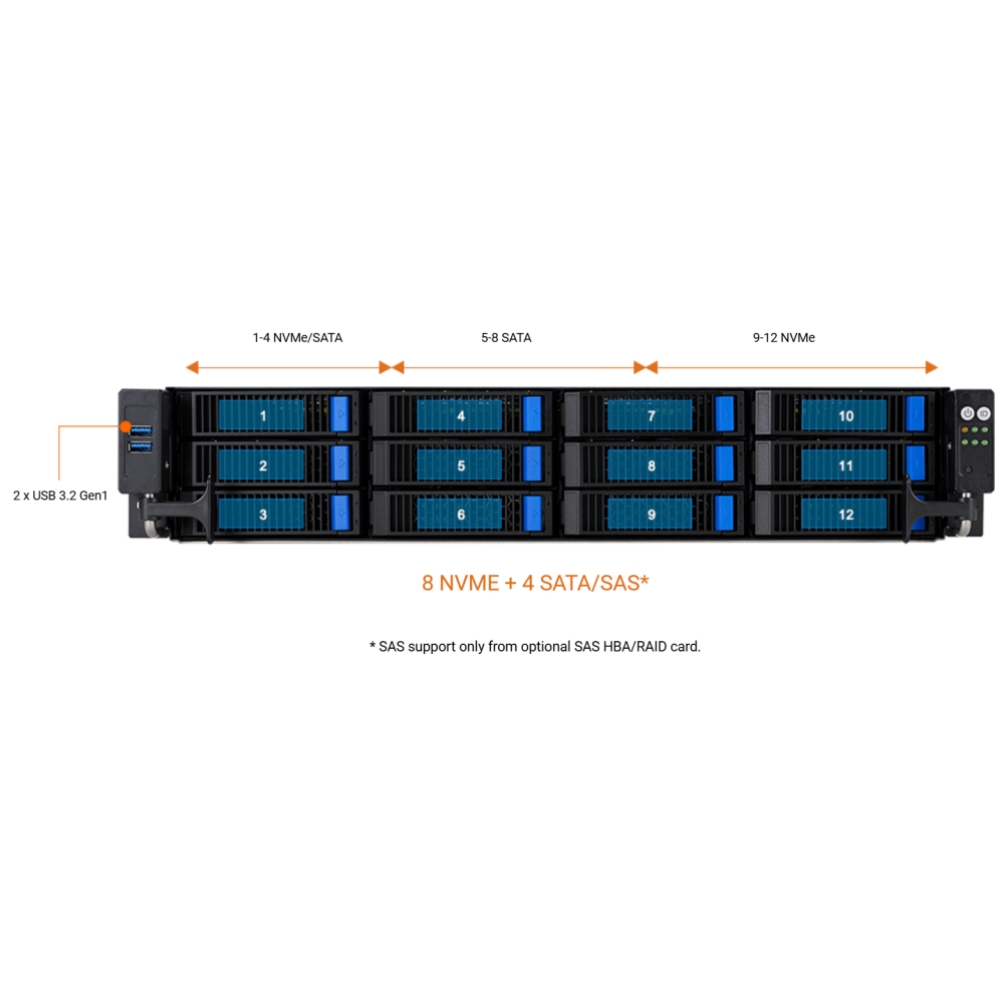

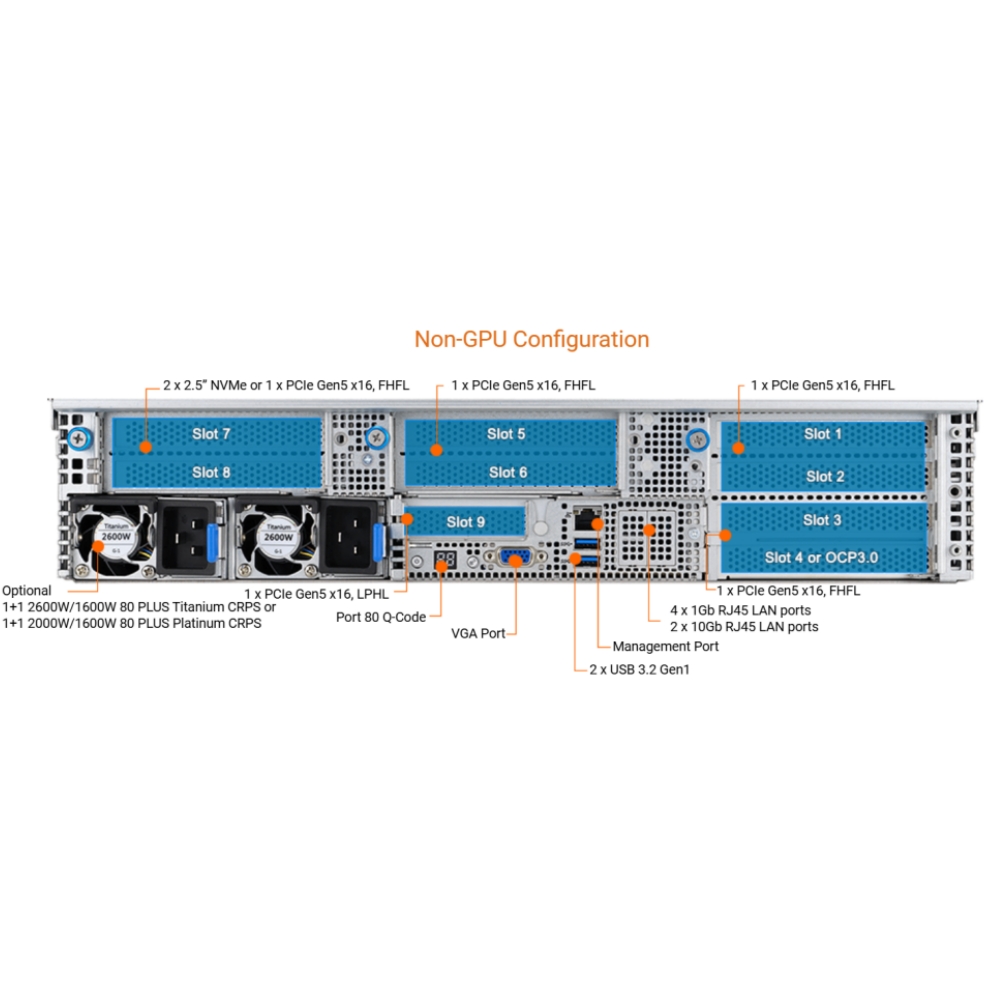

Drive Bays	Configuration #1 (Non-GPU support) Front Bays: 12 x 3.5”/2.5" hot-swap drive bay 4 x NVMe/SAS* + 4 x NVMe/SATA/SAS* + 4 x SATA/SAS* Rear Bays (Optional): 2 x 2.5" hot-swap drive bays Support 2 x NVMe Configuration #2 (GPU support) 12 x 3.5”/2.5" hot-swap drive bay 4 x NVMe/SAS* + 4 x NVMe/SATA/SAS + 4 x SATA/SAS Front Bays: 12 x 3.5" Hot-Swap drive bays Support up to 4NVMe/SAS* + 4NVMe/SATA/SAS* + 4SATA/SAS* Rear Bays: 2 x 2.5" Hot-Swap drive bays (Optional) Support 2NVMe** RAID card is required to support SAS hard drives. *Will occupied 2 PCIe slots

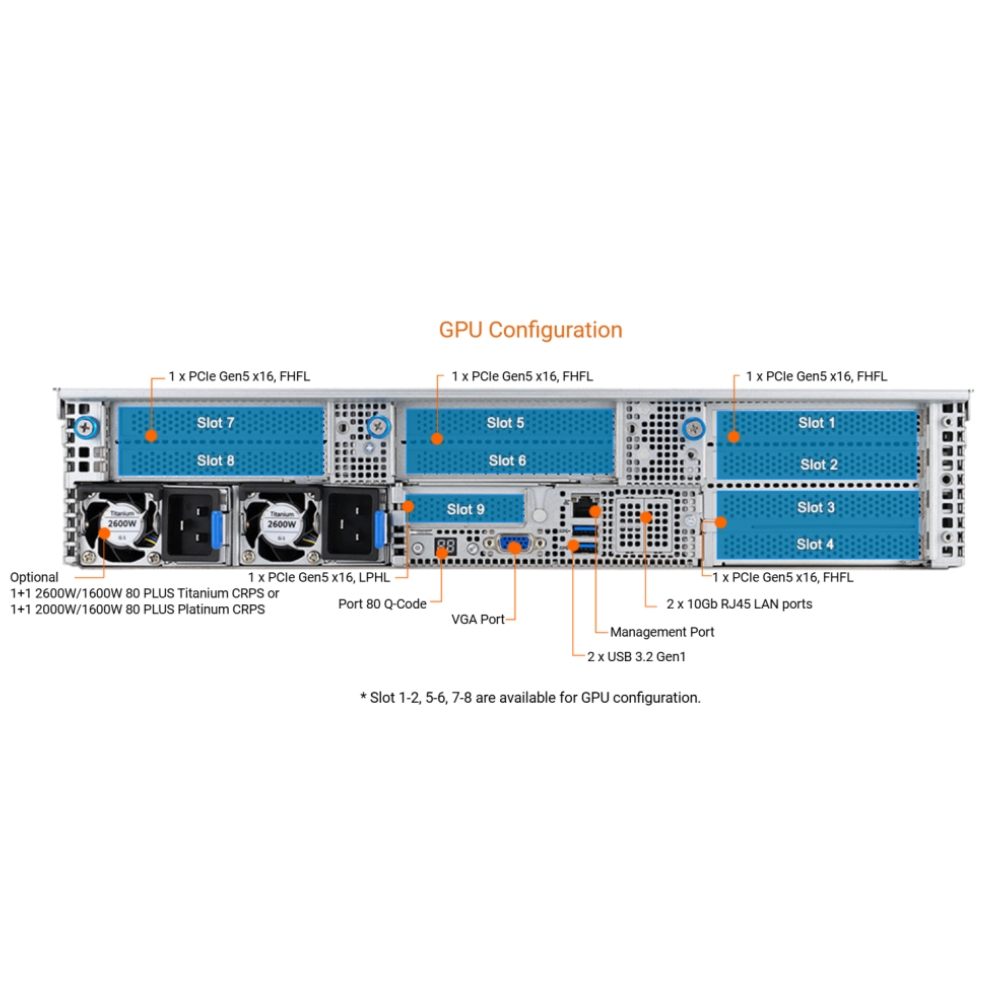

Networking	Configuration #1 (Non-GPU support) 1 x Mgmt LAN 4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional) Configuration #2 (GPU support) 1 x Mgmt LAN 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Graphic	Aspeed AST2600 64MB
Dimensions	840mm x 449mm x 88.1mm (33.07" x 17.68" x 3.47")
Weight	Net Weight : 19.3KG Gross Weight : 25.77KG
Power Supply	Configuration #1 (Non-GPU support) 1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium Power Supply 2000W/1600W 80 PLUS Platinum Power Supply Configuration #2 (GPU support) 1+1 Redundant AC: 2600W 80 PLUS Titanium Power Supply 2000W 80 PLUS Platinum Power Supply
