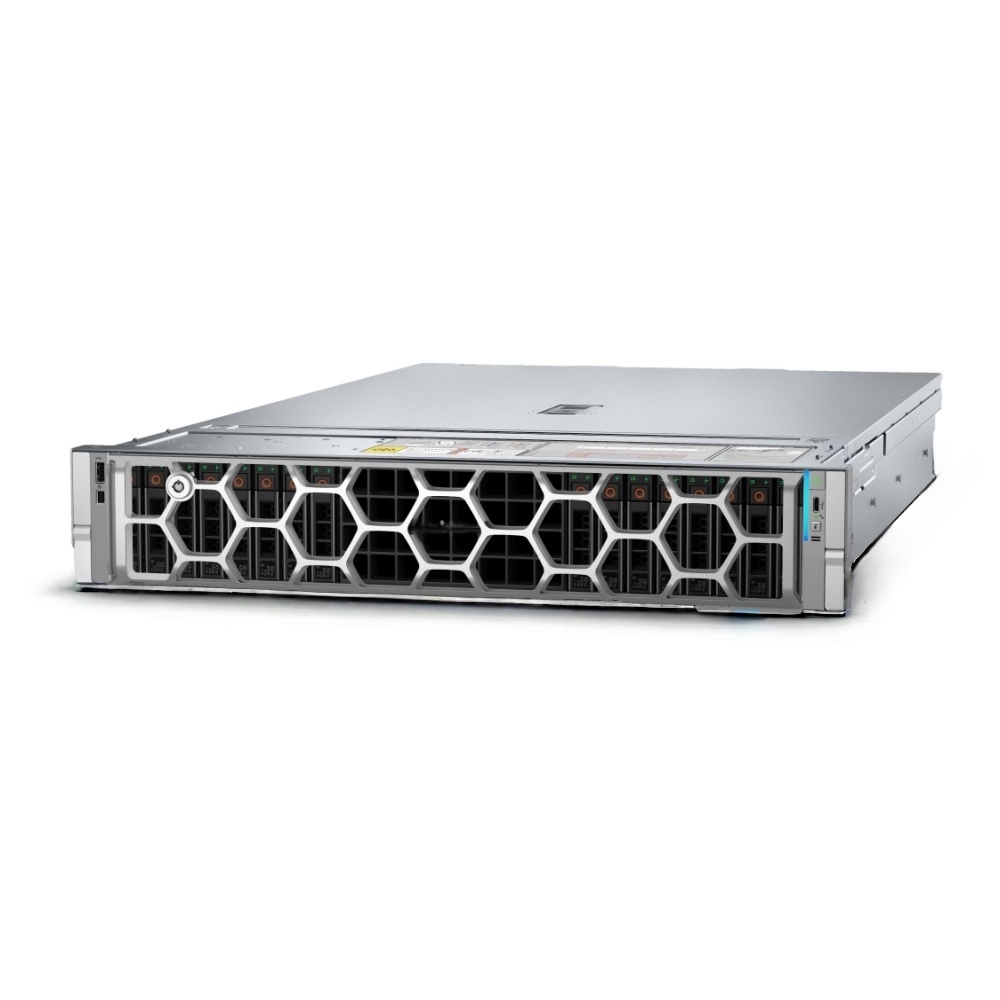

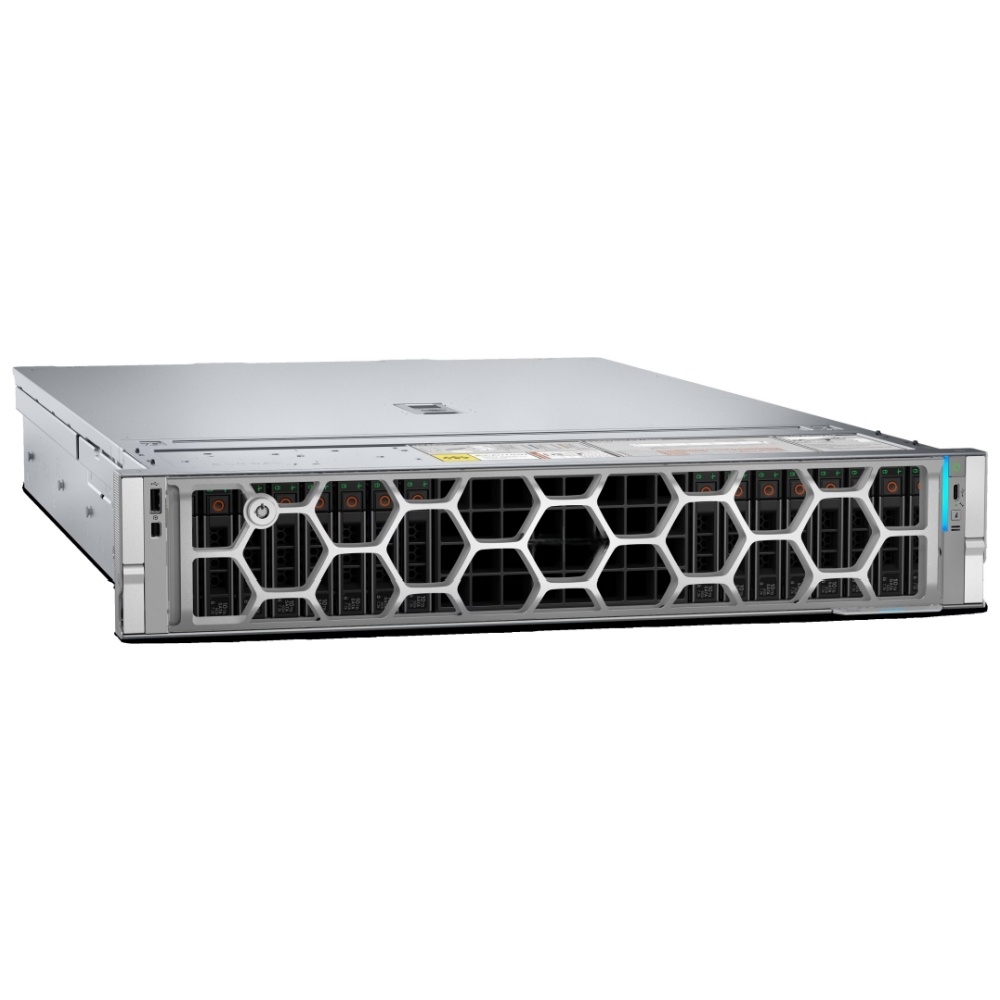

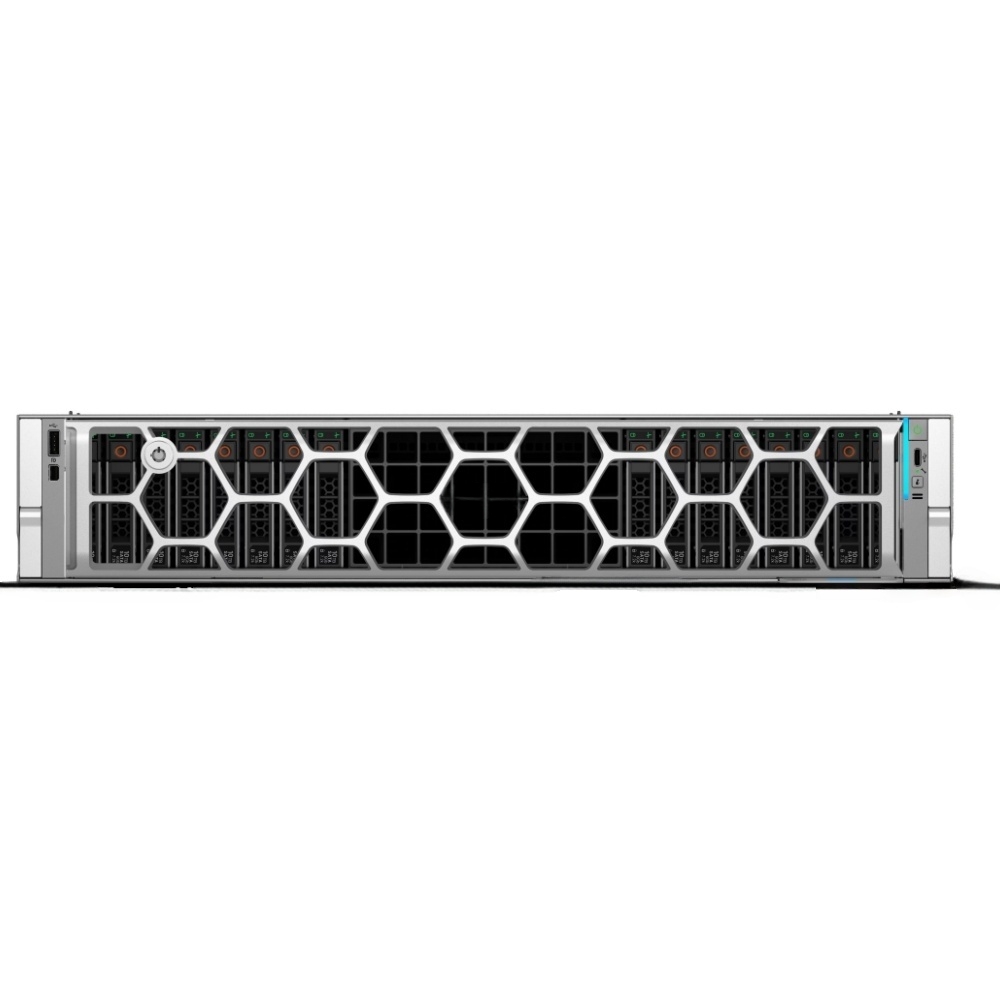

PowerEdge R7715
Versatility meets performance
Invest in a future-proof server for the data center that scales dynamically to push the limits of demanding applications, driving a faster return on investment.
Faster return when investing in the future of your business
The PowerEdge R7715 server is a single-socket optimized solution designed to deliver high performance, flexibility, and efficiency for a variety of applications. It is powered by 5th generation AMD EPYC™ processors and offers cutting-edge features that dynamically scale to push the upper limits of application performance
Next level compute in your data center
Our partnership with AMD allows us to provide customers with a powerful 2U server that can handle a variety of multi-core workloads.
• The 5th generation AMD EPYC™ processor in the PowerEdge R7715 offers up to two-times better performance compared to previous generations
• With dual OCP and DDR5 memory support, efficiently address I/O and richer storage needs in a single-socket design
New configuration options for targeted workloads
The PowerEdge R7715 offers great flexibility with multiple configuration options to suit diverse customer needs.
• With support for up to 8 PCIe slots in a generous 2U form factor, it can easily adapt to different workload requirements.
• An ideal choice for businesses looking for a versatile server that can grow with their evolving needs.
| Feature | Technical Specifications |
| Processor | One 5th Generation AMD EPYC 9005 Series processor |
| Memory |
• 24 DDR5 DIMM slots, supports RDIMM 6 TB max*, speeds up to 5200 MT/s
• Supports registered ECC DDR5 DIMMs only
|
| Storage Controllers |
• Internal Controllers (RAID): PERC H365i, H965i, H975i*
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
• External HBAs (non-RAID): HBA465e
|
| Drive Bays |
Front bays:
• 2 x U.2
• 12 x 3.5-inch SAS/SATA*
• 8 x 2.5 Universal/ 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA*
• 16 x 2.5-inchSAS/SATA SSD + 8 x U.2 NVMe drives
• 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S
|
| Power Supply |
• Platinum 800W, 1100W
• Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC**, 1800W**, 2400W**, 3200W, 3200W 277Vac & HVDC**
• Telco: 1400W -48VDC
|
| Dimensions |
• Height – 86.8 mm (3.41 inches)
• Width – 482.0 mm (18.97 inches)
• Depth – 802.4 mm (31.59 inches) with bezel
801.51 mm (31.55 inches) without bezel
|
| From Factor | 2U Rack Server |
| Bezel | Optional metal bezel |
