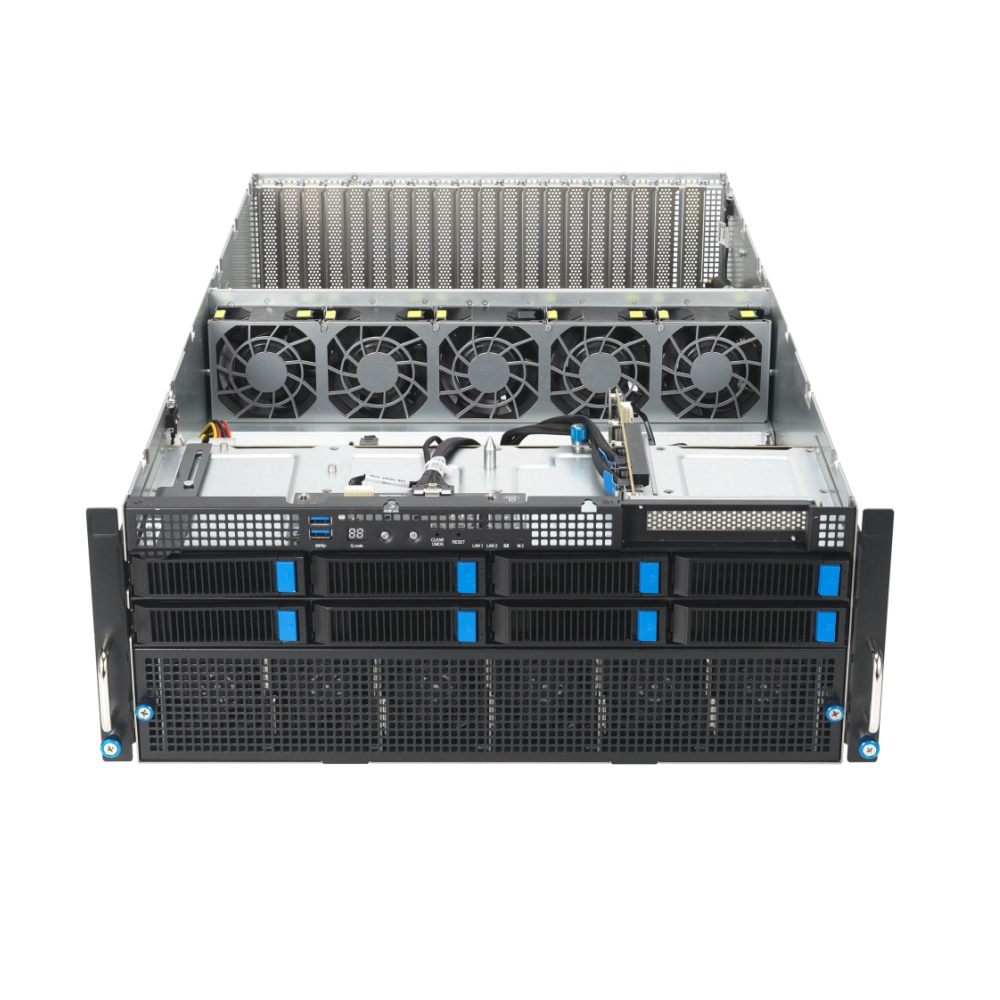

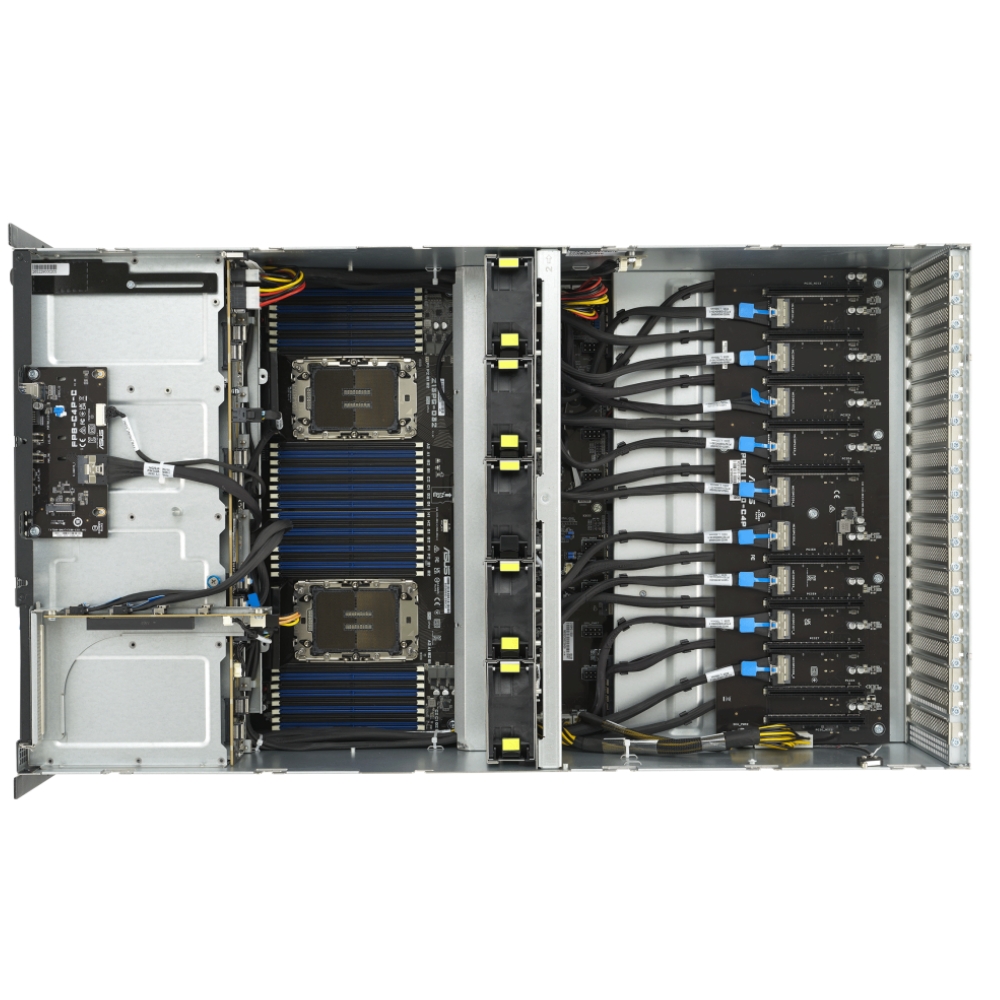

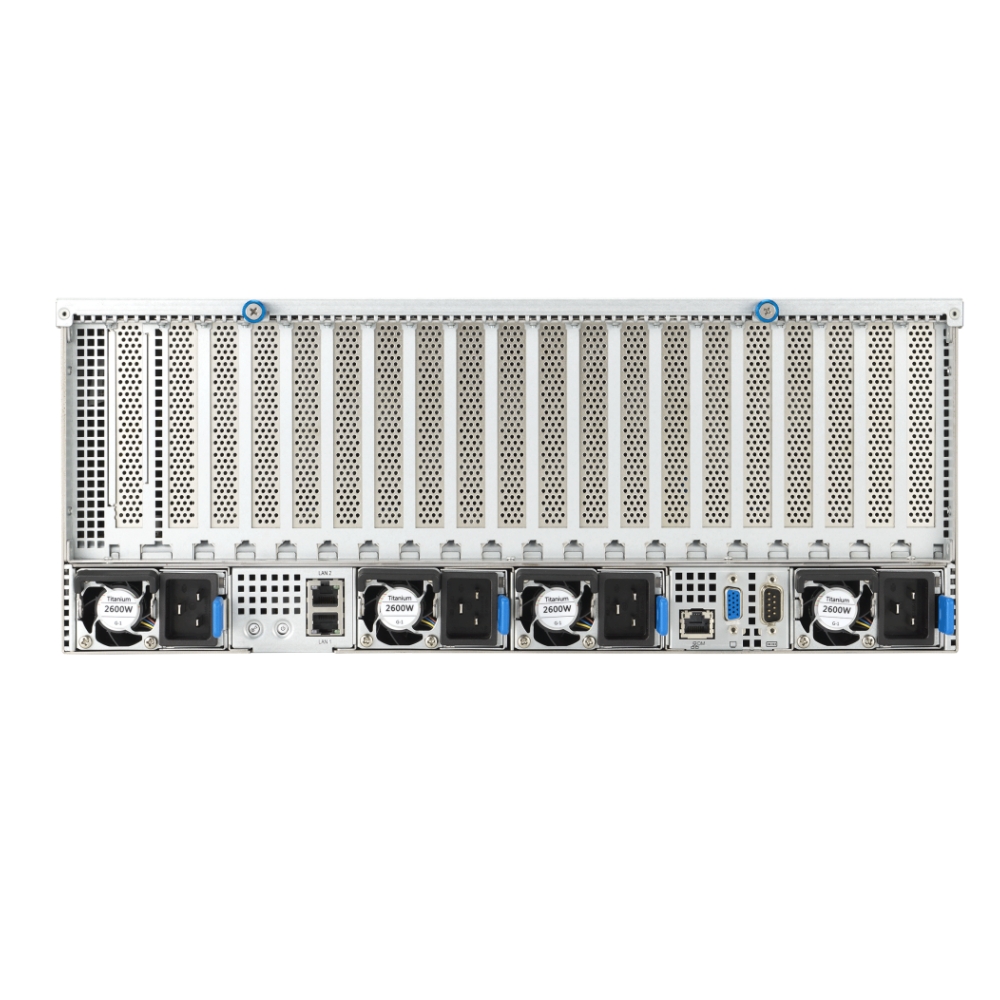

ESC8000-E11 New Generation High Performance 4U Server
Powerful performance: Powered by 5th Gen Intel Xeon Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink bridge, and NVIDIA Bluefield DPU support to enable performance scaling
Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
Cooling solutions: Enhanced air cooling based on CPU TDP for versatile workloads
Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 11 PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
NVIDIA-Certified Systems™ - OVX Servers: Optimized for NVIDIA OVX™ L40S Server with 8 GPUs configuration
- Overview
- Related Products
ESC8000-E11 is an 5th Gen Intel Xeon Scalable Processors dual-socket server built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to eight dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink Bridge to enable scaling of performance with increased bandwidth —ready to match your AI and HPC workloads.
Product parameter
| From Factor | 4U Rack Server |
| Processor | Dual Socket 4th Gen Intel Xeon Scalable Processors Family(350w) 5th Gen Intel Xeon Scalable Processors Family(350w) |
| Expansion Slots | 1 x PCIe x8 slot (Gen5 ,LP,HL) for HBA/RAID cards 8 x PCIe x16 slot (Gen5, FH,FL) for dual-slot GPU card 1 x PCIe x16 slot (Gen5 ,FH,FL) for NIC card 1 x PCIe x8 slot (Gen5 FH,FL) for NIC Card or Gen5 x16 OCP socket option |
| Memory | 32 x DIMM slots ；up to 4 + 8 TB ；DDR5 5600/5200/4800/4400 RDIMM/ 3DS RDIMM （64GB, 32GB, 16GB RDIMM）（256GB, 128GB RDIMM 3DS） |
| I/O slots | Front I/O Ports：2 x USB 3.2 Gen1 ports 1 x VGA port Rear I/O Ports： 1 x COM port 2 x 10GbE/1GbE LAN ports (RJ45, build for order) 1 x Management port (RJ45) |
| Graphic | Aspeed AST2600 64MB |
| Drive Bays | 8 x 3.5" Front Hot-swap Storage Bays (backplane supports up to 8 x NVMe/SATA/SAS*) |
| Power Supply | 2+2 Redundant 2600W/3000W 80 PLUS Platinum Power Supply 2+1 Redundant 3000W 80 PLUS Platinum Power Supply |
| Dimensions | Size: 800mm x 440mm x 174.5 mm （31.5’’x17.32’’x 6.87’’） Net Weight: 27KG Gross Weight: 57KG |
