Ultimate performance for ultimate projects-Z820 Workstation
Built for high-end computing and visualization.
The dual-processor HP Z820 Workstation delivers outstanding performance, award-winning industrial design, and tool-free serviceability in the industry’s most expandable chassis. With next generation Intel Xeon processors, support for up to 16 processing cores, and the latest professional graphics, you’ll tackle even the most demanding projects like never before.
Unmatched Design. Inside and Out.
With its expandable design, the HP Z820 Workstation gives you the confidence to produce your best work. Designed for a wide-range of needs, the HP Z820 offers enhanced tool-free access and unbelievable power at whisper-quiet levels. The result is unparalleled design power in a system that is sleek and uncluttered, inside and out.
- Overview
- Related Products
Built for high-end computing and visualization.
The dual-processor HP Z820 Workstation delivers outstanding performance, award-winning industrial design, and tool-free serviceability in the industry’s most expandable chassis. With next generation Intel Xeon processors, support for up to 16 processing cores, and the latest professional graphics, you’ll tackle even the most demanding projects like never before.
Unmatched Design. Inside and Out.
With its expandable design, the HP Z820 Workstation gives you the confidence to produce your best work. Designed for a wide-range of needs, the HP Z820 offers enhanced tool-free access and unbelievable power at whisper-quiet levels. The result is unparalleled design power in a system that is sleek and uncluttered, inside and out.
Product parameter
| Processor | Intel Xeon E5 Series Processor |
| Drive Bays | 3 external 5.25-inch bays, 4 internal 3.5-inch bays |
| Chipset | Intel C602 Chipset |
| Memory | 16 DIMM slots, up to 512 GB, 8-channel ECC DDR3 1600 MHz, 4 channels per CPU |
| Storage | Up to (5) 3.5-inch 7200 rpm SATA drives: 250, 500 GB, 1, 2 TB, up to (4) 3 TB, 14 TB max; Up to (6) 2.5-inch 10K rpm SAS drives: 300, 600 GB SFF, 3.6 TB max; Up to (5) 3.5-inch 15K rpm SAS drives: 300, 450, 600 GB, 3 TB max; Up to (6) 2.5-inch SATA solid state drives: 128, 160, 256, 300 GB, 1.8 TB max |
| Graphics | Professional 2D: NVIDIA NVS 300, NVIDIA NVS 310,AMD FireProTM 2270 Entry 3D: NVIDIA Quadro 410, ATI FireProTM V3900, NVIDIA Quadro 600, ATI FireProTM V4900 Mid-range 3D: NVIDIA Quadro 2000, AMD FireProTM V5900 High-end 3D: NVIDIA Quadro 4000, AMD FireProTM V7900, NVIDIA Quadro 5000, NVIDIA Quadro 6000, NVIDIA Tesla C2075 |
| Power Supply | 850W 88% Efficient wide-ranging, active Power Factor Correction 1125W 90% Efficient wide-ranging, active Power Factor Correction |

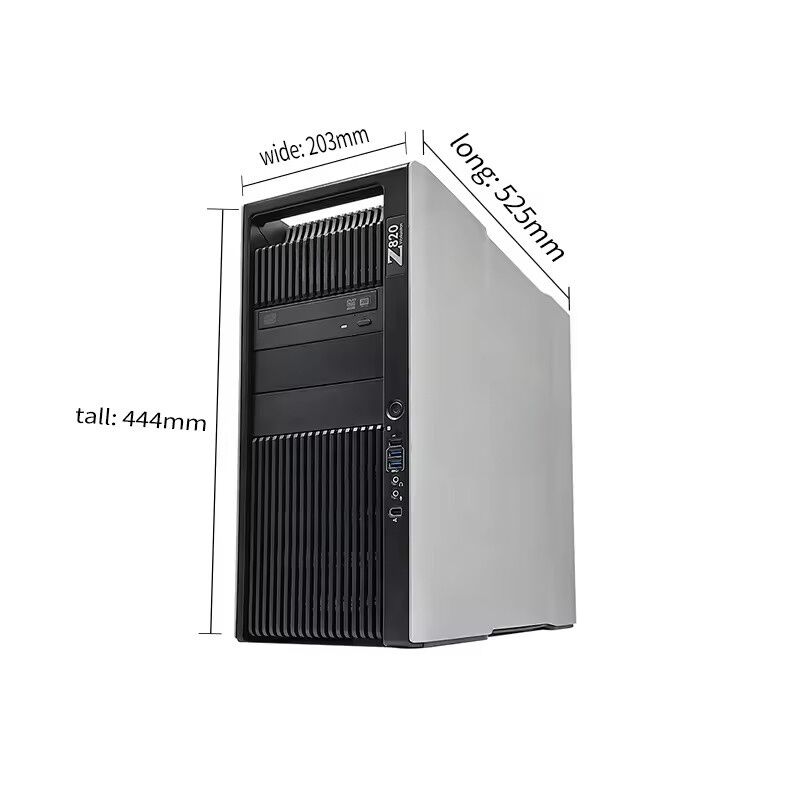

| Dimensions (H x W x D) | 17.5 x 8.0 x 20.7 in (44.4 x 20.3 x 52.5 cm) |
