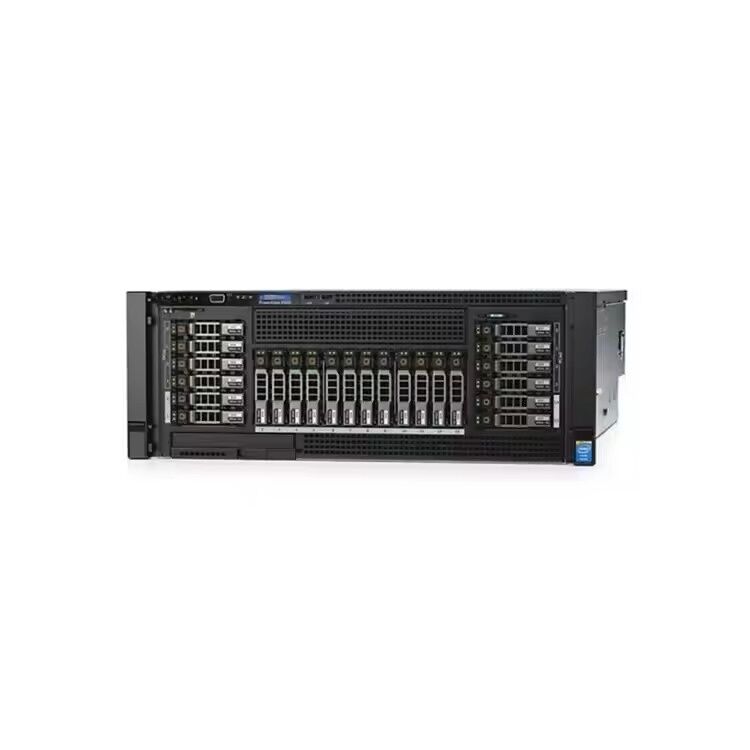

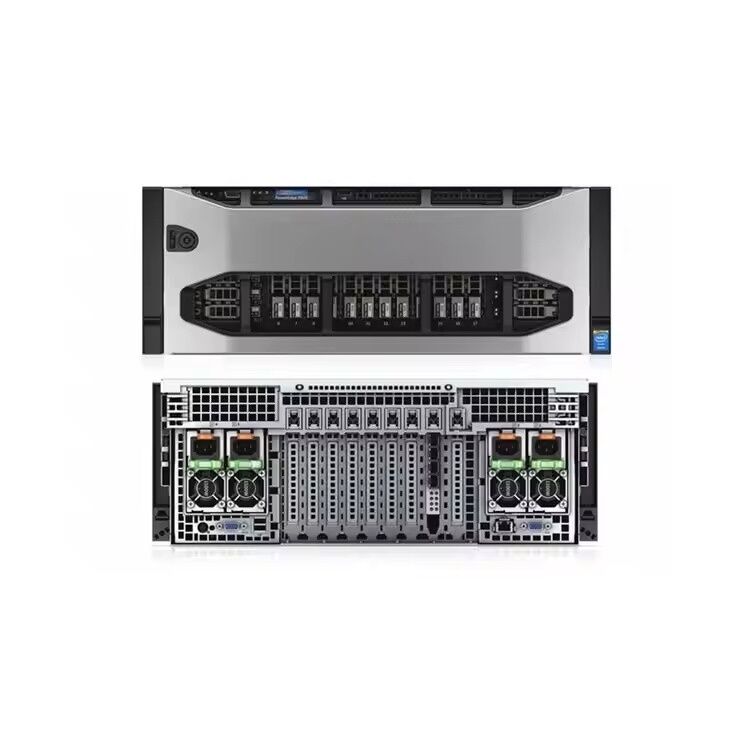

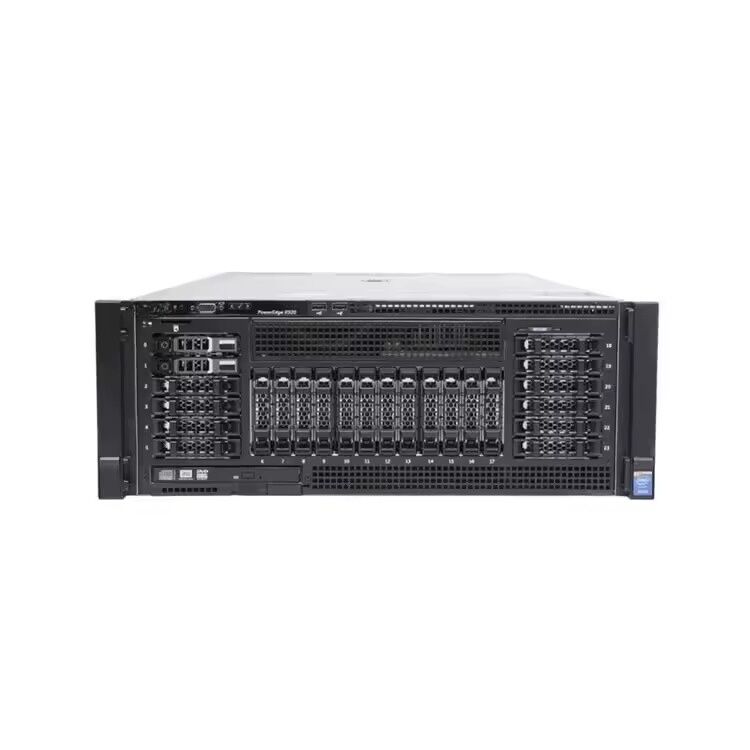

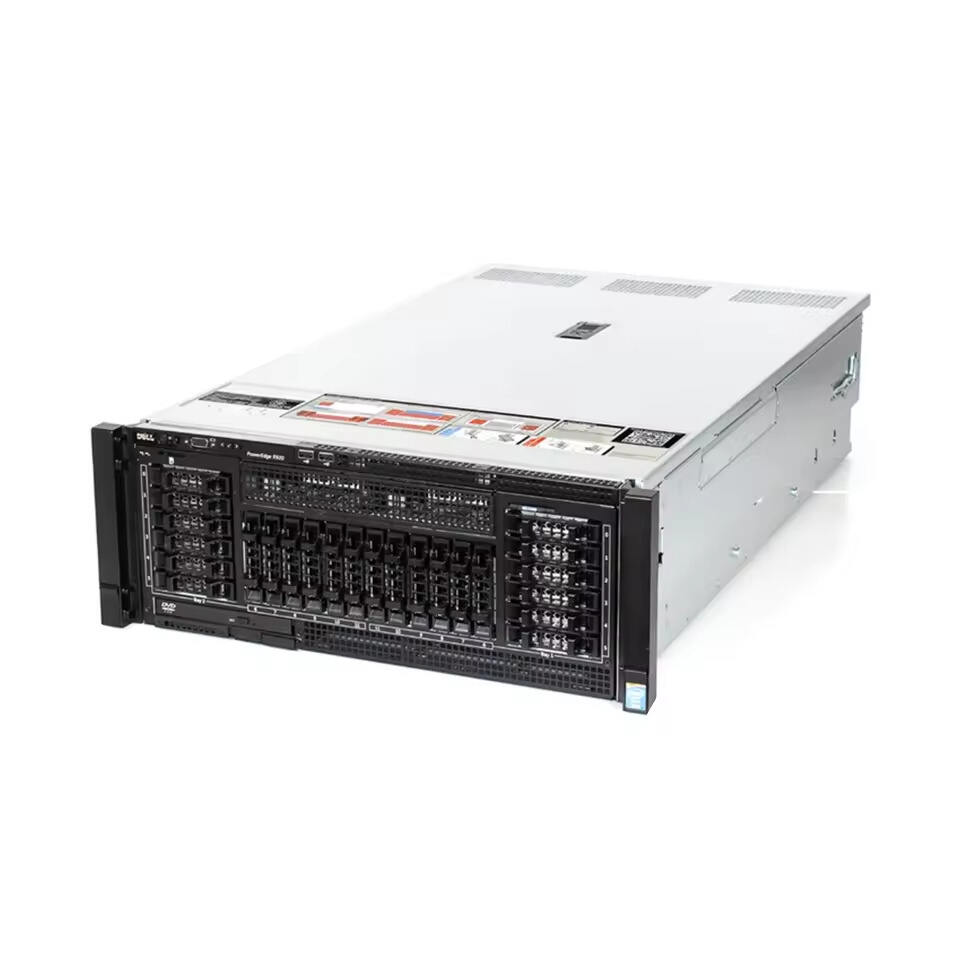

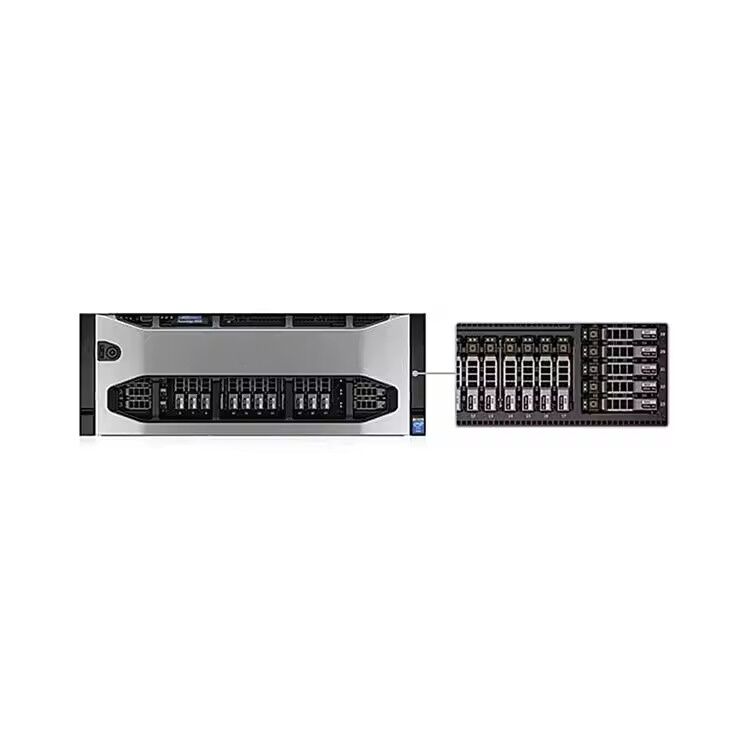

PowerEdge R920 is Fastest Four‐socket 4U Server and 96 DIMM Slots Memory
Scale to match the challenge
React at the speed of business with the R920’s highly scalable memory, I/O options and storage components. With 4Intel Xeon E7 v2 processors, 96 DIMMs, 10 integrated PCI Express® (PCIe) expansion slots and 24 internal storage drives, the R920 gives you processing power, flexibility and capacity for growth. Build out your SAN capacity as your business grows. Keep pace with the increasing data demands of large enterprise applications with H730P PERC, dual PERC capability and up to eight NVMe Express Flash PCIe SSDs.
Get results faster
Accelerate the time it takes enterprise applications to deliver services by eliminating the chokepoint— the speed of access to data. Use the R920’s 24 internal storage drives, or take advantage of its 10 PCIe expansion slots to drive large scale SAN storage. With options like high‐performance 12Gbps SAS drives, dual RAID controller capabilities and Express Flash NVMe devices, you can reduce storage access times and improve overall application efficiency.
- Overview
- Related Products
Designed to run mission‐critical applications for midsized and large enterprises, the Dell PowerEdge R920 is a compute‐intensive rack server with highly scalable memory and impressive I/O capabilities to match. With up to four Intel Xeon E7 v2 multi‐core processors, the ability to support dual RAID controllers and up to 6TB of memory, the PowerEdge R920 can readily handle the most demanding workloads and is ideal for large databases, Enterprise Resource Planning, business decision applications and high‐performance computing. The PowerEdge R920 is also an excellent choice for organizations looking to migrate from an outdated RISC architecture.
Product parameter
| From Factor | 4U Rack |
| Processor | Intel Xeon processor E7‐4800 v2 and E7‐8800 v2 product families (up to 4) Intel Xeon processor E7‐2800 v2 product family (up to 2) |
| Chipset | Intel C602J |
| Memory | Up to 6TB (96 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR3L, RDIMM, LR‐DIMM up to 1600MT/s |
| I/O slots | Up to 10 PCIe slots; 8 PCIe 3.0, + 1 RAID slot, + 1 NDC slot + 2 optional PCIe slots |
| RAID controllers | Internal controllers: PERC H730P External HBAs (RAID): PERC H810 / 6Gbps SAS HBA |
| Drive Bays | • Up to 24 2.5” hot‐plug 12Gb/6Gb SAS HDD or SAS/SATA SSD • Up to 8 front‐accessible Express Flash NVMe PCIe SSD (PCIe 3.0) |
| Power Supply | Hot‐plug redundant PSUs: 750W AC, 1100W AC and DC |
| Dimensions | Height : 6.8 inch (172.6 mm) Width: 18.99 inch (482.4 mm) Depth: 31.59 inch (802.3 mm) (with PSU and bezel) |
