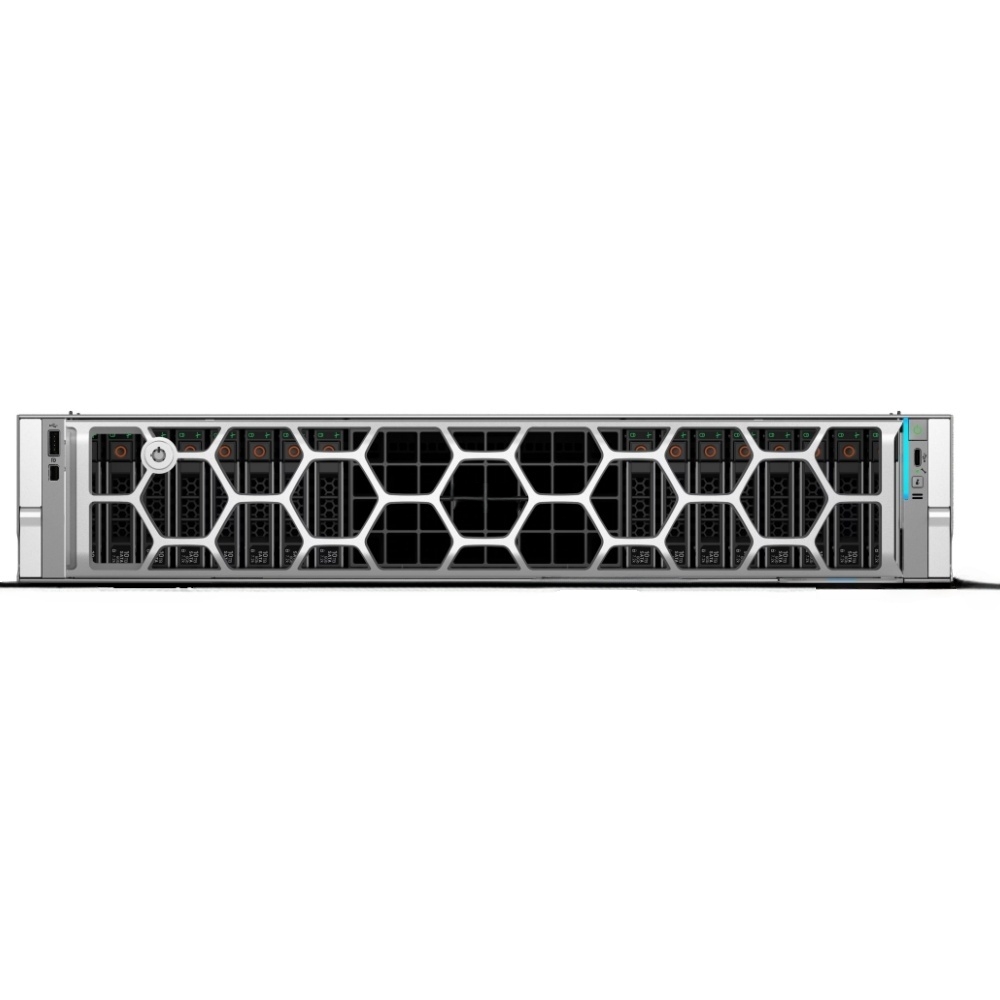

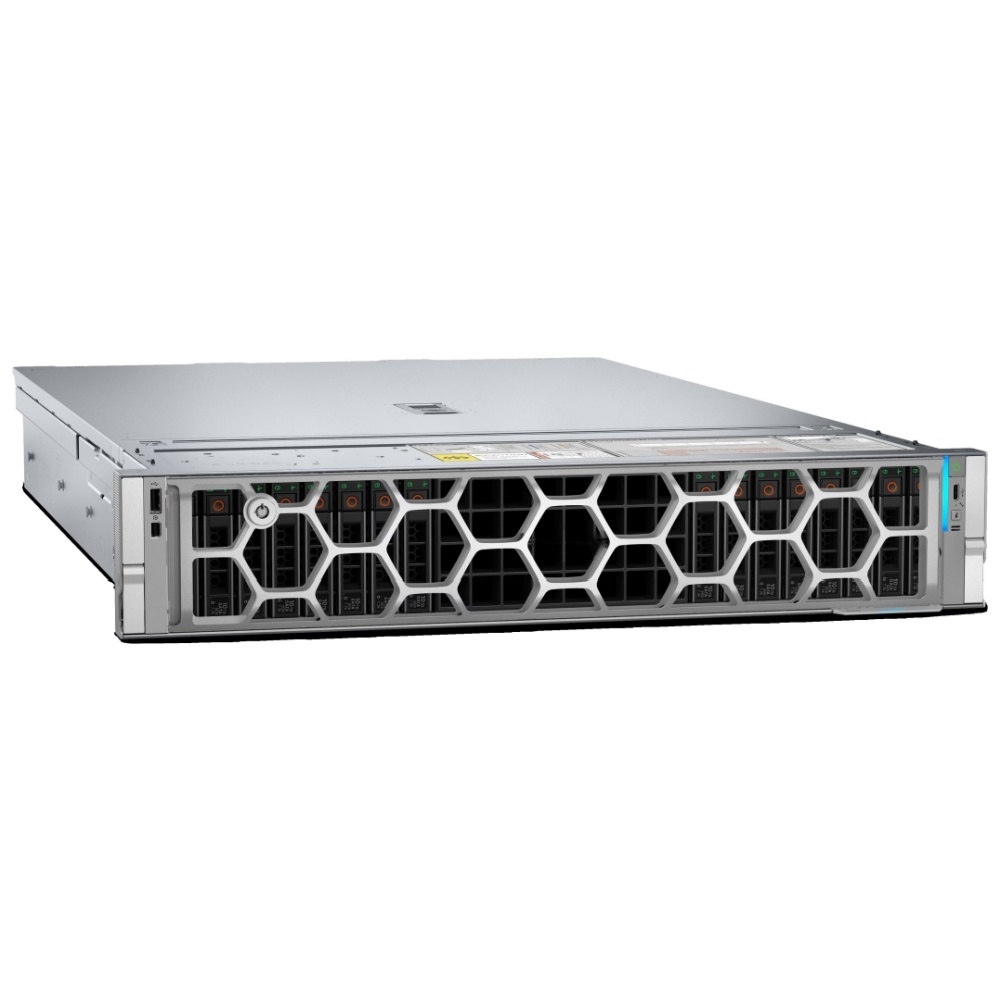

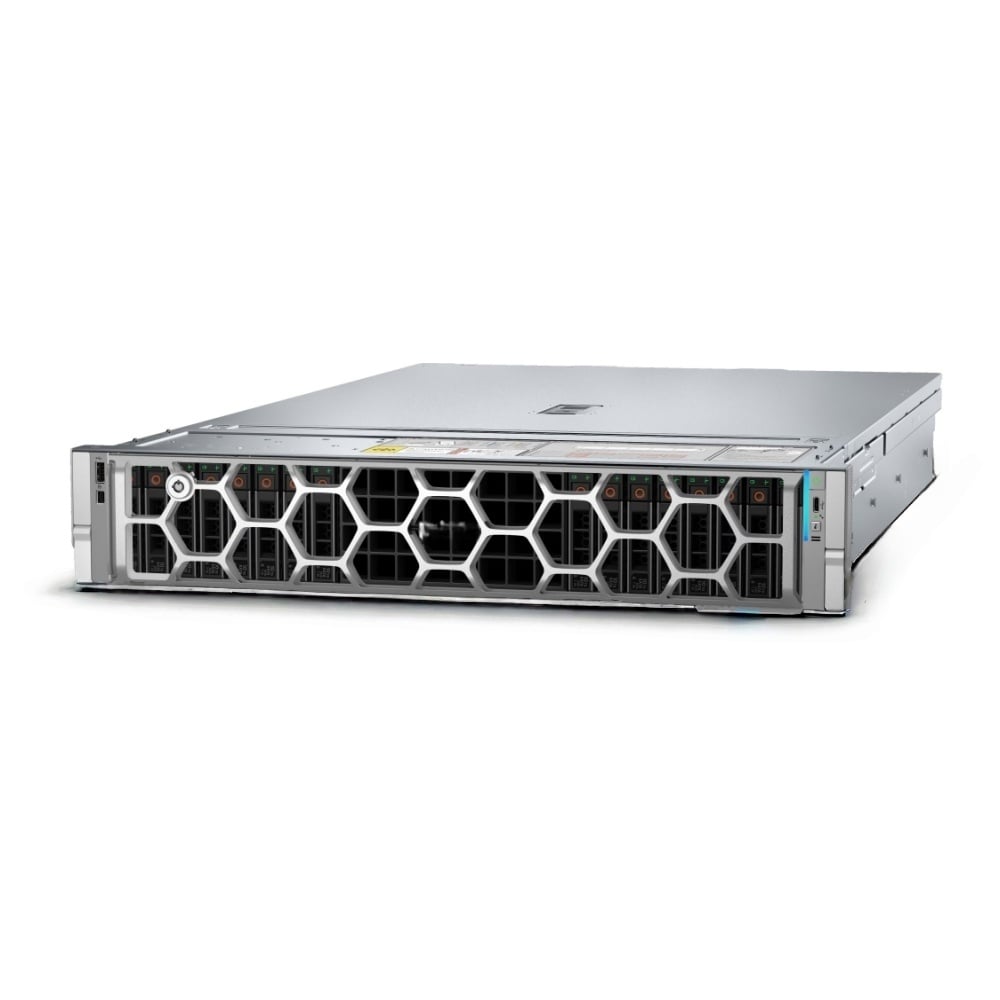

PowerEdge R7725
Versatility Meets Performance
The new Dell PowerEdge R7725 is designed to be the foundation of your data center. This exceptionally powerful server provides excellent performance, flexibility and low-latency storage options in an air-cooled configuration.
Breakthrough performance that scales
Delivering breakthrough performance that scales for traditional and emerging workloads, including big data analytics, AI/ML and high-performance compute (HPC), using the latest performance and density with optional acceleration. :
Striving for next-level compute
Our partnership with AMD allows us to provide customers with a powerful 2-socket 2U server that can handle a variety of workloads. The PowerEdge R7725 is perfect for high-requirement data applications with greater flexibility and multiple configuration options to suit diverse customer needs.
• Maximize performance with two AMD 5th Generation EPYC processors packed with 50% more cores.
• Memory density with DDR5 (up to 6 TB of RAM) memory capacity.
• Up to 8x Gen 5 PCIe slots and dual OCP offering flexibility to meet workload requirements.
• Support for AI workloads with up to 2 x DW; 6 x SW GPUs.
Energy Efficiency through consolidation
Lower your total cost of ownership while reducing energy consumption and make the best use of existing data center space
• Smart Cooling design allows most configurations to be air-cooled
• Improved heat sinks for better thermal performance
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory to-site integrity assurance. The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls safeguard trusted operations.
| Feature | Technical Specifications |
| Processor | Two 5th Generation AMD EPYC 9005 Series processors |
| Memory | • 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only |
| Drive Bays | Front bays: • 12 x 3.5-inch SAS/SATA* • 8 x 2.5-inch Universal / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA* • 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID • 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S |
| Storage Controllers | • Internal Controllers (RAID): PERC H365i,H965i, H975i* • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) • External HBAs (non-RAID): HBA465e |
| Power Supply | • Platinum: 800W, 1100W • Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC**, 1800W**, 2400W**, 3200W, 3200W 277Vac & HVDC** • Telco: 1400W -48VDC |
| Dimensions | • Height – 86.8 mm (3.42 inches) • Width – 482 mm (18.98 inches) • Depth – 802.4 mm (31.59 inches) with bezel 801.51 mm (31.55 inches) without bezel |
| From Factor | 2U Rack Server |
| Bezel | Optional metal bezel |
