PowerEdge R770 Rack Server 2U Two-socket Rack Server Maximum Performance with Optimized Power
The PowerEdge R770 is a 2U, two-socket rack server that enables high-performance computing for optimal power efficiency in your data center.
- Overview
- Related Products
PowerEdge R770 Rack Server
The PowerEdge R770 is a 2U, dual-socket rack server designed for high performance computing with optimal power efficiency and balanced performance to boost your data center productivity. It balances advanced computing power with virtualization, artificial intelligence inferencing, cloud-native applications, hyperscale workloads, and scale
out databases.
Purpose-built for enterprise and scalable infrastructures, the PowerEdge R770 offers standardization that easily integrates into existing environments, equipped with two Intel® Xeon® 6 processors with E-cores and P-cores it offers up to 1.69x better performance per watt than previous models, improving power efficiency and increasing rack density.
The addition of GPU support further amplifies computational power, ensuring high performance with lower energy use.

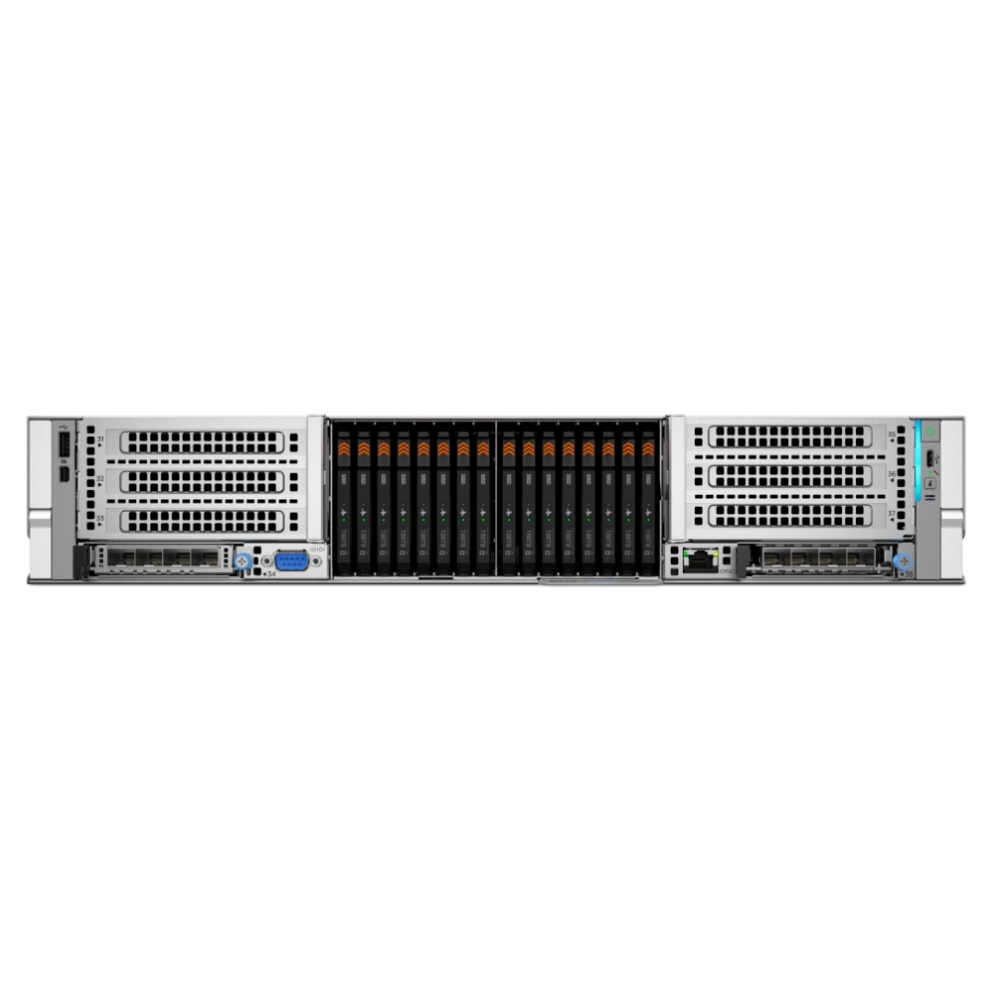

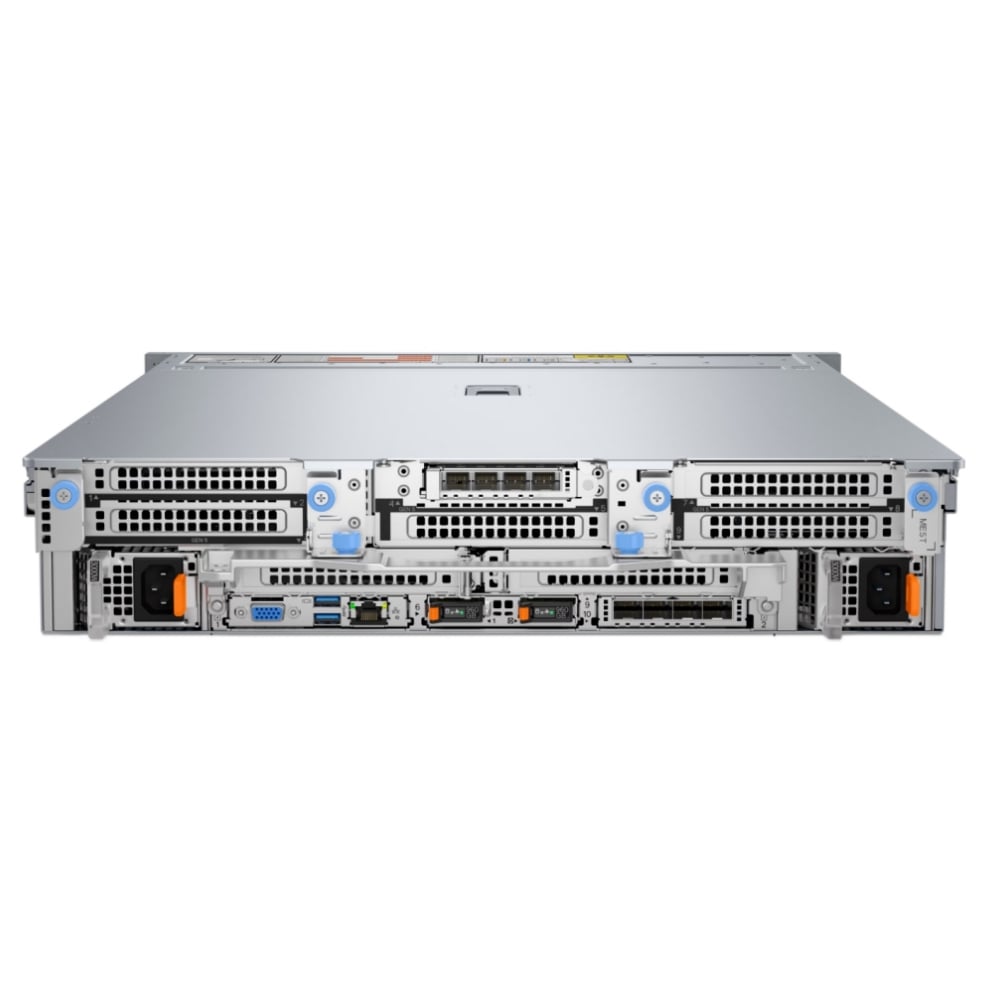

These servers are available in rear I/O hot aisle and front I/O cold aisle configurations. The front I/O cold aisle improves serviceability, reduces maintenance time, and enhances efficiency, reliability, and uptime, supporting your sustainability goals by optimizing cooling and energy use. It also features Dell’s Smart Power and Cooling Technology,
optimized for air cooling to significantly reduce energy consumption, contributing to long-term operational savings.
| Feature | Technical Specifications |
| Processor | Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor |
| Memory | • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s • Supports registered ECC DDR5 DIMMs only |
| Front and Rear Bays | • No backplane configuration • Up to 8 x EDSFF E3.S Gen5 NVMe max 122.88 TB also comes with FIO configuration • Up to 16 x EDSFF E3.S Gen5 NVMe max 245.76 TB also comes with FIO configuration • Up to 32 x EDSFF E3.S Gen5 NVMe max 489.6 TB • Up to 8 x 2.5 inch SAS/SATA/NVMe max 122.88 TB • Up to 8 x 2.5-inch Universal max 245.6 TB • Up to 16 x 2.5 inch SAS/SATA max 61.44 TB • Up to 24 x 2.5 inch SAS/SATA max 92.16 TB • Up to 16 x 2.5 inch SAS/SATA + 8 x 2.5-inch NVME) max 92.16 TB • Up to 40 x EDSFF E3.S Gen5 NVMe max 614.4 TB • Up to 4 x EDSFF E3.S Gen5 NVMe max 61.2 TB on the rear |
| Storage controllers | • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB • Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i |
| Power Supply | • 800 W Platinum 100—240 VAC or 240 VDC • 1100 W Platinium 100—240 VAC or 240 VDC • 1500 W Titanium 100—240 VAC or 240 VDC • 1100 W Titanium 100—240 VAC or 240 VDC • 3200 W Titanium 200—240 VAC or 240 VDC • 800 W Titanium 100—240 VAC or 240 VDC • 3200 W 277 VAC and 336 HVDC Titanium* • 1400 W -48VDC 60mm* • 1500 W 277 VAC and 336 HVDC Titanium* • 2400 W Titanium 100—240 VAC or 240 VDC* • 1800 W HLAC Titanium 200—240 VAC or 240 VDC |
|
Dimensions and Weight |
• Height – 86.8 mm (3.42 inches) • Weight – 28.53 kg (62.89 pound) |
| From Factor | 2U Rack Server |
