G620 Fibre Channel Switch, Enterprise Data Center Core, High-Performance Network Foundation

Overview
Related Products

G620 Switch

Scale fast, accelerate data access, achieve operational efficiency

Product Feature

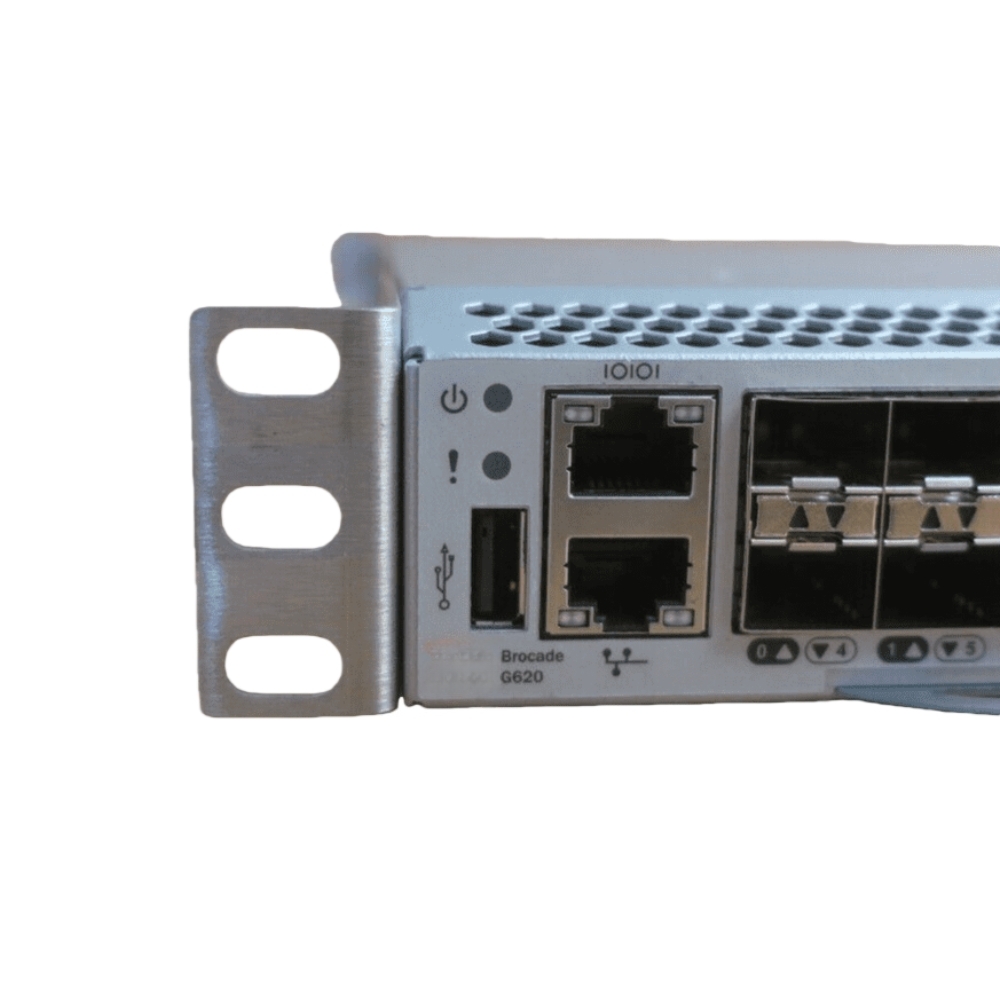

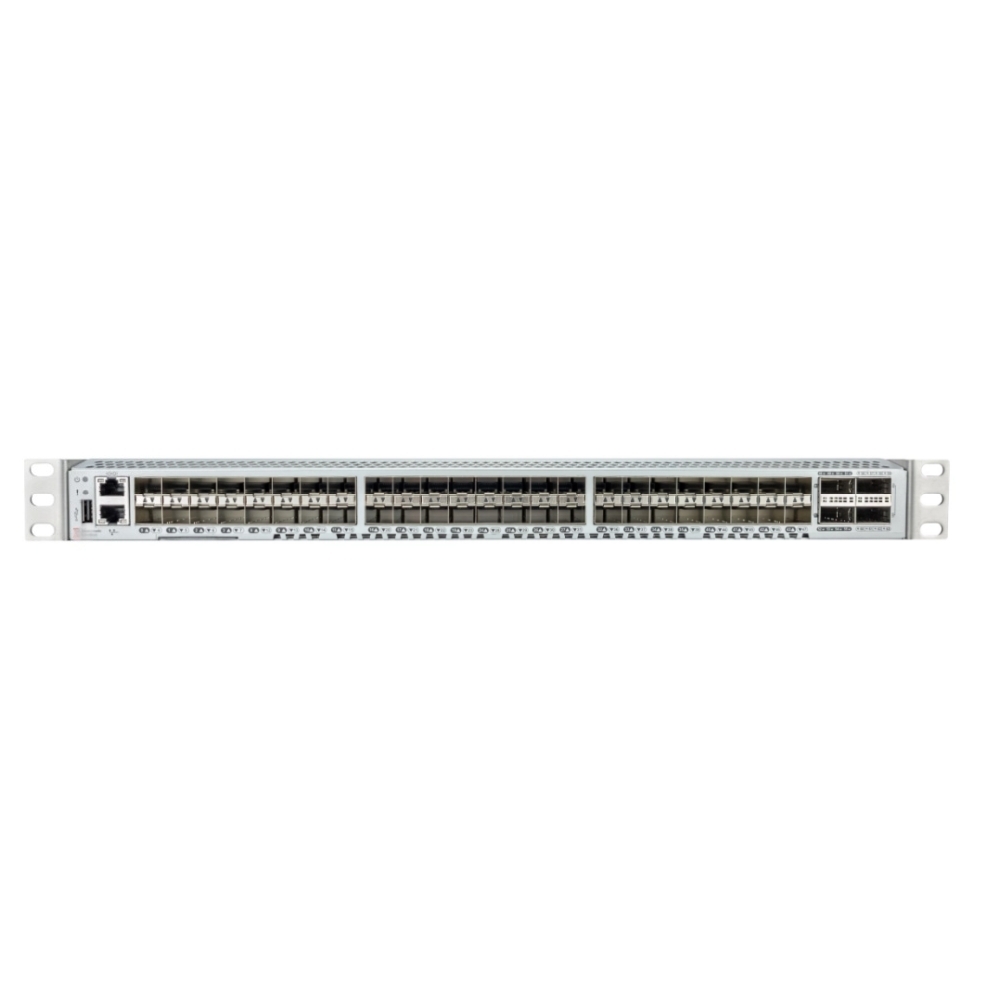

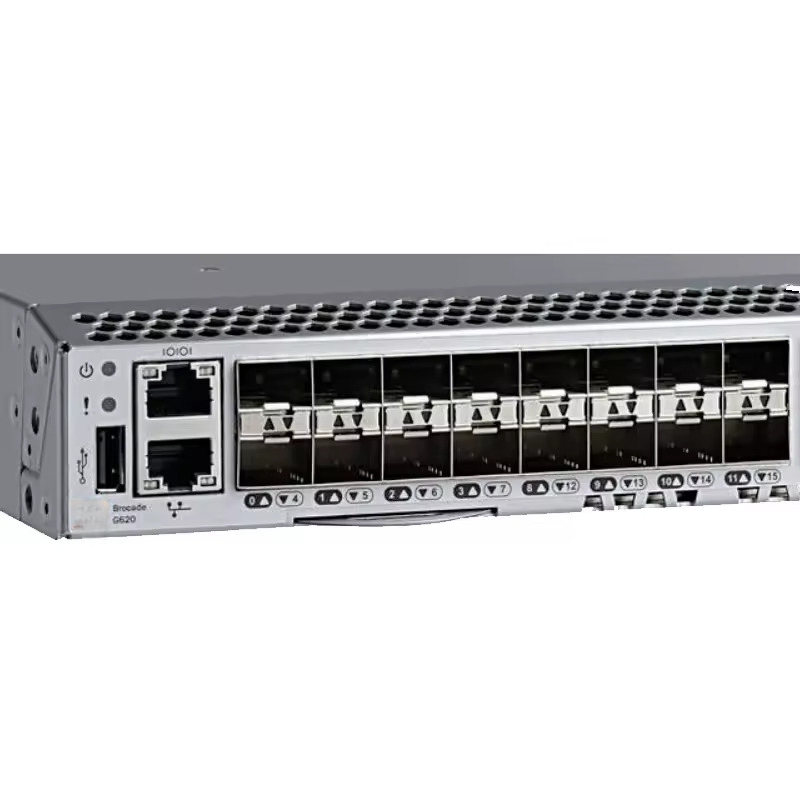

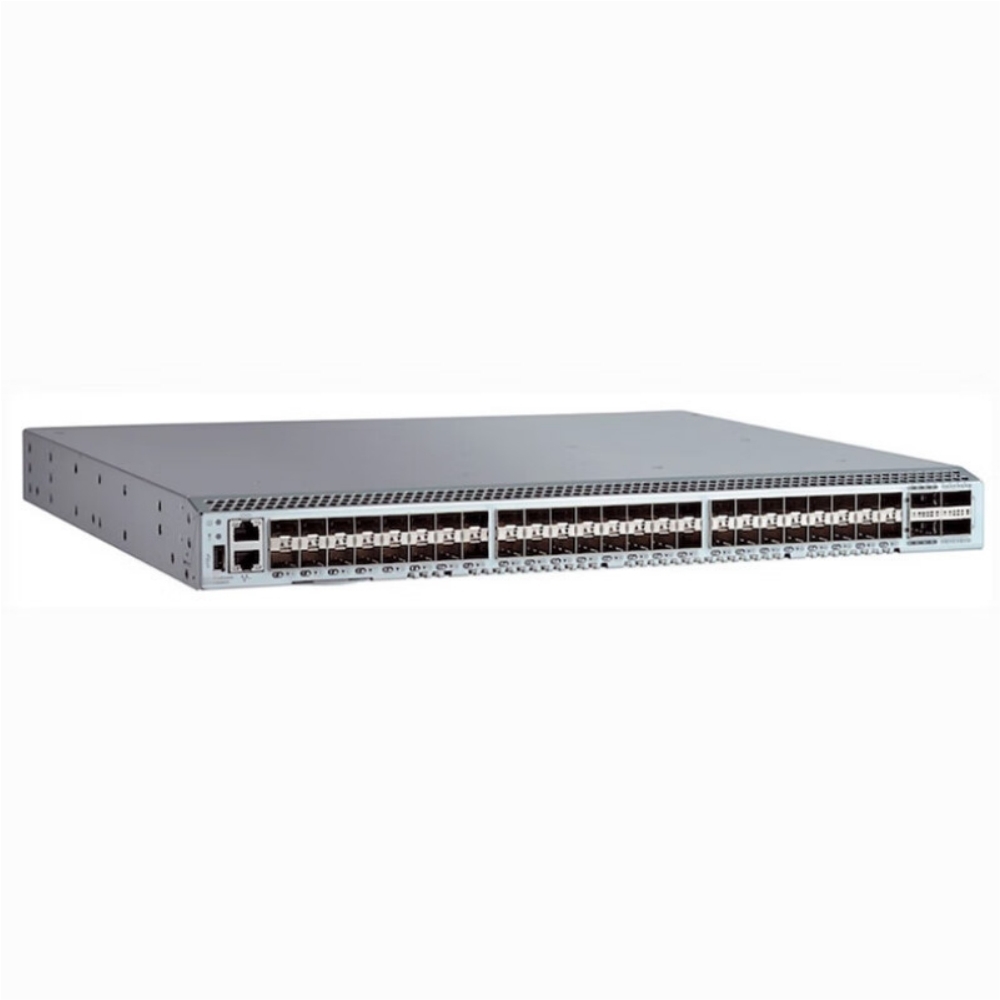

Take advantage of lightning-fast flash storage networking technology and adapt quickly to dynamic business demands with the Brocade G620 Switch. This powerful Gen 6 Fibre Channel switch shatters application performance barriers and simplifies scale-out network architectures—in an enviably small footprint. And with built-in instrumentation, you gain greater insight and control to reduce cost, management complexity, and risk.

Breakthrough performance: Get the performance you need to support critical business applications and the most from your investment in solid state storage technology.

Increased scalability: Reduce operating costs and management complexity by simplifying scale-out architectures—all in a 1U form factor.

Operational stability: Reduce risk with the industry’s first built-in metrics. Achieve greater control and operational insights to quickly identify issues and easily meet or crush SLAs.

Specification

Lifecycle	Active
Access Gateway	Supports
Bandwidth	2 Tb/s
Certified Maximum	6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Fibre Channel Performance	Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 10.53Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4/8/10/16/32G port speeds; 10 Gb/s optionally programmable to fixed port speed. Auto-sensing of 4×32/4×16/4×8/4×4G speeds on the QSFP ports with Brocade FOS v8.2.0
FICON Support	Supports
