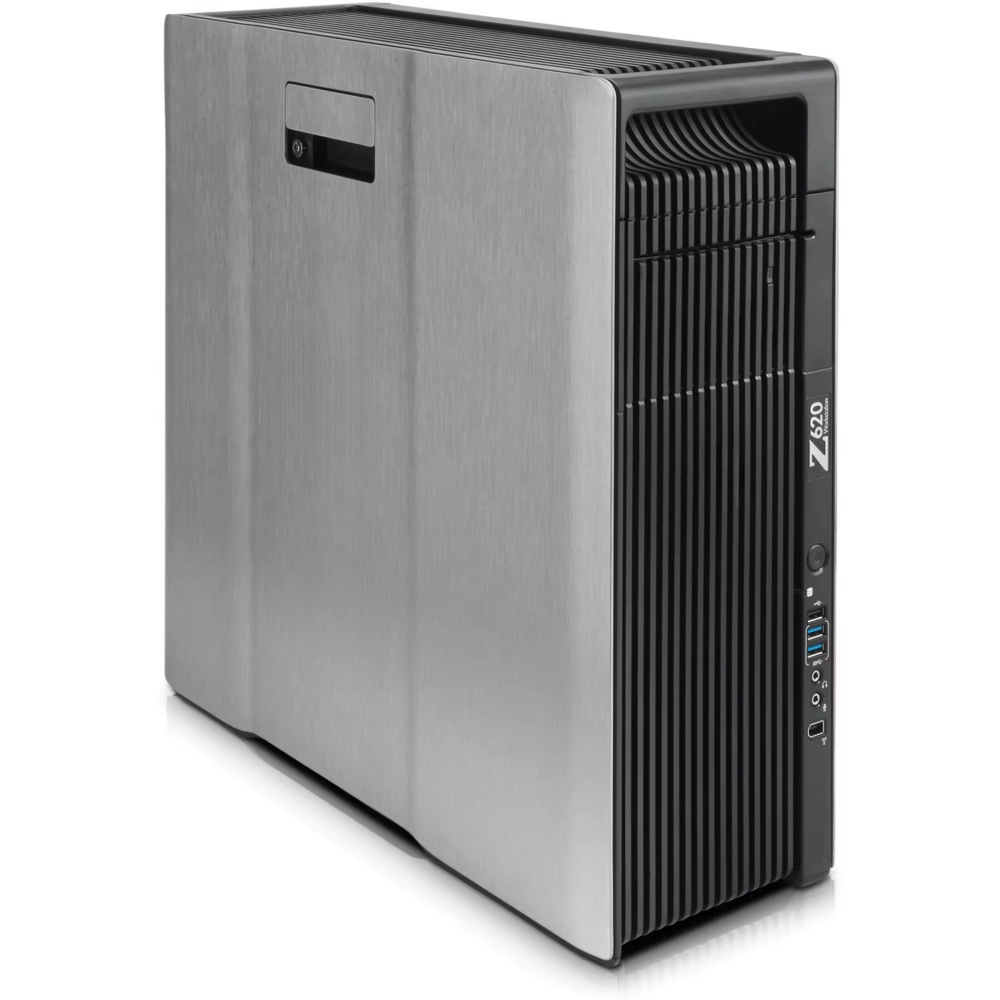

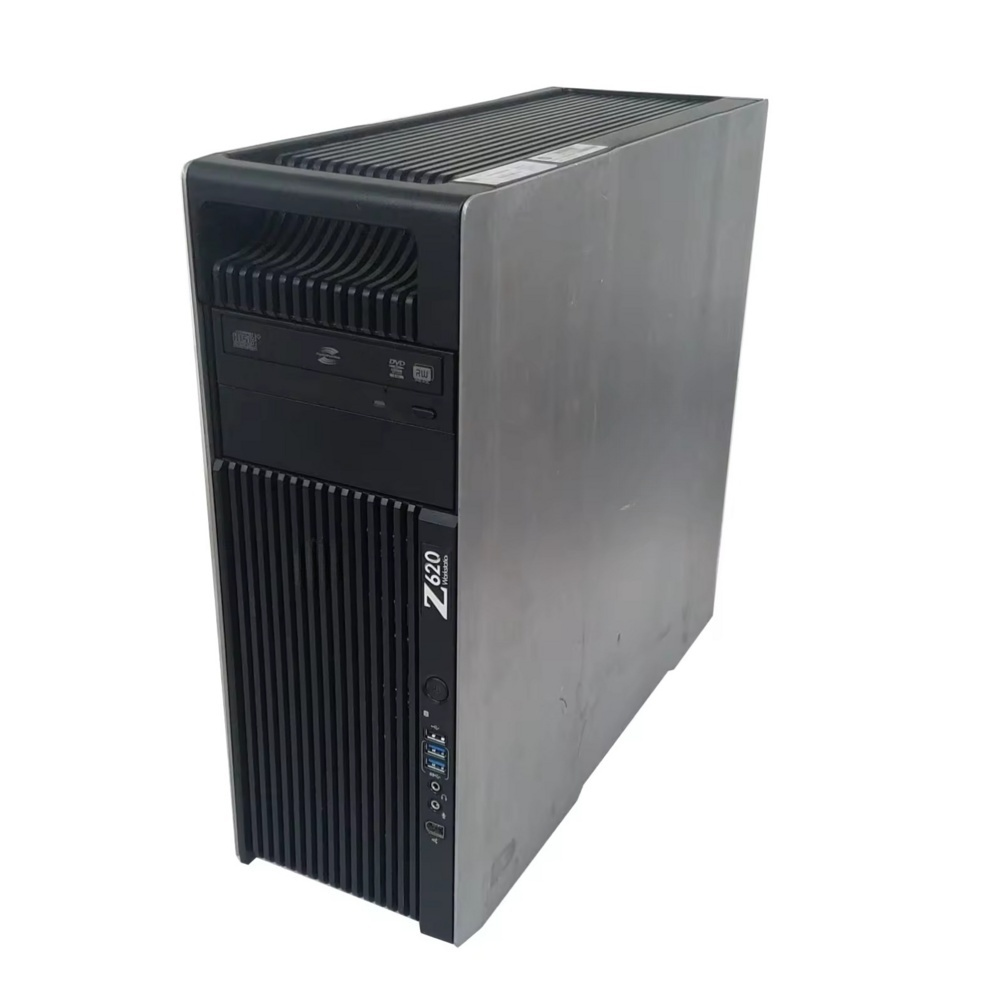

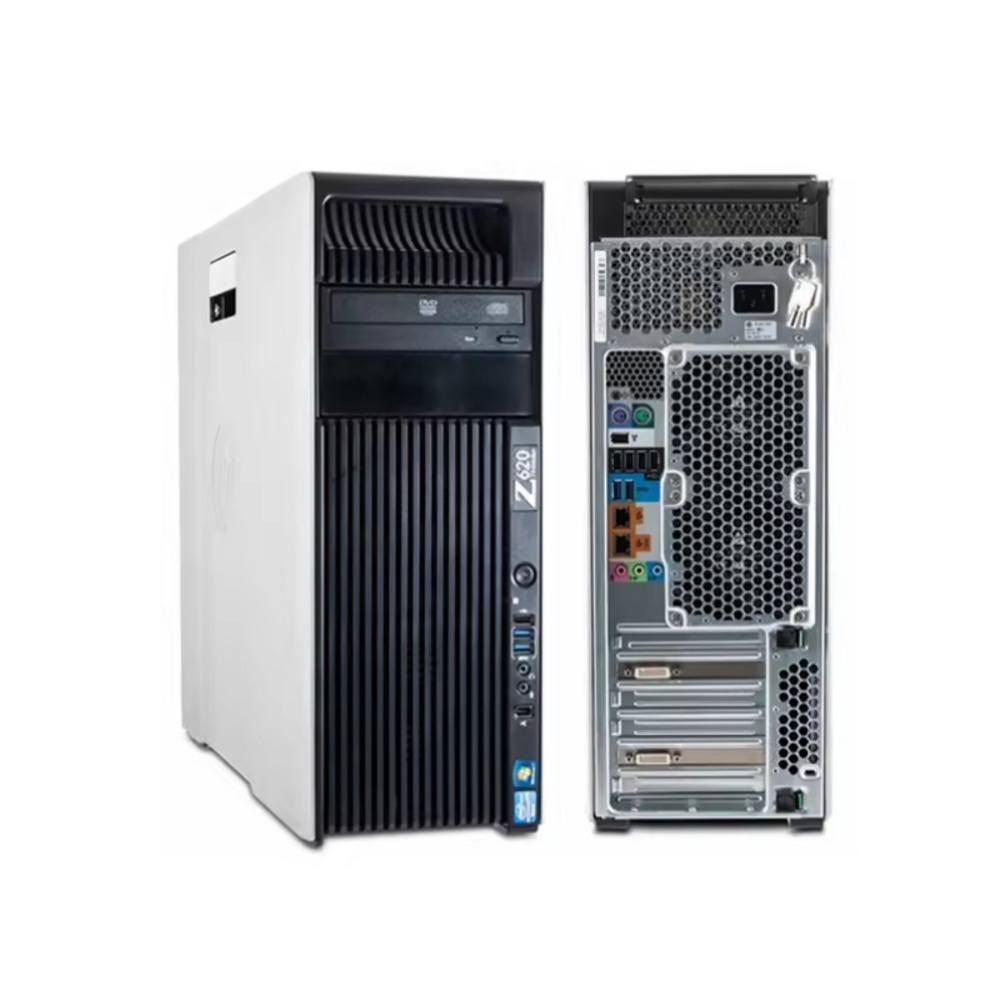

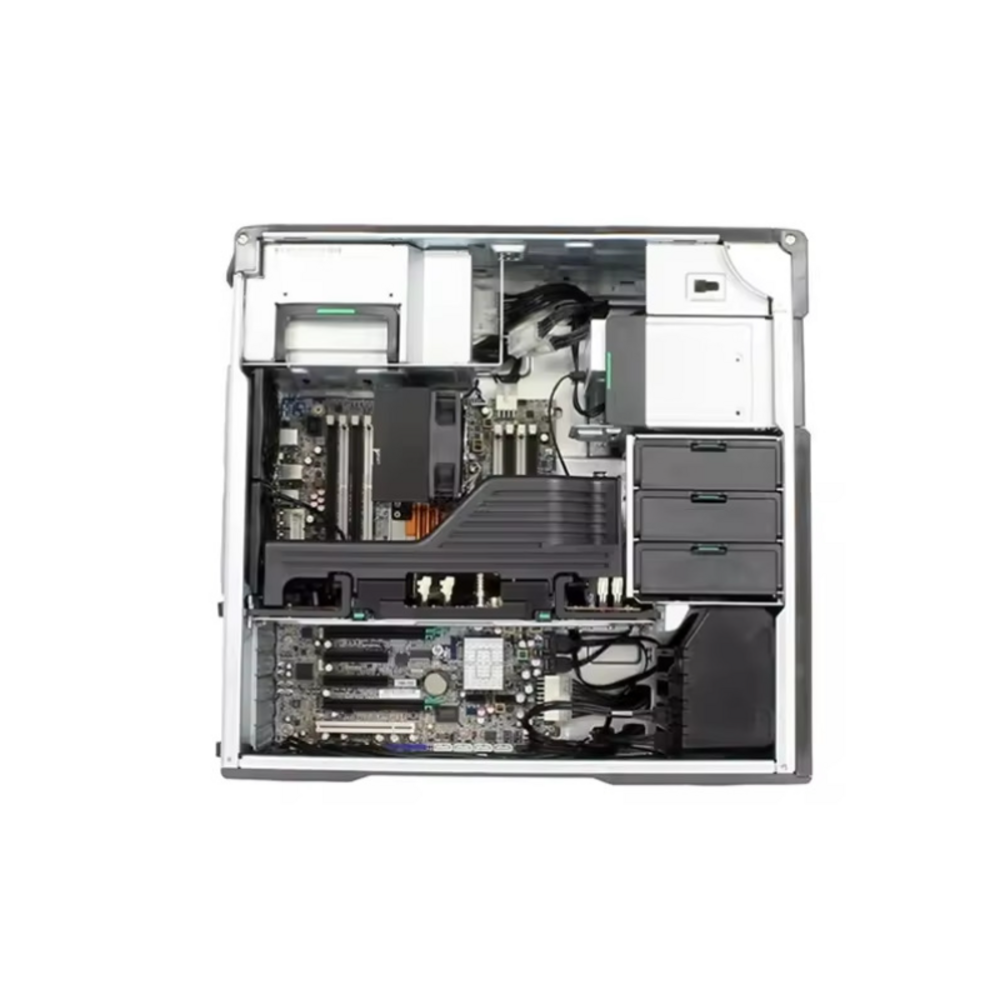

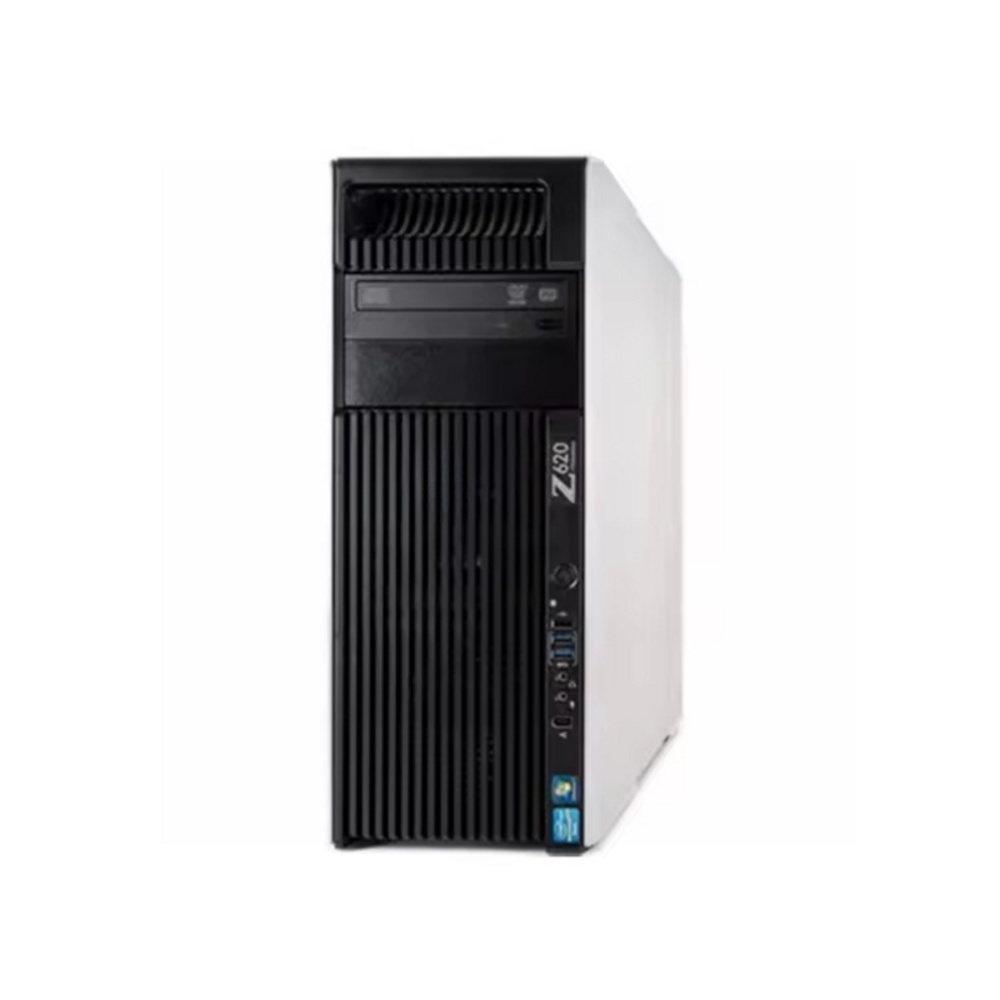

Z620 Workstation More versatile than ever before.
More versatile than ever before.
With up to 24 discrete processor cores, the HP Z620 Workstation packs a ton of computing and visualization power into a quiet, compact footprint. This dual-socket system helps you boost productivity with next-generation Intel Xeon processors and support for multiple displays.
The performance you demand.
Get massive system performance in a small footprint with the next evolution in system architecture, setting the standard for versatility with support for both Intel Xeon processor E5-2600 v2 and E5-1600 v2 families.Now with up to 24 cores, the HP Z620 powerhouse supports a full range of processors, to help you get more done every minute.Support up to 192 GB of the latest generation of system memory with 12 DIMM slots and integrated DDR3-1866 (Transfer rates up to 1866 MT/s) memory subsystem.Ideal for complex data sets and the demands of a 64-bit environment. Take advantage of an 800 W 90% efficient power supply perfect for high-end graphics. Connect in a flash with 4X USB 3.0 bandwidth on an optional highperformance Thunderbolt 2.0 port3 on the HP Z620.
- Overview
- Related Products
More versatile than ever before.
With up to 24 discrete processor cores, the HP Z620 Workstation packs a ton of computing and visualization power into a quiet, compact footprint. This dual-socket system helps you boost productivity with next-generation Intel Xeon processors and support for multiple displays.
The performance you demand.
Get massive system performance in a small footprint with the next evolution in system architecture, setting the standard for versatility with support for both Intel Xeon processor E5-2600 v2 and E5-1600 v2 families.Now with up to 24 cores, the HP Z620 powerhouse supports a full range of processors, to help you get more done every minute.Support up to 192 GB of the latest generation of system memory with 12 DIMM slots and integrated DDR3-1866 (Transfer rates up to 1866 MT/s) memory subsystem.Ideal for complex data sets and the demands of a 64-bit environment. Take advantage of an 800 W 90% efficient power supply perfect for high-end graphics. Connect in a flash with 4X USB 3.0 bandwidth on an optional highperformance Thunderbolt 2.0 port3 on the HP Z620.
Product parameter
| Processor | Intel Xeon Processor E5 Family |
| Drive Bays | 2 external 5.25-inch bays, 3 internal 3.5-inch bays, Note: Fourth HDD occupies one external bay |
| Chipset | Intel C602 Chipset |
| Memory | Up to 12 DIMM slots with 2 CPUs, up to 192 GB, 8-channel ECC DDR3-1866 (Transfer rates up to 1866 MT/s) |
| Storage | Up to (4) 3.5-inch 7200 rpm SATA drives: 500 GB, 1, 2, 3 TB, 12 TB max; Up to (4) 2.5-inch 10K rpm SAS drives: 300, 600, 900 GB, 1.2 TB, 4.8 TB max; Up to (4) 3.5-inch 15K rpm SAS drives: 300, 450, 600 GB, 2.4 TB max; Up to (4) 2.5-inch SATA solid state drives: 128, 180, 240, 256, 480, 512 GB, 1 TB, 4 TB max; Up to (1) 2.5-inch SATA self encrypting solid state boot drive (SED SSD): 256 GB,180 GB, (1 TB max); Up to (1) 2.5-inch SATA self-encrypting hard drive (SED HDD): 500 GB, 500 GB max; Up to (1) PCIe SSD Fusion ioFX 410 GB PCIe; Up to (2) PCIe SSD HP Z Turbo Drives 256 GB, 512 GB (1 TB max)**** Note: Fourth drive occupies one external 5.25-inch bay |
| Graphics | Professional 2D: NVIDIA NVS 310, NVIDIA NVS 315, NVIDIA NVS 510 Entry 3D: NVIDIA Quadro 410, NVIDIA Quadro K600, AMD FirePro V3900 Mid-range 3D: NVIDIA Quadro K2000 High-end 3D: NVIDIA Quadro K4000, AMD FireProTM W7000, NVIDIA Quadro K5000, NVIDIA Quadro K6000, NVIDIA Tesla K20c, NVIDIA Tesla K40, NVIDIA Quadro Sync (GPU) |
| Power Supply | 800 Watt 90% efficient tool-free power supply |
| Dimensions (H x W x D) | 17.5 x 6.75 x 18.3 in (44.45 x 17.15 x 46.48 cm) |
