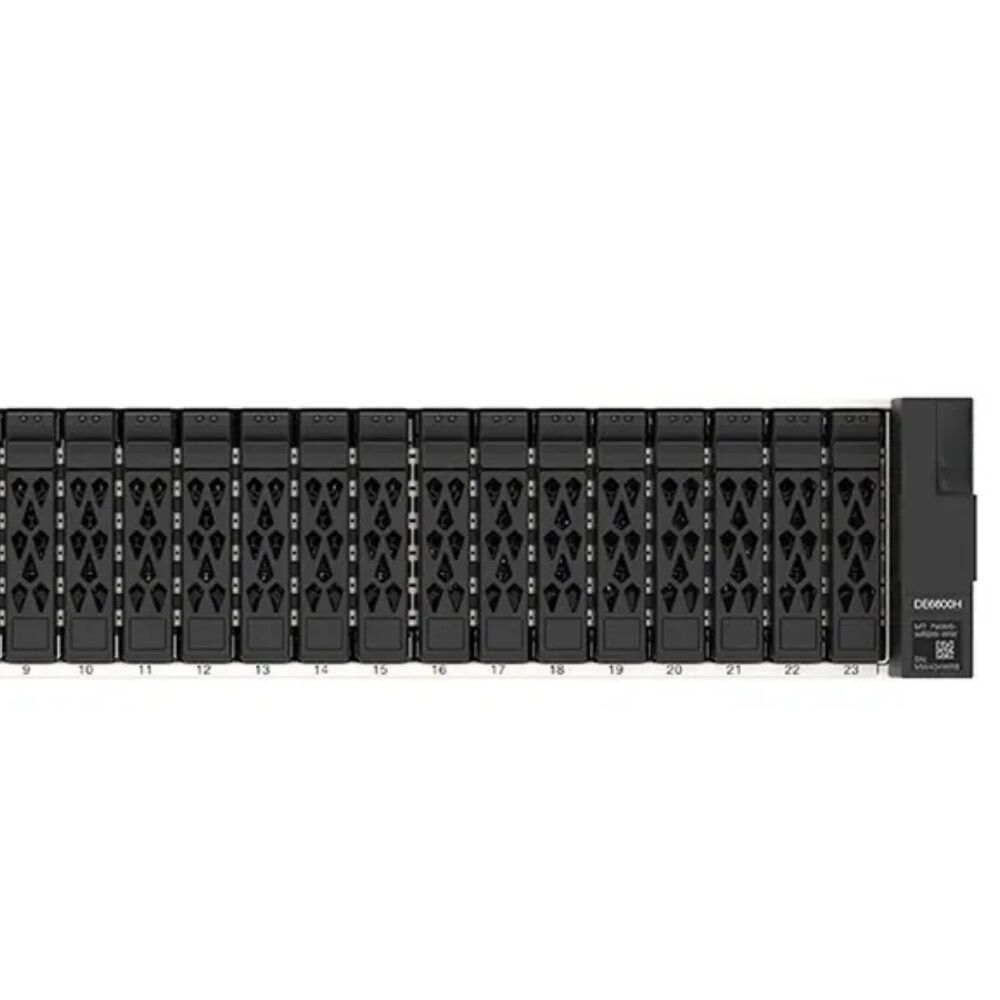

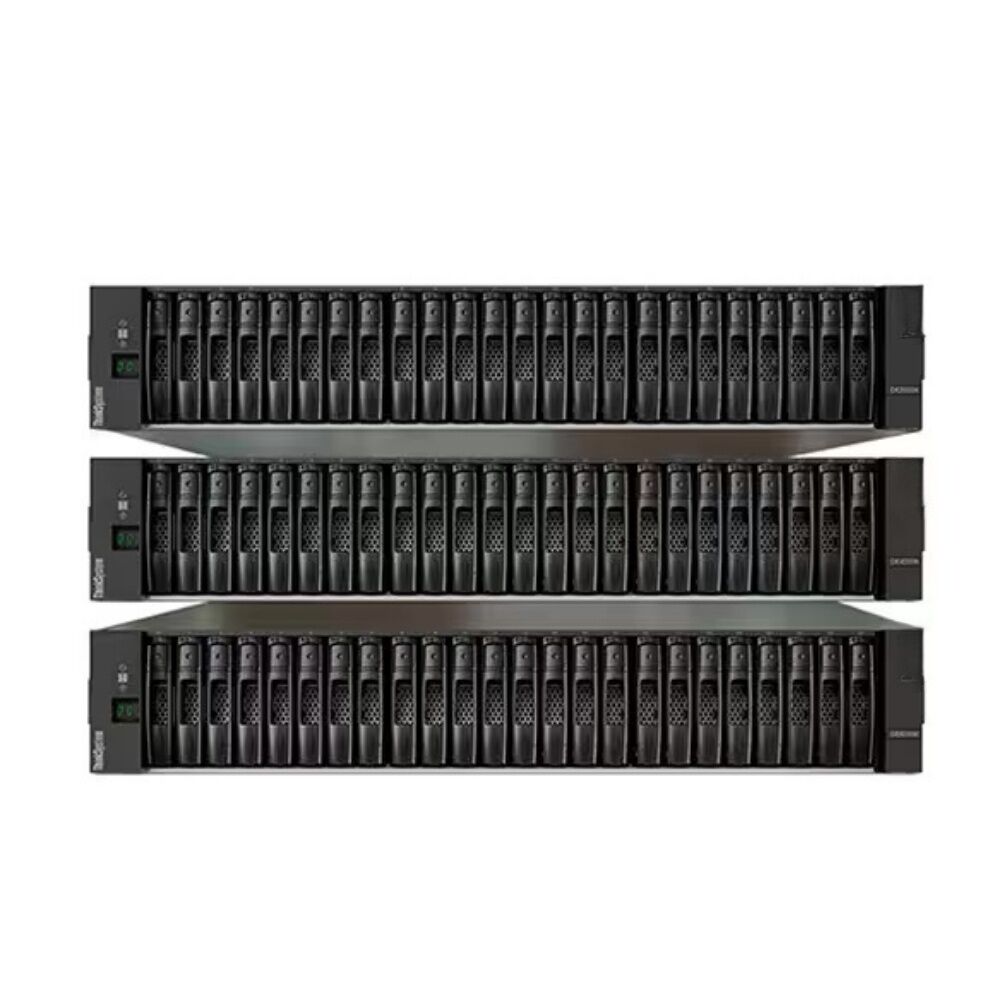

Performance ThinkSystem DE6600H Hybrid Flash Array
Scaling is easy, due to the modular design of ThinkSystem DE Series and the simple management tools provided. You can start working with your data in less than 10 minutes. Extensive configuration flexibility, custom performance tuning, and complete control over data placement enable administrators to maximize performance and ease of use.
- Overview
- Related Products
The ThinkSystem DE Series Hybrid Flash Array was engineered for workloads ranging from high-IOPS or bandwidth-intensive streaming applications to high-performance storage consolidation.
These systems are targeted at backup and recovery, high-performance computing markets, Big Data/analytics, and virtualization, yet they work equally well in general computing environments.
ThinkSystem DE Series is designed to achieve up to 99.9999% availability via fully redundant I/O paths, advanced data protection features, and extensive diagnostic capabilities.
It’s also highly secure, with robust data integrity that protects your critical business data as well as your customers’ sensitive personal information.
| From Factor | 2U/24 |
| Max Raw Capacity | 4.7PB (240 x 18TB NL-SAS) plus 367TB (24 x 15.3TB SSDs) |
| Maximum Drives | Supports up to a maximum of 120x SSDs (SAS and NVMe) or 240 NL-SAS HDDs |
| Maximum Expansion | Up to seven 2U12, 2U24, or 4U60 SAS drive shelves |
| IOPS | 2,000,000 IOPS |
| System Memory | 32GB or 128GB |
| Optional I/O Ports (per system) | 8x 100Gb NVMe/IB, NVMe/RoCe 8x 100Gb iSER/IB, SRP/IB 16x 32Gb NVMe/FC 16x 32Gb SCSI FC 16x 25Gb iSCSI |
