EonStor GS 4016G3 High Performance HDD Unified Storage For Enterprises
High Performance and Scalability
• Up to 600K IOPS
• Up to 8GB/s read and 5.8GB/s write in throughput
• Scale-out and scale-up expansions to easily increase performance and capacity
High-Density Design

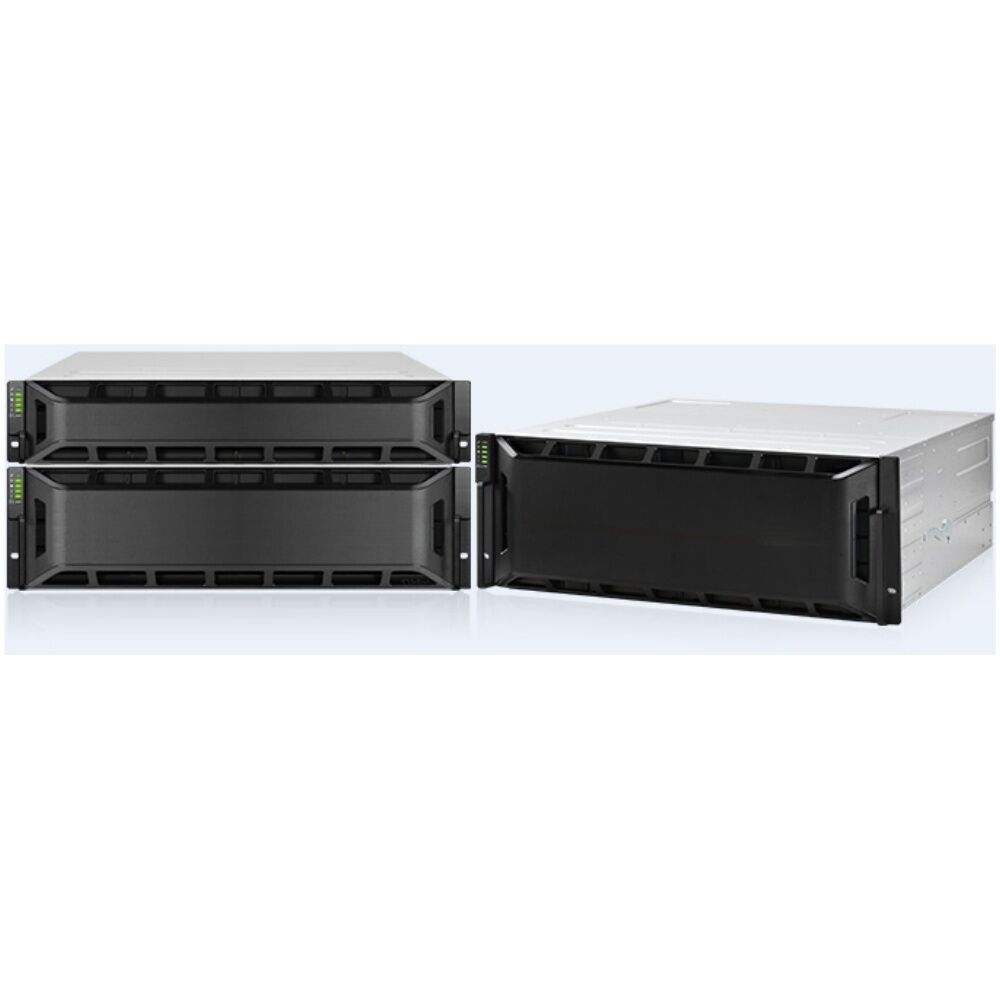

• Reduce hardware footprint with 4U 40/60-bay models
Flexible Interface Options
• Modular host boards with FC, SAS, and iSCSI protocols for host connection
- Overview
- Related Products
EonStor GSe SAS HDD storage, available from entry-level to high-end models, is a unified storage series that incorporates full-featured, enterprise-grade data services with RAID protection to deliver high performance and scalability without sacrificing affordability.
With the feature of cloud integration, EonStor GSe allows SMBs and SMEs to integrate and expand their local SAN/NAS storage architecture into cloud services in an easy and costeffectively manner.
Product parameter
| From Factor | 3U 16-bay |
| Controller | Dual redundant or single upgradable to dual redundant |
| Cache Backup Technology | Super capacitor + flash module |
| Cache Memory | Single controller: Default DDR4 8GB, up to 192GB Dual redundant controllers: Default DDR4 16GB, up to 384GB |
| Host Board Options | 16Gb/s FC x 4 32Gb/s FC x 2 32Gb/s FC x 4 10GbE (SFP+) x 2 25GbE (SFP28) x 2 25GbE (SFP28) x 4 100GbE (QSFP28) x 1, RDMA 100GbE (QSFP28) x 2, RDMA 12Gb/s SAS x 2 |
| Supported Drives | 2.5" SAS SSD 2.5" 12Gb/s SAS 10,000 RPM HDD 3.5" 12Gb/s NL-SAS 7,200 RPM HDD 2.5" U.2 NVMe SSD (for U.2 SSD cache models; must be purchased from Infortrend) |
| Dimensions (W x H x D) | 449 x 130 x 509.8 mm |
| Package Dimensions (W x H x D) | 588 x 283 x 780 mm |
