EDS-4008 L2 Managed Industrial Ethernet Switch - 8-Port 100M/1000M Combo Heavy Duty for Power & Transit
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and RSTP/STP for network redundancy
Support for IEEE 802.3bt PoE for up to 90 W output per port
Wide range of power input options for flexible deployment
Compact and flexible housing design to fit into confined spaces
Supports MXstudio for easy, visualized industrial network management
IEC 62443-4-2 Security Level 2 certified
- Overview
- Related Products

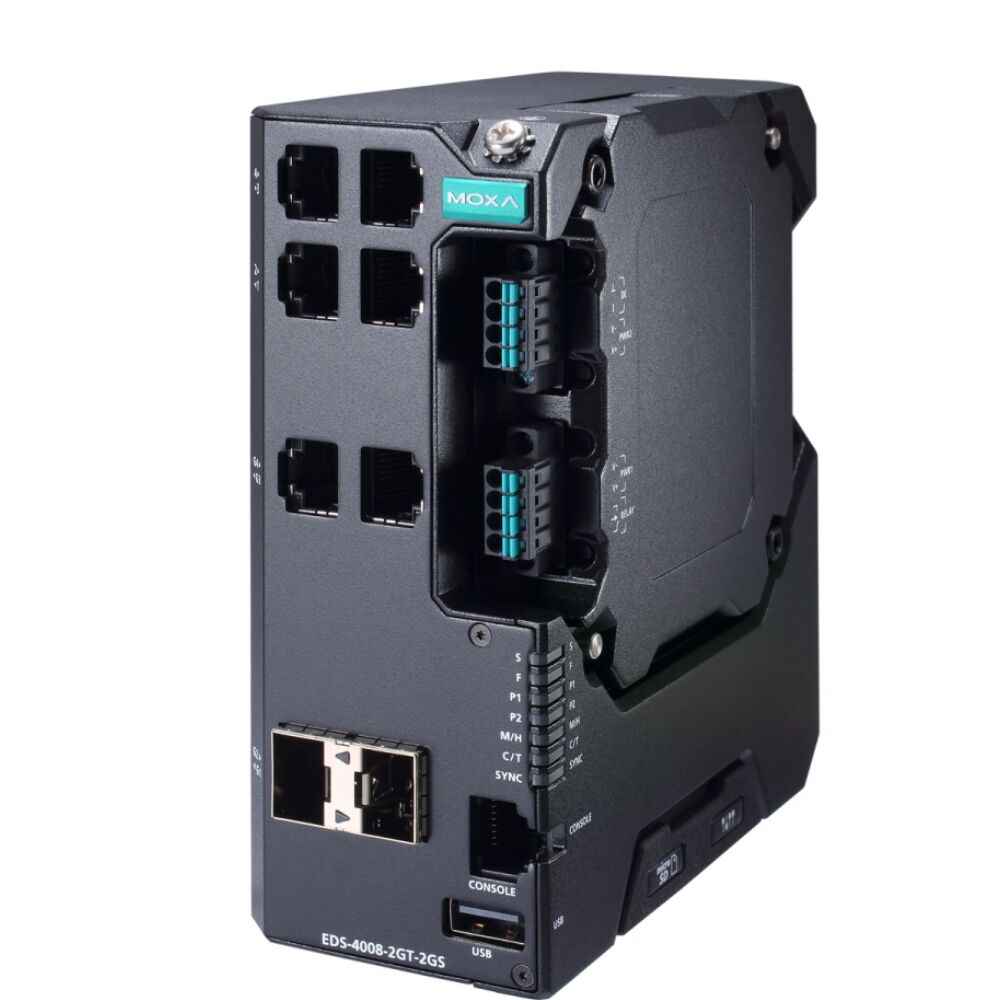

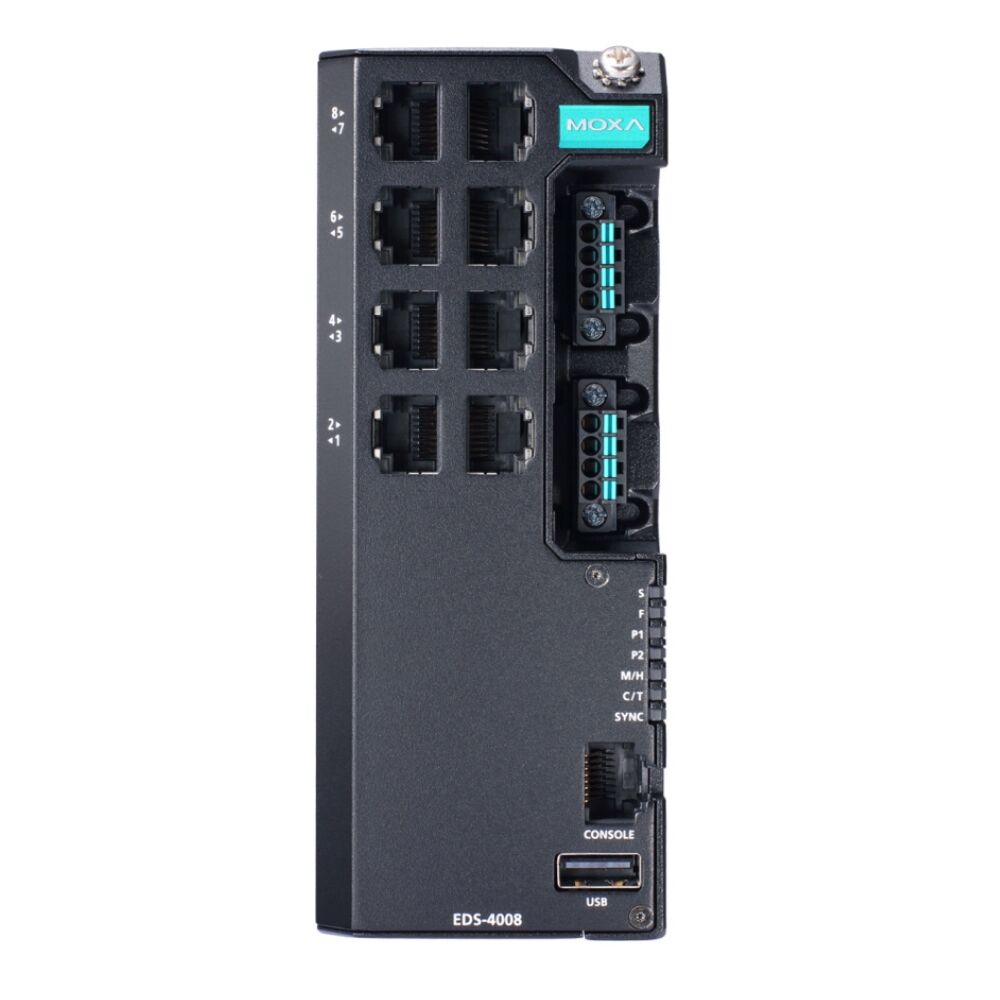

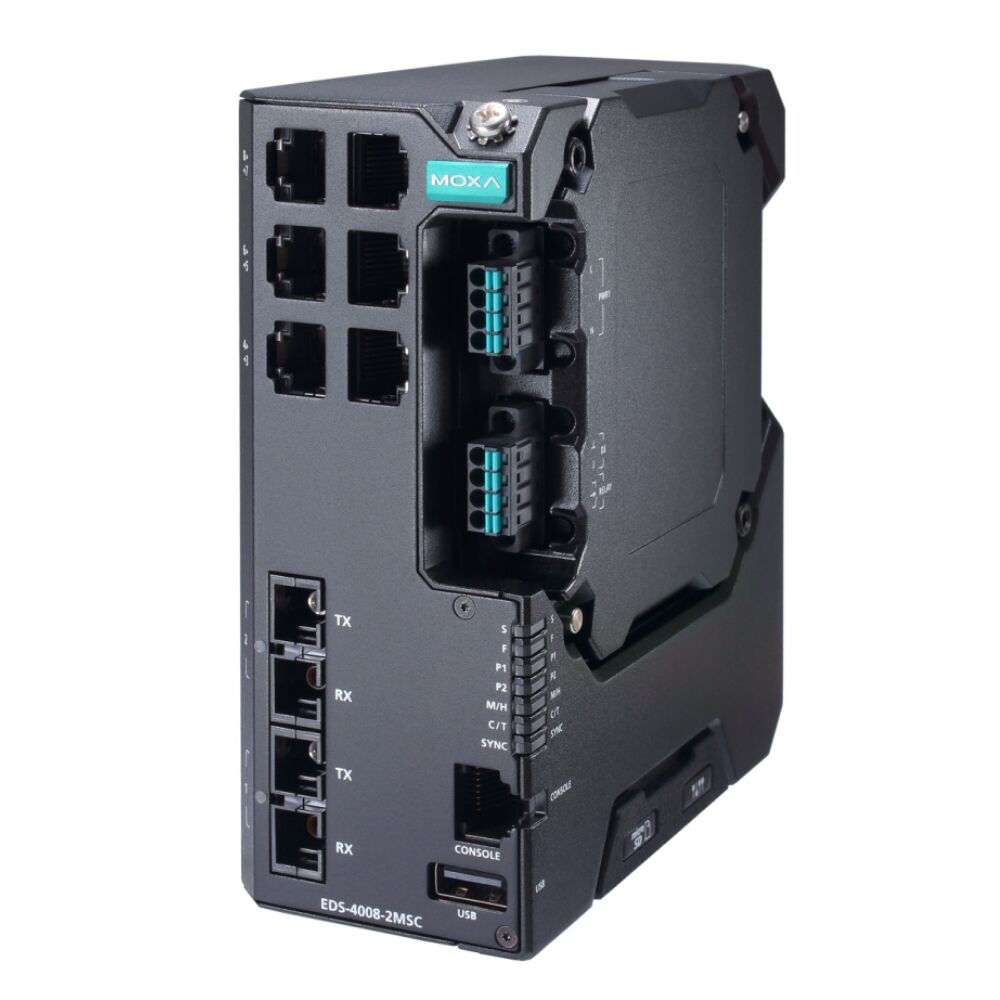

MOXA EDS-4008 Switch
Product Feature
The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4008 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
Specification
| Interface Type | PoE |
| Dimensions | 9 x 7 x 4 inches |
| 10/100BaseT(X) Ports (RJ45 Connector) | 4-8 |
